REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION CMP Part No.
1. Switch (On/Off) 0808-113-01-K
2. Knob, Thermostat & Timer 0595-061
3. Timer 0849-009-K
4. Thermometer 5238-031
5. Thermostat, Cook 0848-082
6. Thermostat, Hold 0848-083
7. Pilot Light, Yellow 0766-096
8. Pilot Light, Green 0766-097
9. Switch, Fan 0848-034
10. Relay 0857-102
11. Contactor 0857-131
12. Terminal Block (Input) 0852-109
13. Terminal Block 0852-091
14. Toggle Switch 0808-020
15. Vent Fan 0769-174
16. Fan Guard 0769-167
17. Heater Kit, 208V, 195 Watt 0811-291-K
Heater Kit, 240V, 1000 Watt 0811-290-K
18. Door Latch Kit 1006-122-01-K
19. Latch Strike 1006-122-02-K
20. Door Assembly 1221-563-K
21. Door Gasket 0861-267
22. Door Hinge 0519-074-K
ITEM DESCRIPTION CMP Part No.
23. Casters 0569-306-K
24. Casters w/brake 0569-306-BK
25 Pan Slides 0692-200
26. Drip Pan 1017-099
27. Fuses, 3 Amp. (for units mfr’d
before 7/08)
0807-058
Fuse Holder (for units mfr’d
before 7/08) 0807-048
Fuses, 3 Amp. (for units mfr’d
after 7/08)
Fuse Holder (for units mfr’d
after 7/08)
28. Hi-Limit 0848-033
29. Drip Tray 1017-100
Wire Shelf 1170-005
Power Cord (3000 Watts, 1-PH) 0810-173-01-K
Power Cord (6000 Watts, 1-PH) 0810-163-01-K
Power Cord (6000 Watts, 3-PH) 0810-164-01-K
1
2
3
5
6
9
4
10
7
8

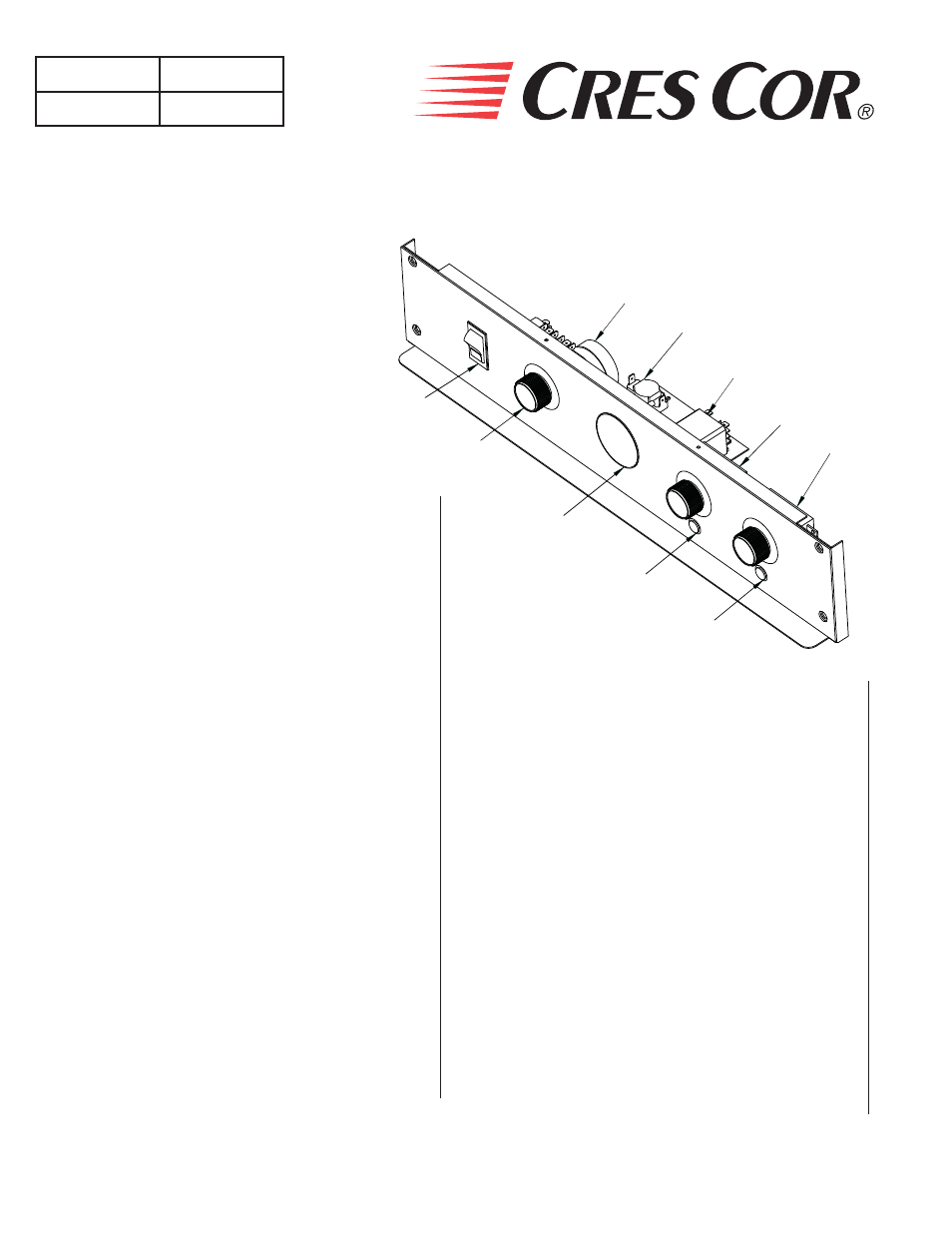

FRONT CONTROL PANEL
Upper & Lower Ovens
