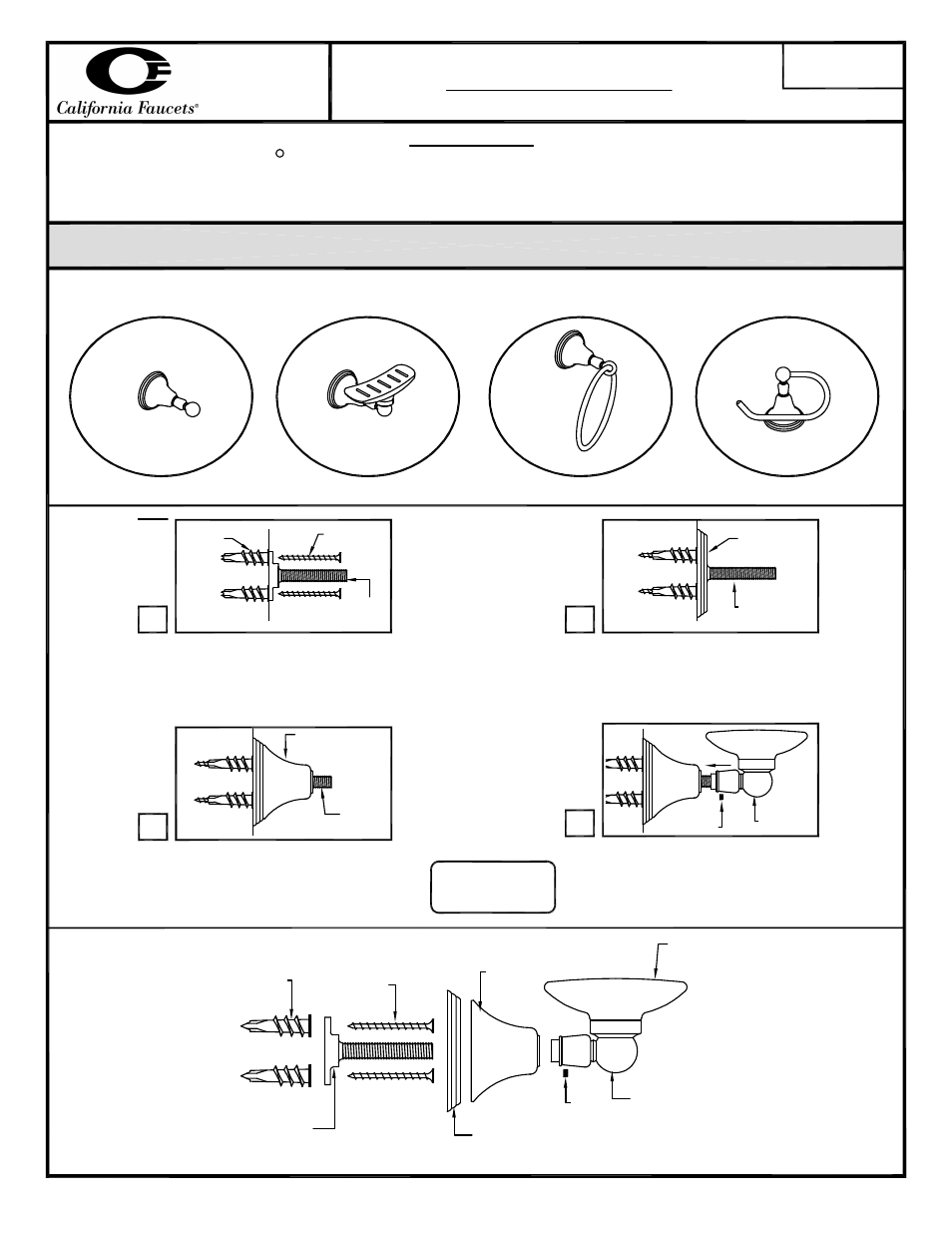

INSTALLATION
INSTRUCTIONS
Place base ring (required on certain
models) against wall, over the mounting
bracket. Install mounting bracket to wall with
screws (supplied) and anchors
(if applicable).
Set post over the wall bracket,
inserting through escutcheon.
1 2
4
ACCESSORIES
Single Post Items
Place escutcheon against wall,
over the mounting bracket.
3
Robe Hook Towel Ring
Fig. 1
Tighten set screw with allen
key (supplied).
Fig. 5 Fig. 6
Fig. 7 Fig. 8
Fig. 9
Wall
Anchor
Screw
Mounting
Bracket
Base Ring
(if applicable)
Escutcheon
Post Set
Screw
Screw
Wall
Anchor
Mounting
Bracket Mounting
Bracket
Base Ring
(if applicable)
Escutcheon
Post
Fig. 3
Soap Dish
Fig. 2
Soap Dish
REMINDER:
Please retain allen key as
posts may require periodic
tightening with normal use.
Set Screw
Mounting
Bracket
IMPORTANT
All California Faucets products are engineered to provide quality performance provided they
are installed and operated properly. To fully enjoy the comfort, safety, and reliability of your new
Accessories, please follow the instructions below.
Tel: 714-891-7797
Fax: 714-891-2478
Toll Free: 800-822-8855
www.calfaucets.com
R
California Faucets reserves the right to make modification and specification changes at any time.
Please visit www.calfaucets.com for most current technical data.
Paper/Towel Holder
Fig. 4
Ref. ACC-P1-INSTL (V 01) 06/28/06 P1
