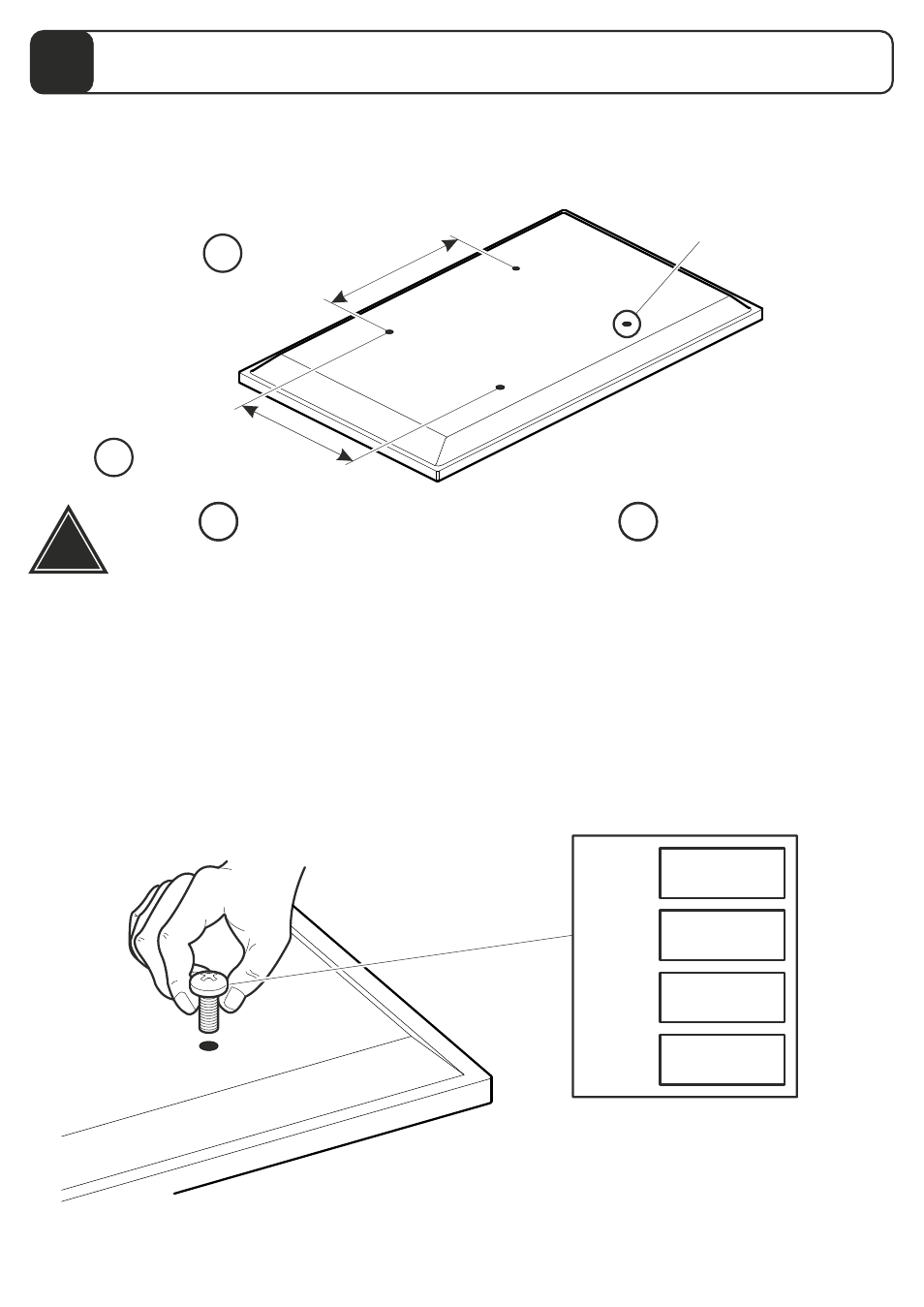

Measure the TV fixing holes Width and Height
If width X is greater than 400mm or height Y greater than 400mm
STOP installation now and contact the customer help line
!
1
You are provided with 4 diameters of TV fixing screws, M4, M5 M6 and
M8. Determine the screw diameter that fits and remember for step 3. ,
TV Fixing Holes
75 - 400mm
75 - 400mm
X
Y
M8 = U
13-
U
16
M6 =
M5 =
M4 =
U
9-
U
12
U
5-
U
8
U
1-
U
4
