F
2, 6 ,10, 14

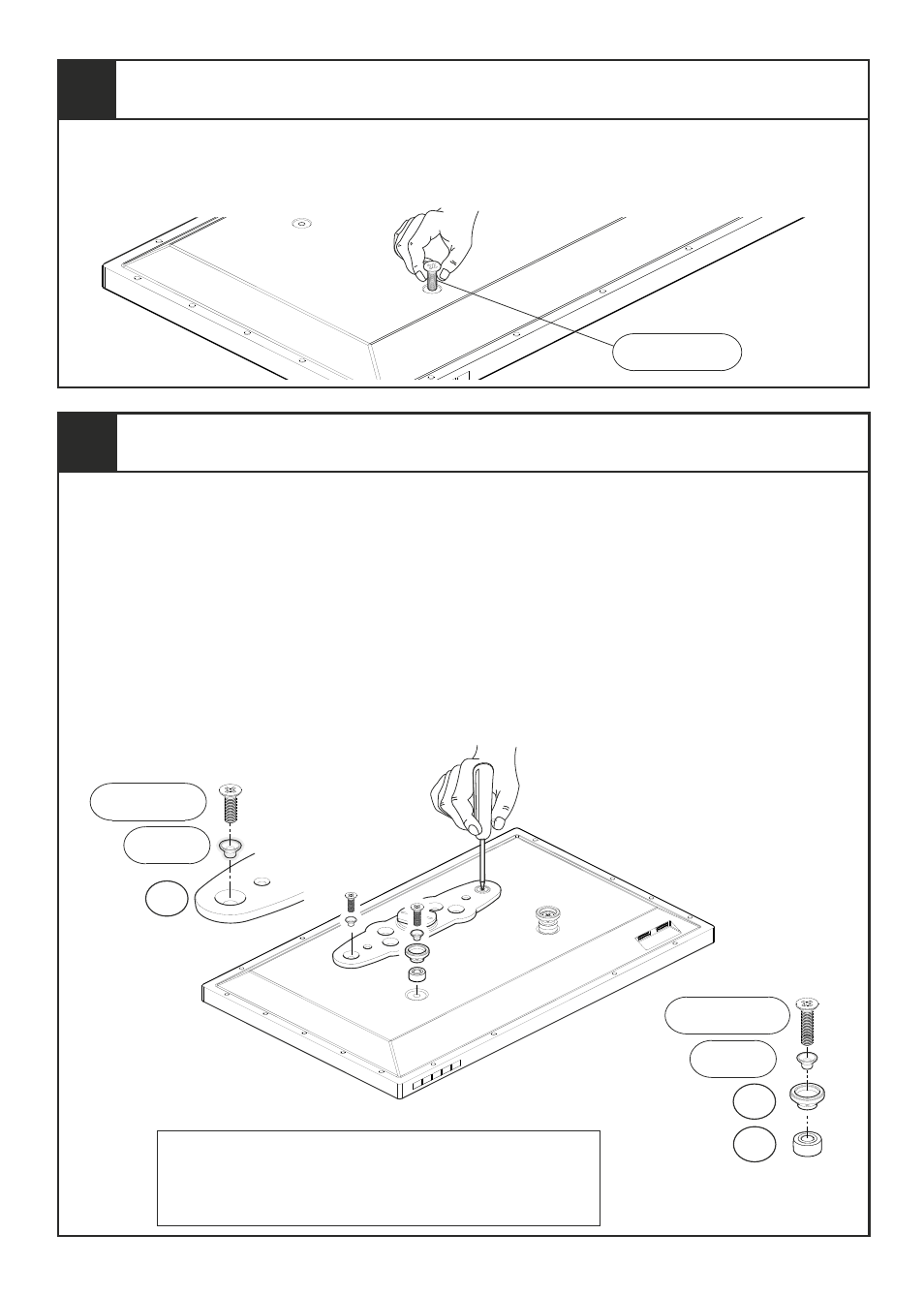

3 Determine Correct TV Screw Size
Choose from the TV Fixings selection. You need to determine which length and diameter of screws
fits your TV. To determine the correct screw diameter, try screwing (F
2
), (F
6
), (F
10
) & (F
14
) into one
of the fixing holes on the back of the screen until you find the one that fits. Note the thread size and
ensure you use the appropriate diameter screws.
4 Fit Screen Hangers To TV
Once you have established which screws you need for your TV you can attach the Adaptor (B)
and Stand-offs (C) to the back of your TV.
Typical recommended examples shown are for fixings with the TV spaced 20mm from the wall.
The TV Mount can position your TV between 20mm and 40mm from the wall. For alternative
configurations see sections 9.
You might need to use spacers to increase the clearance of your TV from the wall in order to avoid
cables coming out of your TV and improve access and ventilation to the back of your TV (spacers
(D1) allow you to have a gap of 30mm or 40mm, see section 9).
In certain circumstances it may be necessary to use red spacer ( ) as either a replacement or
addition to spacer ( ), for more information please see section 9.
If your TV fixing centres don’t fit, STOP installation and contact the customer services helpline.
D2
D1
If using screws use Adapter (E
1
) (F
1
) & (F
2
)
If using screws (F
5
) & (F
6
) use Adapter (E
2
)
If using screws (F
9
) & (F
10
) use Adapter (E
3
)
If using screws (F
13
) & (F
14
) no Adapter required
*
TV must be parallel to wall. Use spacers / stand-offs as shown.
*
C
Bottom Fixings
E
1, 2, 3
F
2, 6 ,10, 14
D
1
B
E
1, 2, 3
*
F
1, 5 ,9, 13
Top Fixings
