USER MANUAL
MiBass 2.0
USER MANUAL
MiBass 2.0

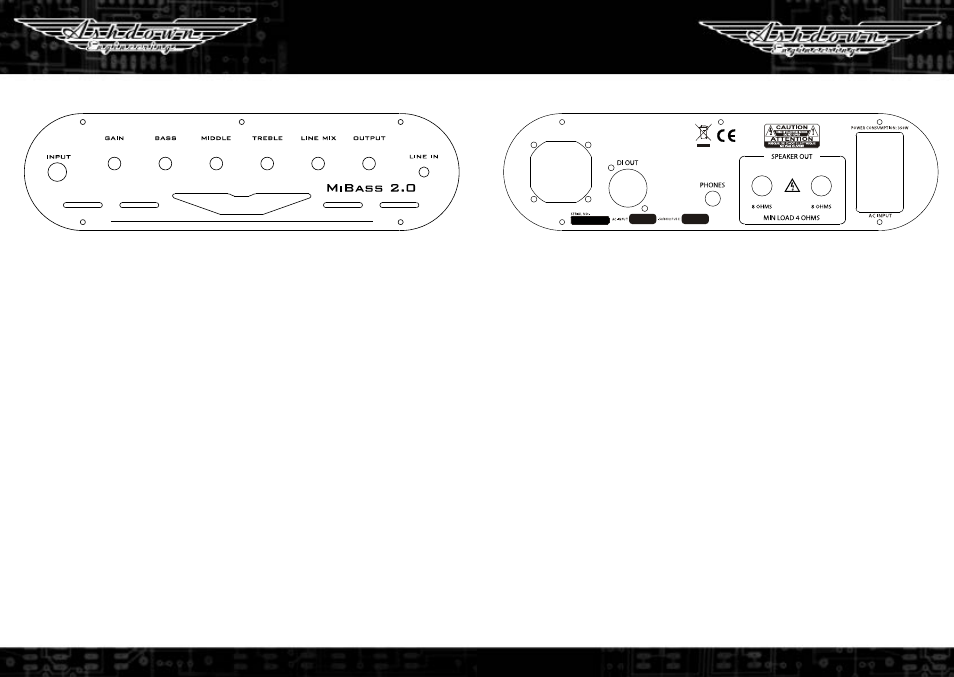

FRONT PANEL
LINE IN
A single balanced line input is provided for play along practice. Used in conjunction with the
Headphones socket for silent practice. Also see, MIX.
LINE MIX
Set the level of your Backing Track by using the ‘MIX’ Rotary control provided.
OUTPUT
Use the output level control to adjust the playing volume of the amplifier.
E.Q.
This passive EQ has bass, middle and treble tone controls.
GAIN
This adds tube emulated overdrive as a tube amp would when adding gain. From slight grit to
full on overdrive.
INPUT
A single input jack socket is Provided for your instrument. This is a high impedance input
designed to perfectly match the impedance of the pick-ups on a passive bass. It also has
sufficient headroom available to allow active basses to be used. Use the input gain control to
adjust for the sensitivity of your instrument.
REAR PANEL
HEADPHONES
A headphone jack socket is provided to allow stereo headphones to be plugged into the
amplifier for silent practice. This cuts out the main speaker when a jack plug is inserted.
DIRECT INJECT (D.I.)
A balanced D.I. Is provided on the rear panel XLR socket. This provides a post E.Q. Post
effects signal. The output signal from this XLR socket is set to a level and impedance suitable
for connecting directly into a balanced microphone input of a mixing desk for either direct
injection into the pa system or for recording.
FUSED MAINS INLET SOCKET
This is for connection of the unit to your countries mains power supply. Please ensure that
the type and rating of mains fuse marked on the rear panel is used when this is replaced.
ON/OFF MAINS SWITCH - Using the mains cable supplied the amplifier may be connected
the to the correct voltage mains supply , Once this is done turn the power to the MiBass 2.0
on by using the rear panel ON/OFF switch. POWER ON is indicated by illumination of the
BLUE LINE Logo on the front of the amp.
SPEAKER OUTPUT
Two SPEAKER OUTPUTS are provided on SPEAKON/JACK connection sockets that are
able to handle the high powers produced by these amplifiers.
