4.4

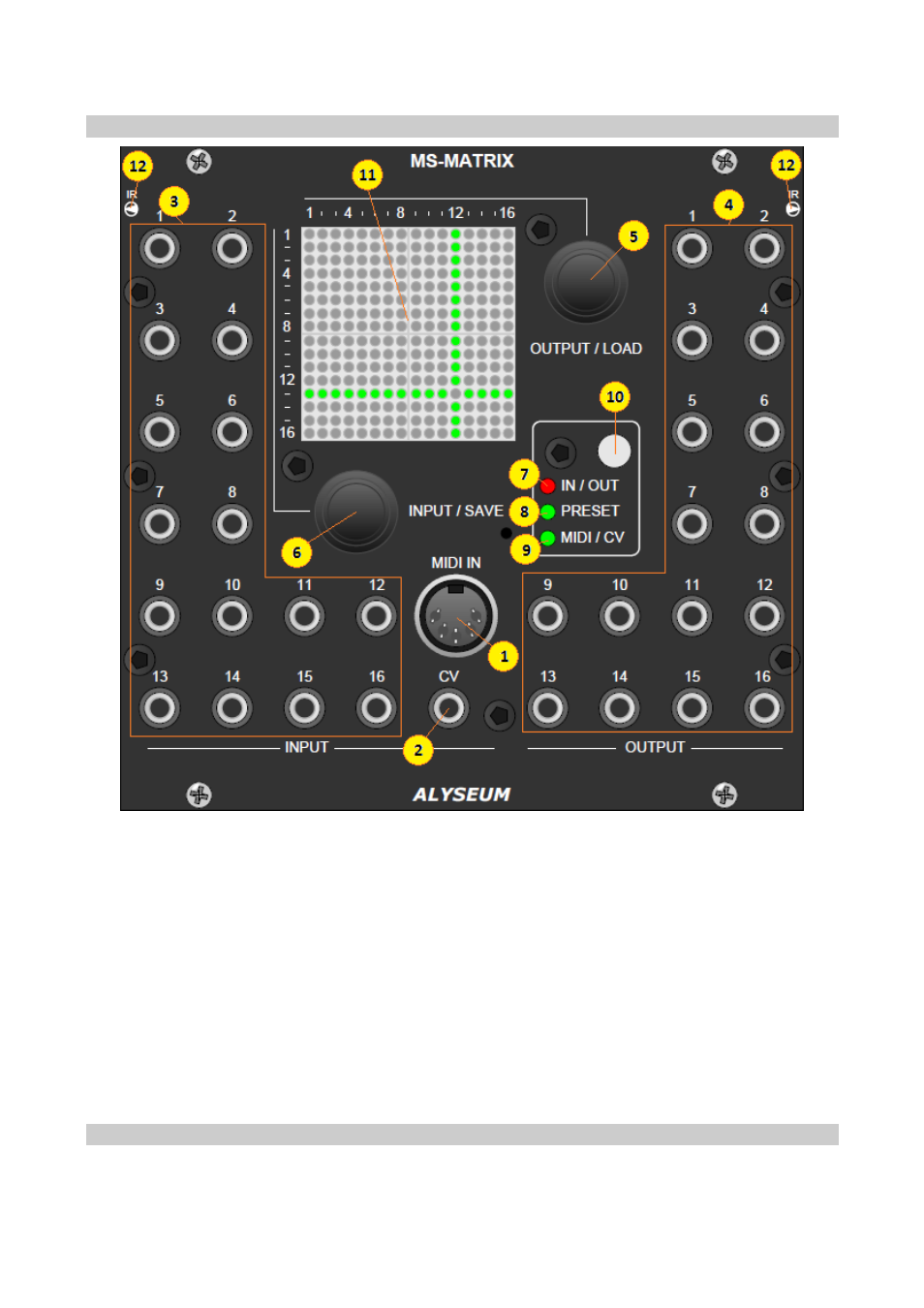

Front Panel
1.
MIDI IN port
:
The MIDI input for Preset selection via MIDI devices (DIN5)
2.
CV jack plug
:
CV input for Preset selection (3,5 mm jack)
3.
INPUT 1 – 16 jack plug
:
The sixteen inputs of the matrix (3,5 mm jack)
4.
OUTPUT 1 – 16 jack plug:
The sixteen outputs of the matrix (3,5 mm jack)
5.
OUTPUT/LOAD push encoder:
Rotary encoder with momentary push button
6.
INPUT/SAVE push encoder:
Rotary encoder with momentary push button
7.
IN/OUT LED (red):
When turned On it indicates that IN/OUT Mode is engaged
8.
PRESET LED (green):
When turned On it indicates that Preset Mode is engaged
9.
MIDI/CV LED (green):
When turned On it indicates that MIDI/CV Mode is engaged
10. Push Button:
Scrolls through the different Modes
11. Graphical LED display (green):
A LED array indicates the current connections of the matrix
12. IR LED emitter:
Transmits data to the MS-QIA and MS-QOA expanders
4.5 Rear
Panel
13. Ribbon cable connection for the power supply
