PARTS IDENTIFICATION

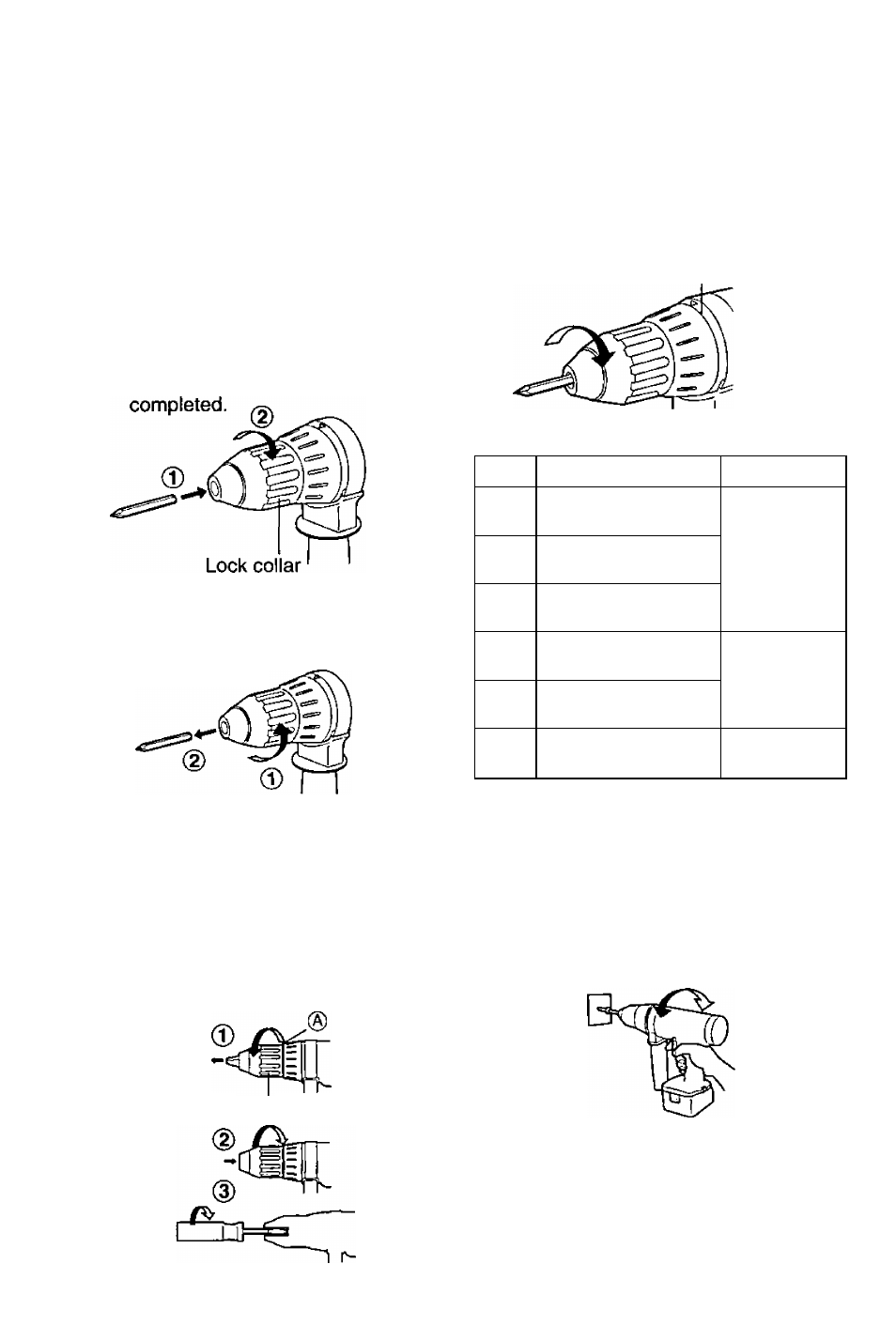

® Keyless drill chuck
Note: When attaching or removing a
bit, be sure to set the reversing
lever to its c e n t e r position
{switch lock).
This tool is equipped with a keyless
drill chuck.
1. Attachment
Insert the bit and turn the lock col­
lar clockwise (looking from the
front) to tighten.
When the clicking sounds stop
while tightening, attachment is
2. Removal
Turn the lock collar counterclock­
wise (looking from the front), then
remove the bit.
Note: If excessive play occurs in the
chuck, Cl) secure the drill in place
and tighten the chuck by turning
® clockwise, (
2
) open the chuck
claws by unscrewing the lock col­
lar and CD tighten the screw (left-
handed screw) with a screwdriver
by turning it counterclockwise
(viewed from the front).
Lock collar
Clutch Handle
(Clutch Torque Setting)
Adjust the torque to one of the 21
possible settings to the job. There is
an interval of about 0.3 Nm (3 kg-cm
or 2.6 in-lbs) between steps.
CAUTION! Test the setting before
actual operation.
Set the scale at this line
Reference for Adjusting Torque
Scale Torque Use
1
Approx, 1,0 Nm
(10 kgf-cm or 8,7 in-lbs.) For driving
terminal screws
6
Approx. 2.5 Nm
(25 kgf-cm or 21,7 in-lbs.) For driving
machine screws
11
Approx. 3.9 Nm
{40 kgf-cm or 37.7 in-lbs.) For driving screws
Into soft materials
16
Approx. 5,4 Nm
(55 kgf-cm or 47,7 in-lbs.) For driving
screws into
hardwood
21
Approx. 6,9 Nm
(70 kgf-cm or 60.7 in-lbs.)
«31
High speed
Low speed For powerful
driving and drilling
Bit-locking function
1. With the trigger switch not engaged
and a screwdriver bit locked in
place, and the tool can be used as
a manual screwdriver (up to 22.5
Nm, 230 kgf-cm, 199 in-lbs.).
There will be a little play in the
chuck, but this is not a malfunction.
2. This feature is handy for tightening
screws that require more torque than
the maximum torque of the driver
(position «a on the clutch), for con­
firming the tightness of a screw or to
loosen an extremely tight screw.
-
