Channel Plus 7430 - Manual (Page 2)

1 2
PRINTERS INSTR
UCTIONS
INSTR,INSTL,74XX CAMERAS
,CP - P/N:
223012 B- INK:
BLA
CK - MA
TERIAL:
20 LB
. MEAD BOND - SIZE:
8.500”
X 11.000”
- FOLDING:
1 FOLD
VER
TICAL, 2 FOLDS HORIZONT
AL, FINISH
WITH LOGO SHO
WING - SCALE:
1-1 - SIDE 2 of 2

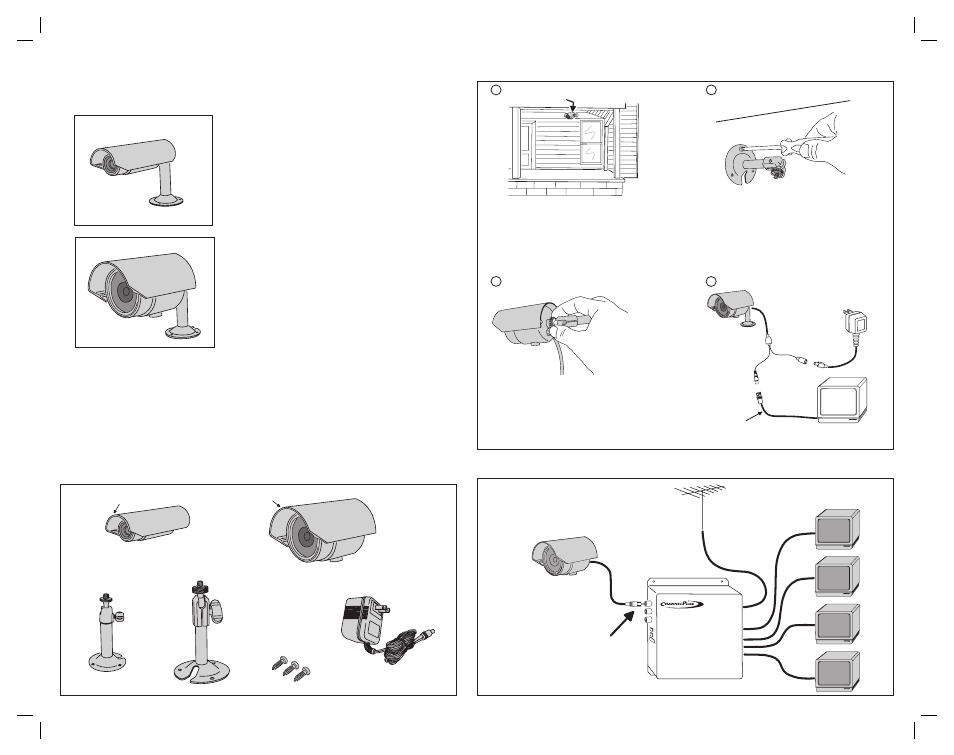

MODEL 7410 CAMERA
(BLACK & WHITE)
MODEL 7430 CAMERA
(COLOR)
MODEL 7420 CAMERA
(COLOR)
ADJUSTABLE
SUN SHADE
ADJUSTABLE
SUN SHADE
CAMERA STANDS
TRANSFORMER
MOUNTING SCREWS
EXAMPLE DRAWING OF
A CUSTOM INSTALLATION
Needs BNC-RCA
adapters (provided)
ChannelPlus 3015
Adapters are
provided for "F"
male cable fittings
Extend video cable
with RG-59/U or
RG-6U 75
Ω
cable
VIDEO DISTRIBUTION SYSTEM
VIDEO MODULATOR BROADBAND AMPLIFIER
®
Antenna
or cable
MONITOR
Use 75 Ω RG-59 or RG-6 COAX
A LONG CABLE RUN (150 FT. OR MORE) CAN NOTICEABLY
REDUCE THE PICTURE BRIGHTNESS AND INCREASES THE
POSSIBILITY OF GROUNG-LOOP HUM.
TRANSFORMER
CAMERA
THE CAMERAS WORK BEST WHEN THEY ARE LOOKING
DOWN ON THEIR SUBJECT. FOR A FRONT DOOR
APPLICATION, PLACE THE CAMERA AS HIGH AS POSSIBLE
OVERLOOKING THE DOOR.
USE THE SCREWS PROVIDED TO MOUNT THE CAMERA
STAND ON THE CEILING OR THE WALL. IF MOUNTING ON
PLASTER BOARD, USE THE ENCLOSED PLASTIC
"MOLLY" SCREWS.
ATTACH THE CAMERA TO THE STAND USING
EITHER SCREW MOUNT LOCATION. AJUST THE
CAMERA IN THE DESIRED DIRECTION AND
TIGHTEN WINGNUT.
CONNECT THE CAMERA
2 1
3 4
EXTEND VIDEO CABLE
WITH RG-59/U OR
RG-6/U 75 Ω CABLE.
ADAPTERS ARE
PROVIDED FOR "F"
MALE CABLE FITTINGS
CAMERA
CHOOSE A DRY, WEATHER PROTECTED LOCATION FOR THE
CAMERA THAT WILL HAVE AN UNOBSTRUCTED VIEW OF THE
DESIRED AREA. MOUNT CAMARA AS HIGH AS POSSIBLE.
BE SURE THAT THERE IS WIRING ACCESS FOR THE
TRANSFORMER AND FROM THE CAMERA TO THE TV.
AVOID LOCATIONS NEAR MOTORS, TRANSFORMERS, ETC.
BECAUSE THE MAGNETIC INTERFERENCE MAY CAUSE
DARK ROLLING BARS IN THE PICTURE
CHOOSE CAMERA LOCATION MOUNT CAMERA BRACKET
ATTACH CAMERA
Camera Models
Model 7410 Black & White Camera
(Black or Silver case)
512 x 492 pixels, .05 lux, 3.6 mm F2.0 lens
Power supply 9-13VDC @ 100 mA
Model 7420 Color Camera
(Black or Silver case)
512 x 492 pixels, 0.5 lux, 3.6mm F2.0 lens
Power Supply 9-13VDC @ 120 mA
Model 7430 Color Camera
(Black or Silver case)
512 x 429 pixels, 0 lux, 3.6mm lens
Power Supply 9-13VDC @ 250 mA
Operating Temperature -10° C to +50° C
Humidity 10% to 80%
Storage Temperature -20° C to +60° C
Water Resistant/Protected Environments
Power Supply Provided 12VDC @ 300mA Unregulated
Camera Components
Installing the Camera
Viewing the Camera From All TVs in a House
7410-7420
7430
