5 • Connection - Multi-recorder connection

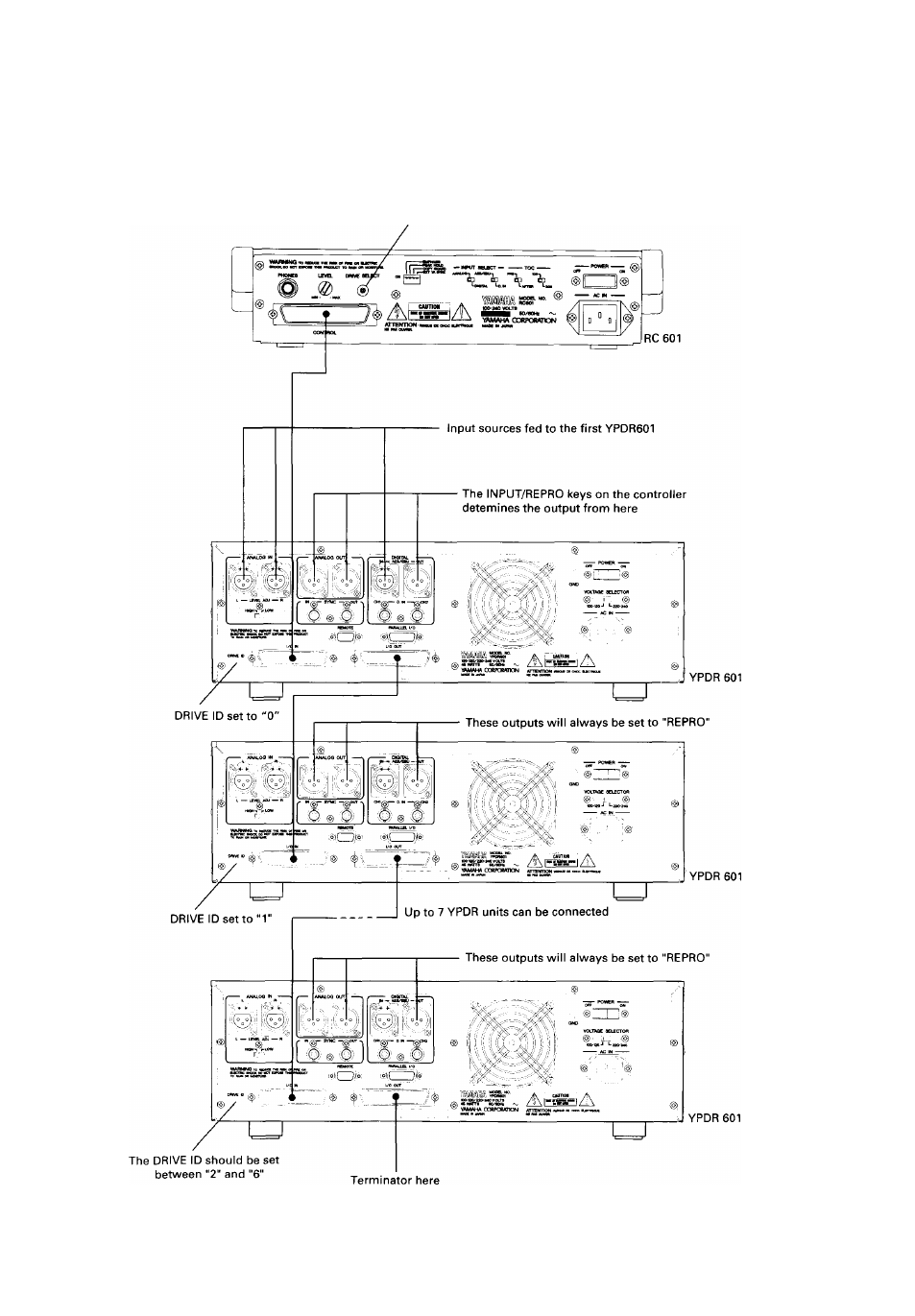

5.3 Multi-recorder connection
This configuration allows the simultaneous recording of multiple discs. The
principles for multi-recorder operation are essentially the same as for single-re
corder operation. Since the 50-way cable carries digital audio as well as control
information, up to seven recorder units may be "daisy-chained" togethel.
DRIVE SELECT set to the number of YPDR units minus 1
YPDR
Connection ■ 19
