Front Panel

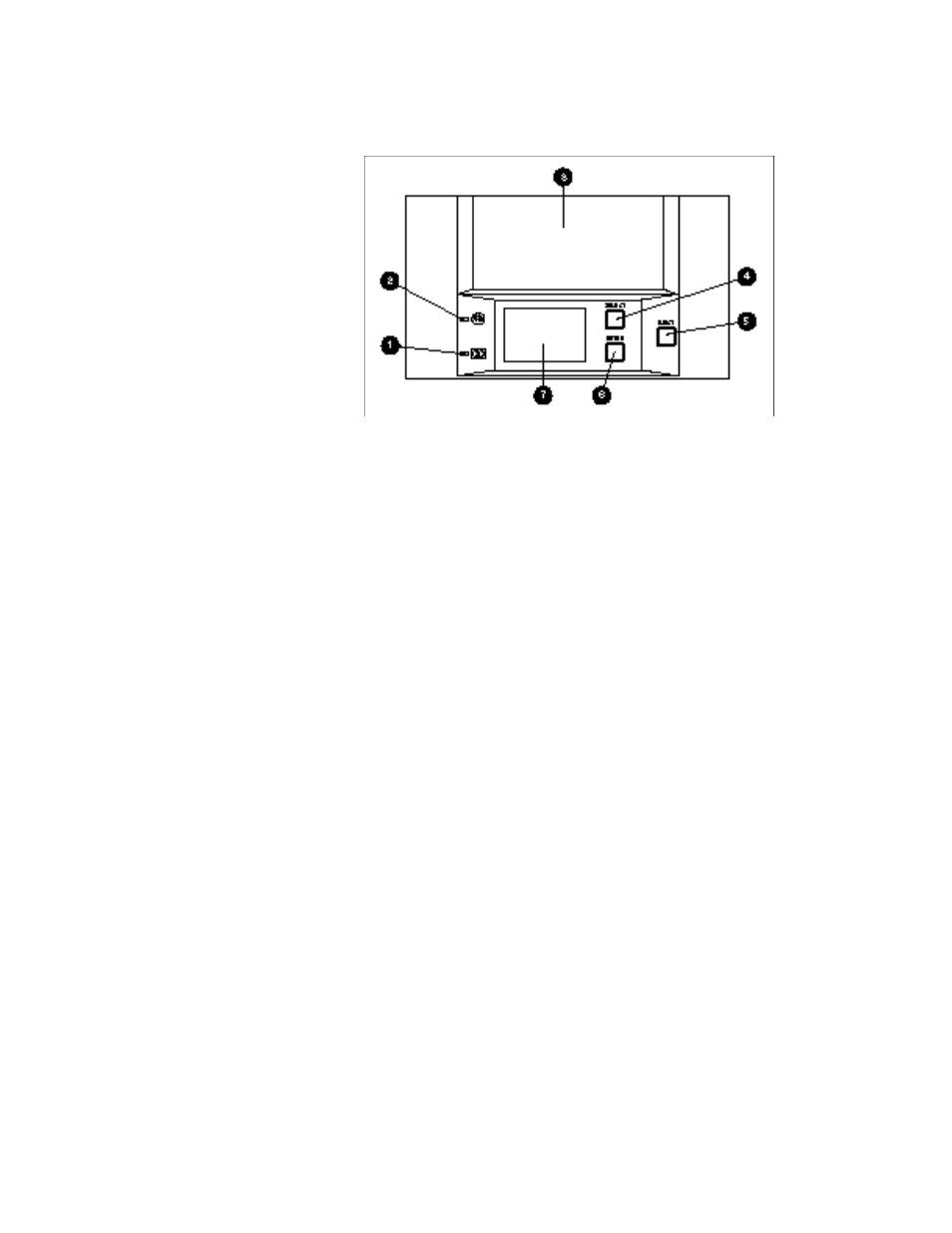

Figure 4-10. Identifying the front panel features
Callout Description Feature
1
Tape LED Shows when a cassette is present
2 Busy LED Shows when activity is taking place
3
Magazine Position Where the magazine is inserted and ejected
4
Select button Selects a cassette for use
5 Eject Button Starts the unload process then ejects
6
Enter Button Confirms cassette selection
7
Liquid Crystal Display Shows the status of the AutoLoader
