CDA FWV460 - Manual (Page 9)

392.5
492.5
458
436
595
19
440
450 min
560
min. 200cm 2
min. 200cm 2
450 min
600

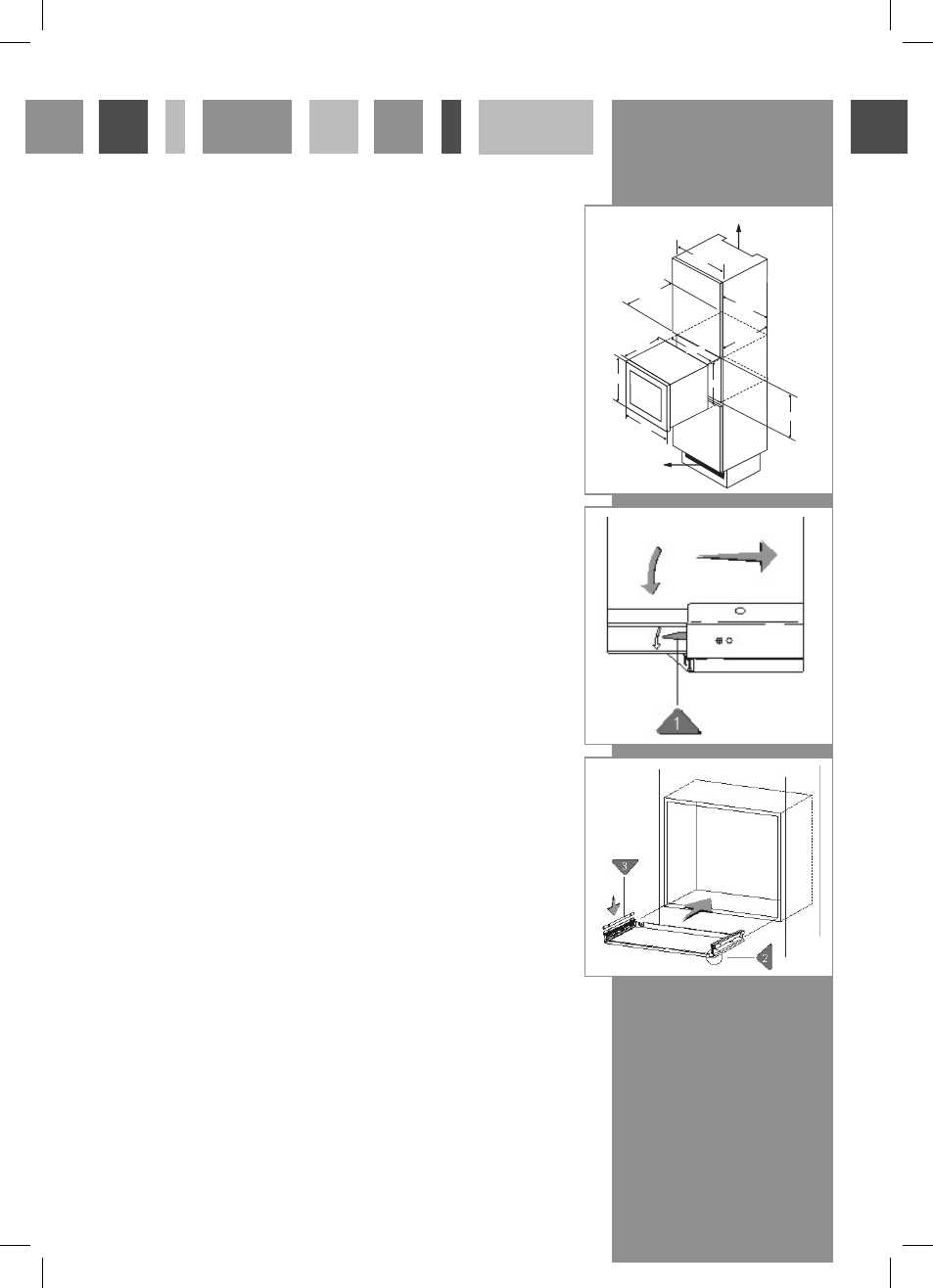

fig. 1
fig. 2
fig. 3
Installation
IMPORTANT: THIS APPLIANCE SHOULD BE FITTED BY SUITABLY
QUALIFIED PERSON.
1. Slide the base unit into the housing ensuring the dimensions are
correct as per figure 1.
2. Fix the base unit in place by attaching the 10 screws in to the holes as
shown in figure 2 and figure 3. If the sides of the base are not
flush with the sides of the housing, then use the shims provided.
3. Push the runners fully closed on the base unit.
4. Connect the plug to the plug socket. This must be accessible after
the appliance has been installed.
5. Using an appropriate supply pipe, connect one end of the hose
to the threaded inlet of the valve on the
dispenser, located at the rear of the appliance.
6. Insert the flow restrictor between two rubber washers, then connect
the other end of the pipe to the mains water supply
(drinking water only)
7. Insert the appliance into the housing, ensuring that the runners on
the machine are located in the runners on the base unit. Then slide
the appliance fully into the housing.
