EFIS-D6 Pilot’s User Guide
3-1
3. PRODUCT OPERATION
After reading this section, you will be familiar with the basics of how to use your EFIS-D6. For details regarding specific
procedures (e.g., adjusting display brightness, changing the altimeter setting, etc.) please refer to the Operation section.
Front Panel Layout

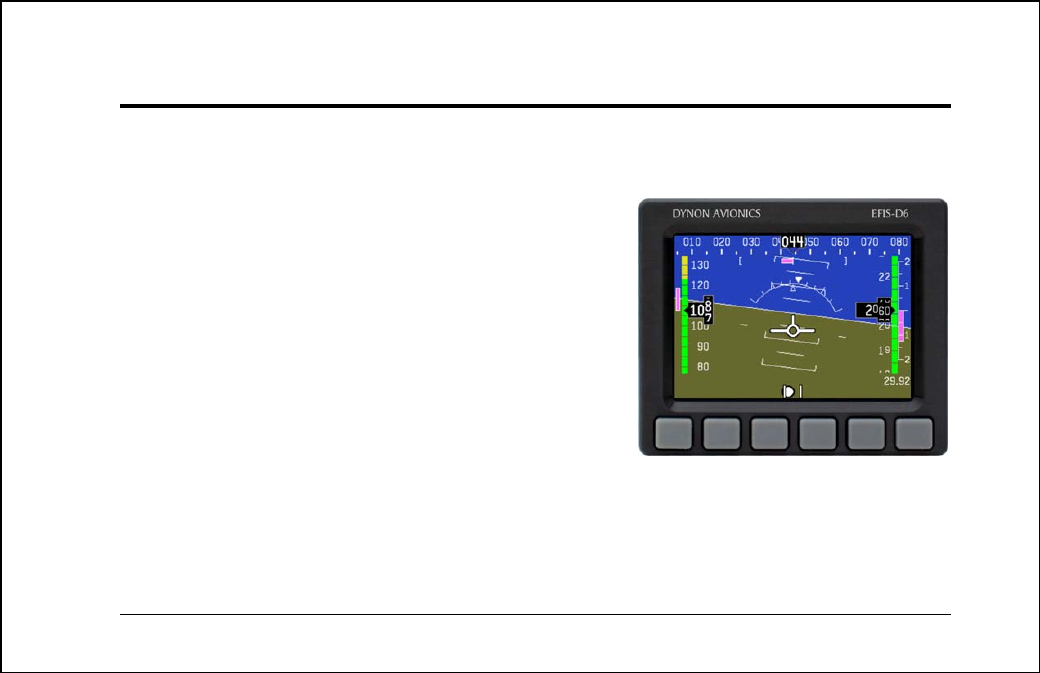

All normal operation of the EFIS-D6 happens via the front panel. The
front panel contains buttons and a display.
• Buttons – There are six buttons on the front panel of the EFIS-
D6. Throughout this guide, these buttons are referred to as one
through six, with button one being the leftmost and button six
being the rightmost. EFIS-D6 buttons are used to turn the
instrument on and off, scroll through menus, and adjust
instrument parameters.
• Display – The display shows EFIS information and menus.
User interaction takes place via the EFIS-D6
main display and the six buttons beneath.
1
2
3
4
5
6
