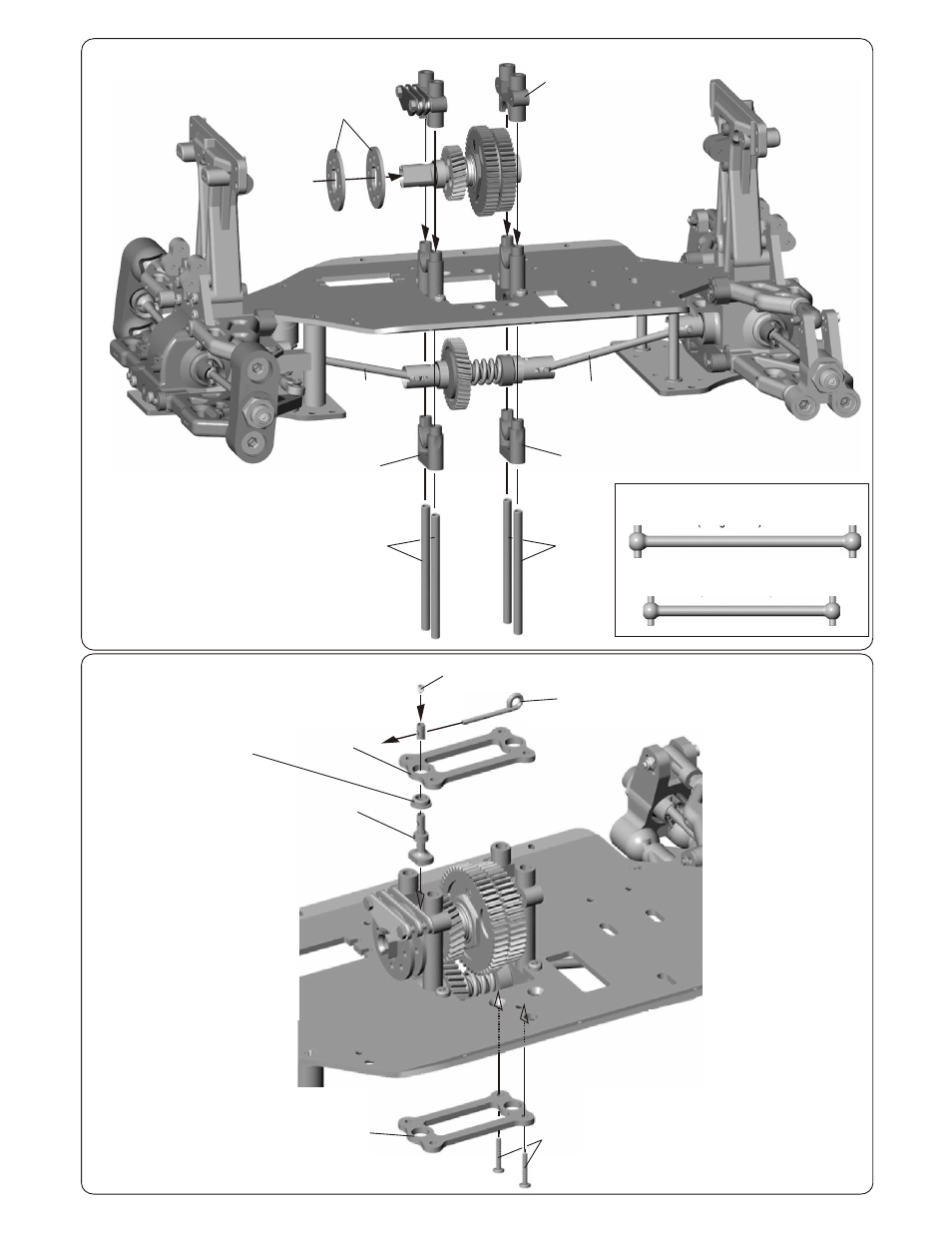

ASSEMBLY OF THE 2 SPEED TRANSMISSION INTO CENTER MOUNT
36650
Brake Disk
40040
Center Diff.
Mount
40040
Center Diff.
Mount
40040
Center Diff.
Mount
40216
Center
Drive Shaft
( Long/93mm )
40216
Center Drive Shaft
( Long/93mm )
40216
Center
Drive Shaft
(Short/86.5mm )
40216
Center Drive Shaft
(Short/86.5mm )
* Put the brake disk
into the brake cap joint
before assembly the
center diff. mount.
40225
Center
Diff. Mount
Post
40225
Center
Diff. Mount
Post
* Put the center diff. mount post
through the center diff. mount.
ASSEMBLY OF THE BRAKE CAM
AND CENTER DIFF. MOUNT PLATE
30213
Brake Cam
30211
Brake,
Bushing
Option:
30212
Brake
5x8mm
Bearing
3x15mm
Screw
40237
Alum. Center
Diff. Plate
40237
Alum. Center
Diff. Plate
3x3mm
Set Screw
30171
Brake Level
*Screw in 3x15mm screw
for temple use.
* Put the center drive shaft before assembly the
slipper clutch unit.
