Assembly of the stone guard, Assembly of the rear torque rod, Assembly of the center diff. onto chassis – OFNA Racing MBX R2 Plus User Manual
Page 25
0
0
1
1
R R
3 x 10mm
Tapping Screw
#36820
Stone Guard
#36820
Stone Guard
3 x 10mm
Tapping Screw
3 x 10mm
Tapping Screw
3 x 10mm
Tapping Screw

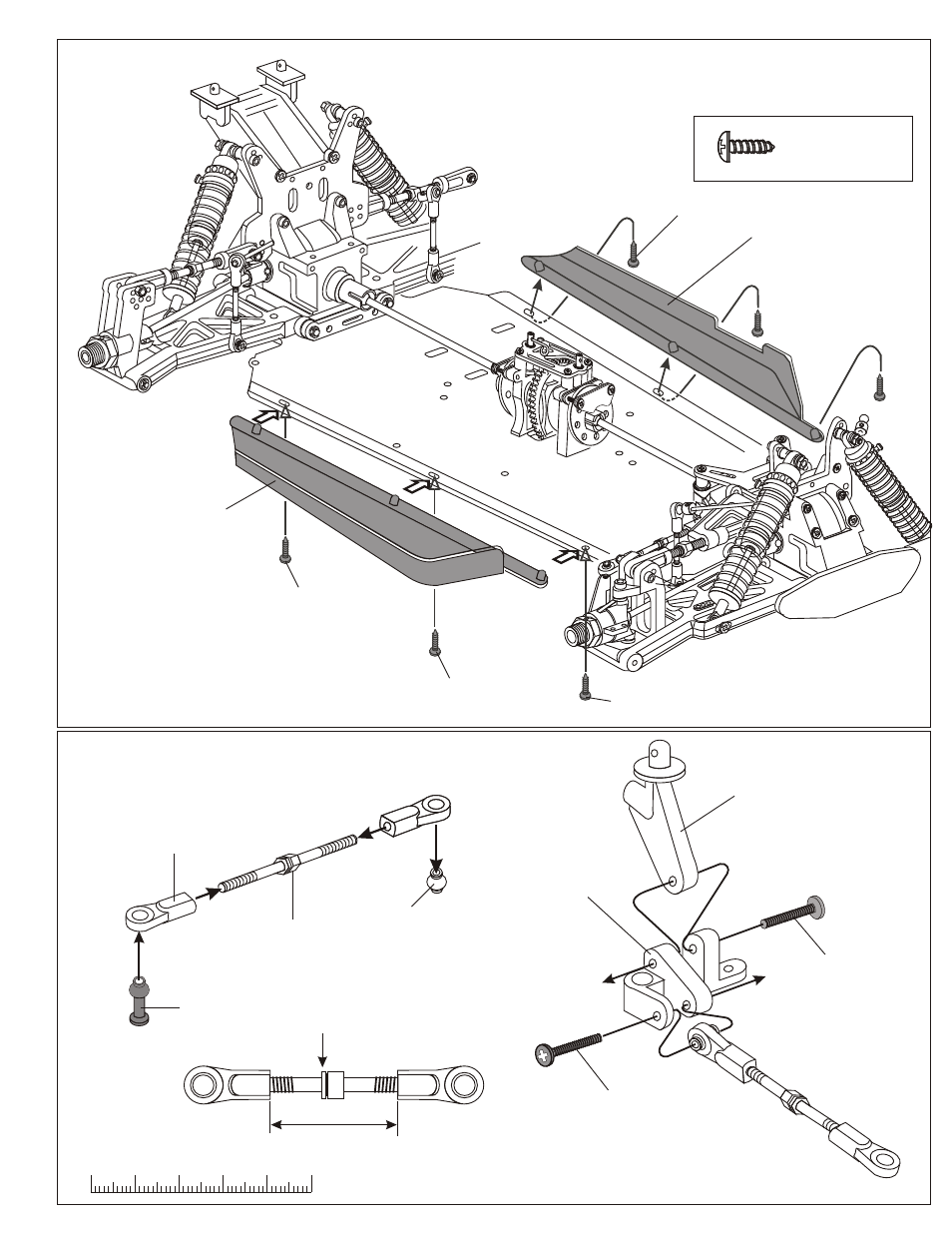

ASSEMBLY OF THE STONE GUARD
#36700
Steering
Ball End
#36700
Steering
Ball End
#36790
4 x 46mm
Turnbuckle
#36850
7mm Ball
* Anticlockwise mark.
ASSEMBLY OF THE REAR TORQUE ROD
(REAR)
0 10 20 30 40 50
mm
#36710
Rear Stiffener &
Body Mount
#36710
Rear Stiffener &
Body Mount
3 x 20mm
Screw
3 x 20mm
Screw
3 x 10mm
Tapping Screw
35mm
#36680
7mm
Ball & Socket
Support
* Insert drive shaft into
cap joint.
0
0
1
1
R R
ASSEMBLY OF THE CENTER DIFF. ONTO
CHASSIS
#36110
Center Drive
Shaft
Center Diff. Assembly
0
0
1
1
R R
4 x 16mm
Flat Head
Tapping Screw
4 x 16mm
Flat Head
Tapping Screw
#36110
Center Drive
Shaft
4 x 16mm
Flat Head
Tapping Screw
3 x 25mm
Flat Head
Tapping Screw
* Insert drive shaft into cap joint.
4 x 16mm
Flat Head
Tapping Screw
3 x 25mm Flat Head
Tapping Screw
3 x 25mm
Flat Head
Screw
3 x 25mm Flat Head
Screw
M3
Flange Nut
