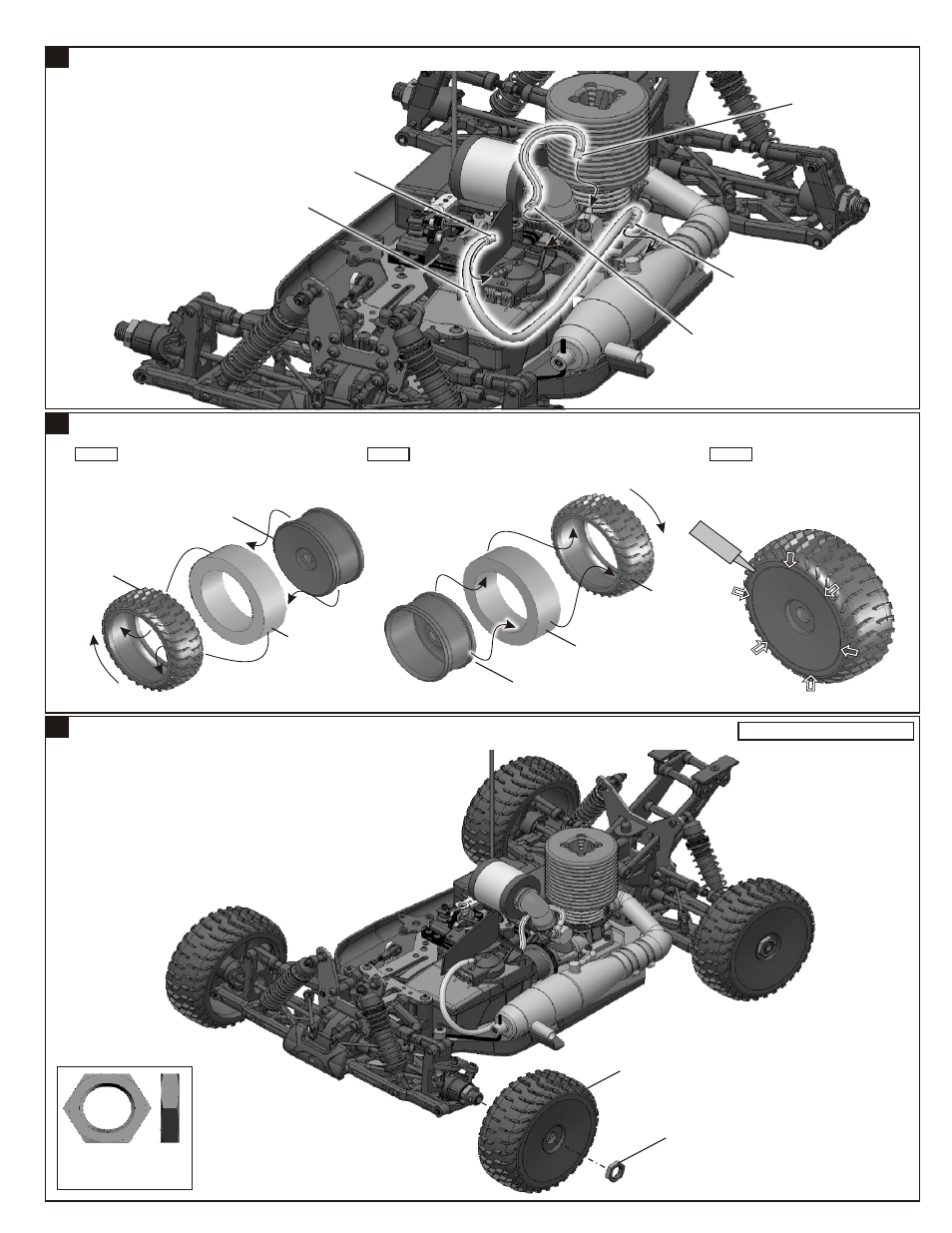

ASSEMBLY OF THE FUEL TUBE
Connect to
carbulater.
Connect to
fuel nipple.
Connect to fuel
tank nipple.
Connect to pressure
nipple.
#10177
Fuel Tube
Tire and Wheel
Assembly.
#40550
Blue
Wheel Nut
#40550
Blue
Wheel Nut
ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB Assembly for both right and left side.
Step 1 Step 2 Step 3
IN
S
TA
N
T
G
L
U
E
Apply instant glue into the groove of
the wheel.
56 ASSEMBLY OF THE TIRES AND WHEELS
Make two right tires are the same.
*Notice the direction of tyres.
*Notice the direction of tyres. Make two left tires are the same.
80020
Tires
81098
Inner Sponge
#86046
Wheel(White)
80020
Tires
81098
Inner Sponge
#86041
Wheel
(White)
