Assembly of front bumper & front brace – OFNA Racing Hyper Mini STe User Manual
Page 9

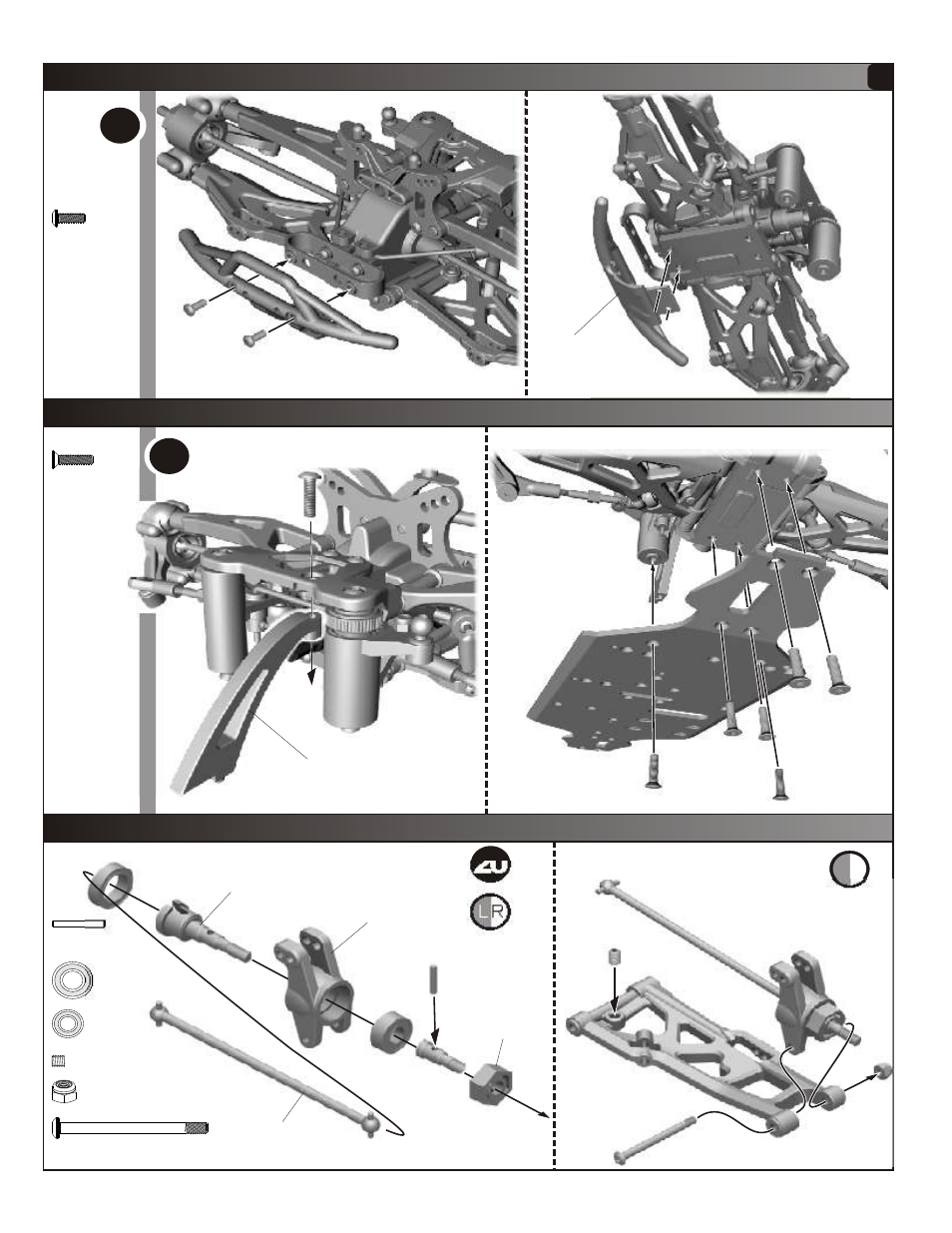

Assembly of Front Bumper & Front Brace
Assembly of Front Bumper & Front Brace
Assembly of Rear Suspension arms
Assembly of Rear Suspension arms
8
R
L
20
R
L
Assembly of Front Diff & Suspension arms onto Chassis
Assembly of Front Diff & Suspension arms onto Chassis
08
19
18
21005
M3
21017 x4
11066
18075
21019
Wheel hex hub
21058
21025
Rx1,Lx1
21027
21026
94020x4
M3x12mm
F/H screw
10x15mm
Ball bearing
6x13mm
Ball bearing
2x10.8mm
Shaft
94002x4
M3x8mm
Screw
M4x6mm
Set screw
Nut
Front bumper
Front brace set
Rear join cup
21017
Rear dog bone
