Woo Audio WA5 300B Single-ended Triode - Manual (Page 7)

©2011 WOO AUDIO tm Inc. All rights reserved. www.wooaudio.com Rev 1.0. June 27, 2011 7

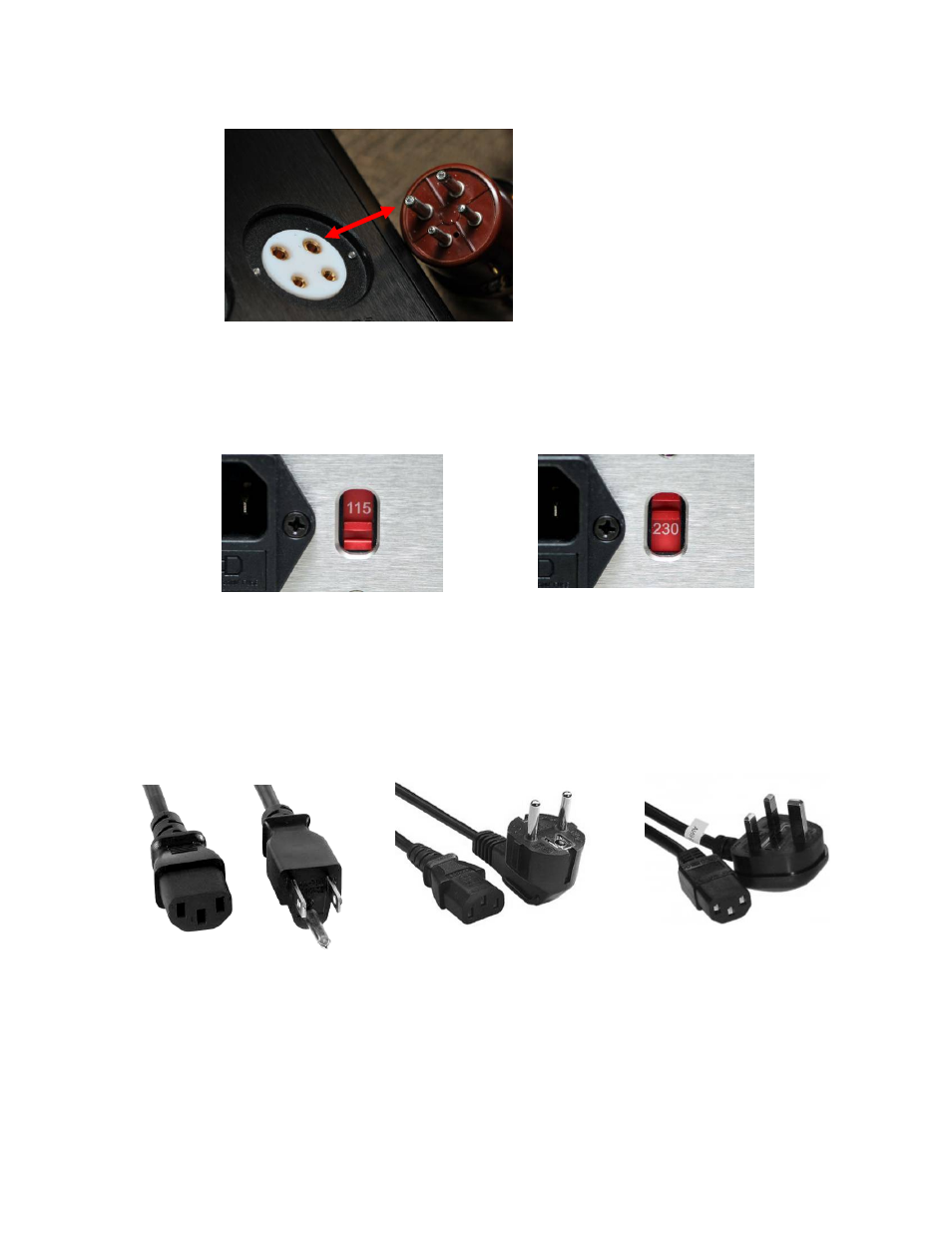

Installing the 300B tubes:
Be aware that the large pins should be inserted into the large pin receptacles.
Selecting AC voltage:
WARNING: failure to select the correct voltage will result in damage of the amp.
Installing the power cord:
Plug the power cord into the AC inlet, see ① in the below diagram. The AC inlet socket is a
standard IEC type. You will need to obtain the correct type for your region.
U.S. European U.K.
Switch to label “115” for
AC100 to 125V voltage.
Switch to label “230” for
AC210 to 240V voltage.
