Woo Audio WA6-SE (Special Edition) Headphone Amplifier User Manual

Page 8

www.wooaudio.com

Rev 1.0. June 10, 2011.

Installing the power cord:

Plug the power cord into the AC inlet. See

②

in the below diagram. The AC inlet socket is a

standard IEC type. You will need to obtain the correct type for your region.

Installing the DC cord:

Installing the source input:

Plug the RCA interconnection cable into the RCA connectors, see

⑤

in the below diagram. Or,

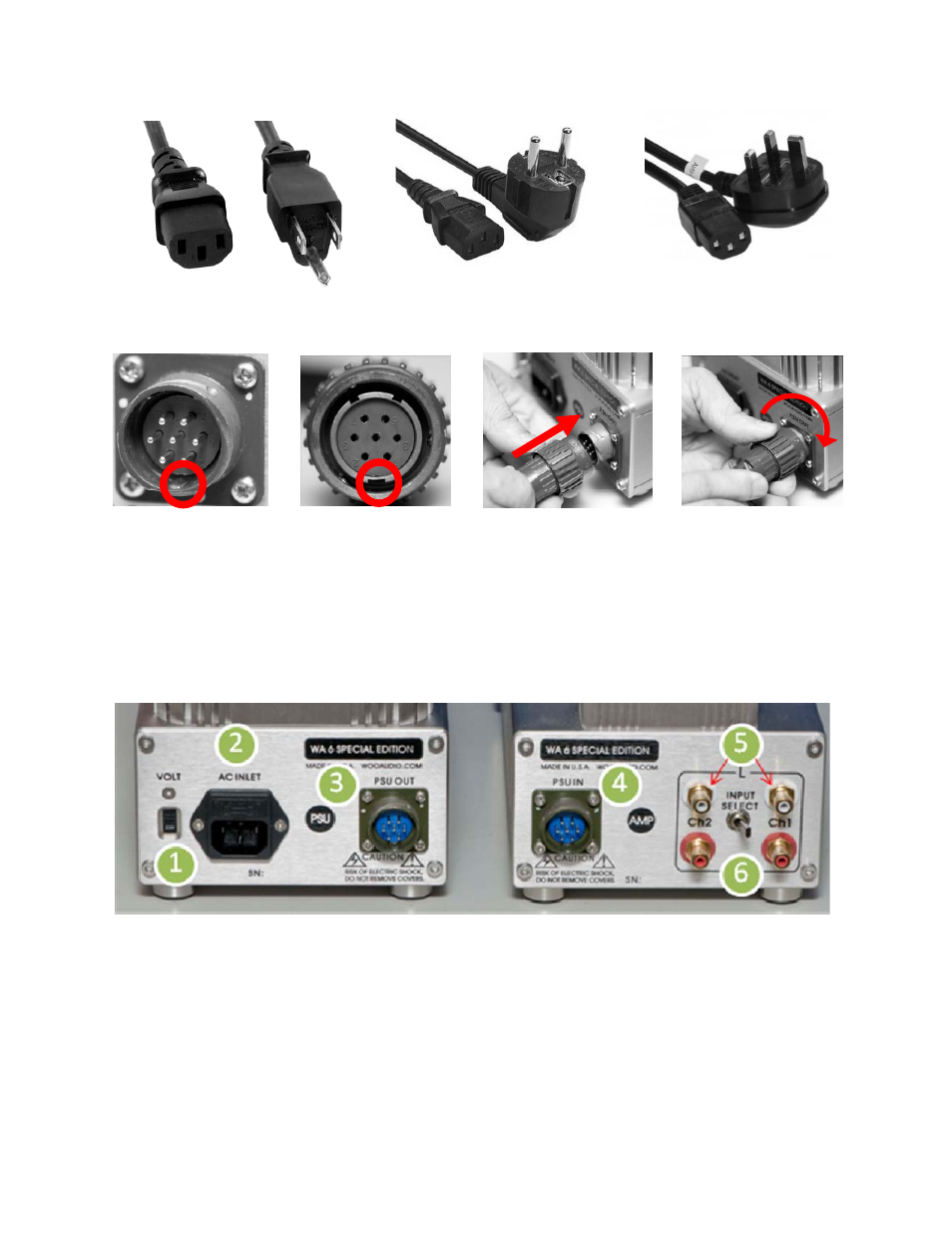

Back panel diagram:

① Voltage selection switch

② AC Inlet

③ DC output

④ DC input

⑤ RCA

⑥ Input selector

U.S.

European

U.K.

Align the mark on the
socket

Align the mark on the

DC cord plug

Slightly push the plug

toward the socket

Turn the ring clockwise

until you hear a clicking

sound
