-9-

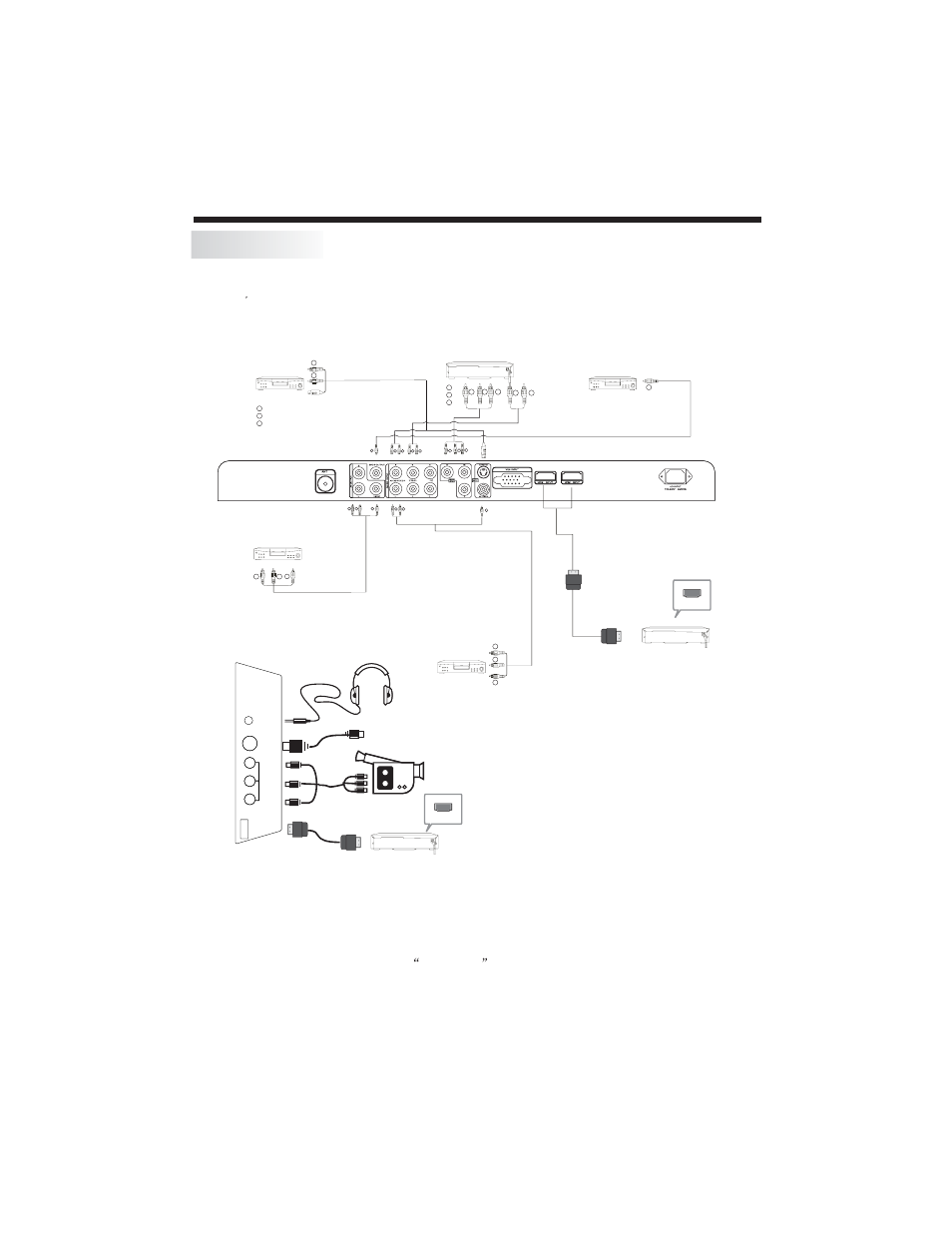

INSTALLATION
AV EQUIPMENT
This TV provides two groups of AV ,two S-Video,one group of YPbPr for convenient connection
to VCR,DVD or other video equipment,three group of HDMI for HD signal input Please refer to
the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i,1080p.
NOTE:
AV2 and S-VIDEO2 share the audio input channel.
To au dio
outputs
VIDEO EQUIPMENT
VIDEO EQUIPMENT with YPbPr
To audio Input
with S-video
Terminal
With VIDEO Input Terminal
TO VIDEO
Iutput
Black (s-video)
White(audol L)
Red(audio R)
Y
W
R
Y
W R
R
W
W R
output
To s-video
G B R
G B R Pr
Y
Pb
R
G
B
HDMI
Y
From Coaxial SPDIF
output
VIDEO RECORDER
Y
To audio
Output
With VIDEO
terminal
VIDEO EQUIPMENT
R
W
Y output
To video
W R
2 1
W R
W R Y
W R
with SPDIF Input
term inal
Y
HEADPHONE
S-VIDEO2
VIDEO
L
R
HDMI3
AV2
HDMI
When HDMI3 port get DVI signal, the AV2 Audio channel will change to receive the audio
from HDMI3 port
HDMI cable is no included.
