14
ASSEMBLY

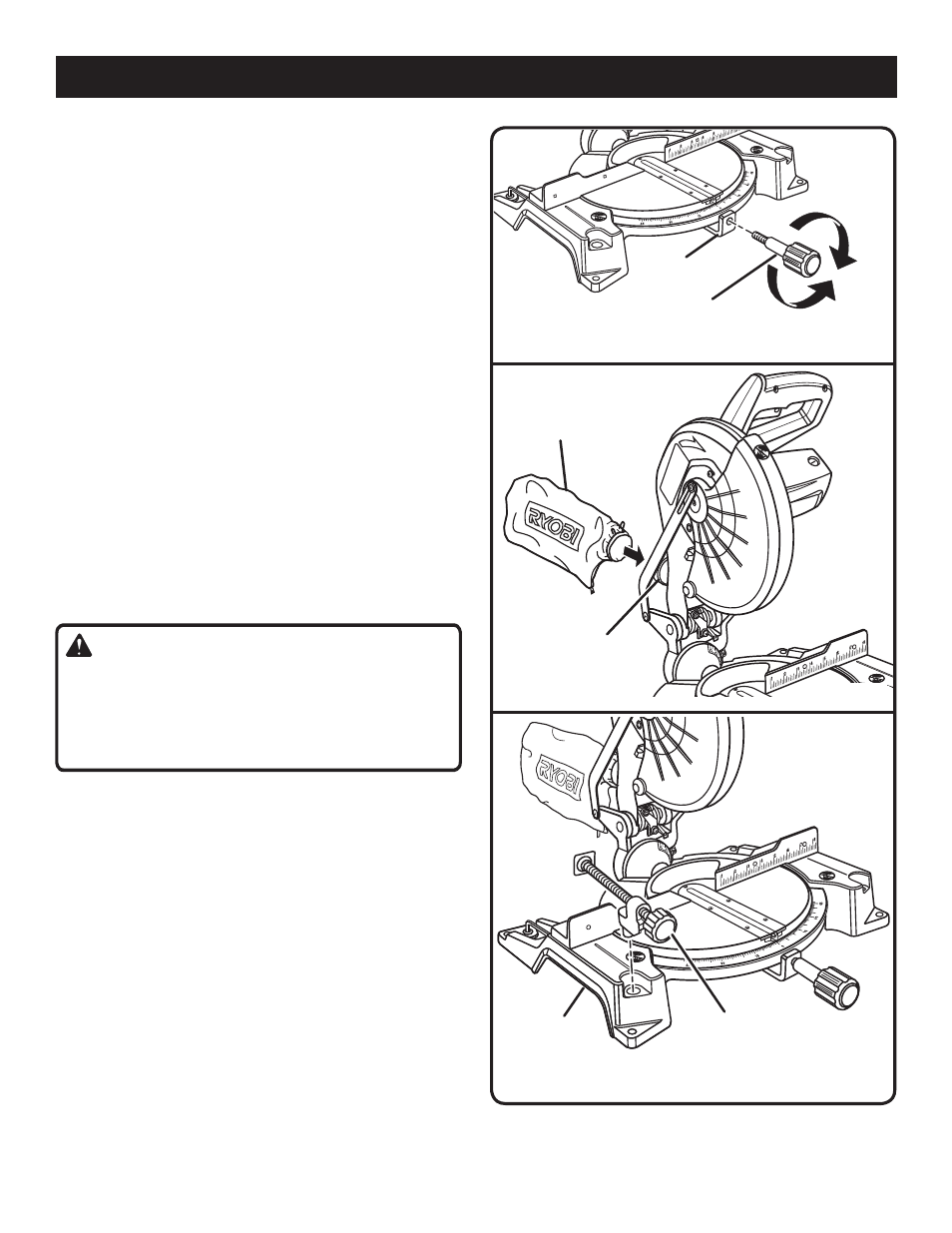

Fig. 8
Fig. 10
TO
LOOSEN
MITER
LOCK HANDLE
TO
TIGHTEN
DUST
BAG
EXHAUST
PORT
BASE WORK
CLAMP
MITER LOCK HANDLE
See Figure 8.
To install the miter lock handle, place the threaded stud on
the end of the miter lock handle into the threaded hole in
the control arm. Turn clockwise to tighten.
DUST BAG
See Figure 9.
A dust bag is provided for use on the miter saw. It fits over
the exhaust port on the upper blade guard. Squeeze the two
metal clips to open the mouth of the bag and slide it on the
exhaust port. Release the clips. The metal ring in the bag
should lock in between the grooves on the exhaust port.
To remove the dust bag for emptying, simply reverse the
above procedure.
WORK CLAMP
See Figure 10.
The work clamp provides greater control by clamping the
workpiece to the fence. It also prevents the workpiece from
creeping toward the saw blade. This is very helpful when
cutting compound miters.
Depending on the cutting operation and the size of the
workpiece, it may be necessary to use a C-clamp instead
of the work clamp to secure the workpiece
to the miter table
prior to making the cut.
WARNING:
In some operations, the work clamp assembly may
interfere with the operation of the blade guard assembly.
Always make sure there is no interference with the blade
guard prior to beginning any cutting operation to reduce
the risk of serious personal injury.
To install the work clamp:

Place the shaft of the work clamp in either hole on the
miter table base.
 Rotate the knob on the work clamp clockwise to move
it in or counterclockwise to move it out as needed.
Fig. 9
CONTROL ARM
