Ryobi TS1355LA - Manual (Page 29)

29
OPERATION
WRONG
WARNING:
To avoid a kickback and to avoid serious personal injury,
never position the concave edge of bowed or warped
material against the fence.
CLAMPING WIDE WORKPIECES
See Figure 42.
When cutting wide workpieces, such as 2 in. x 6 in., boards
should be clamped with a C-clamp as shown in figure 42.
Fig. 42
WIDE
BOARD
Fig. 41

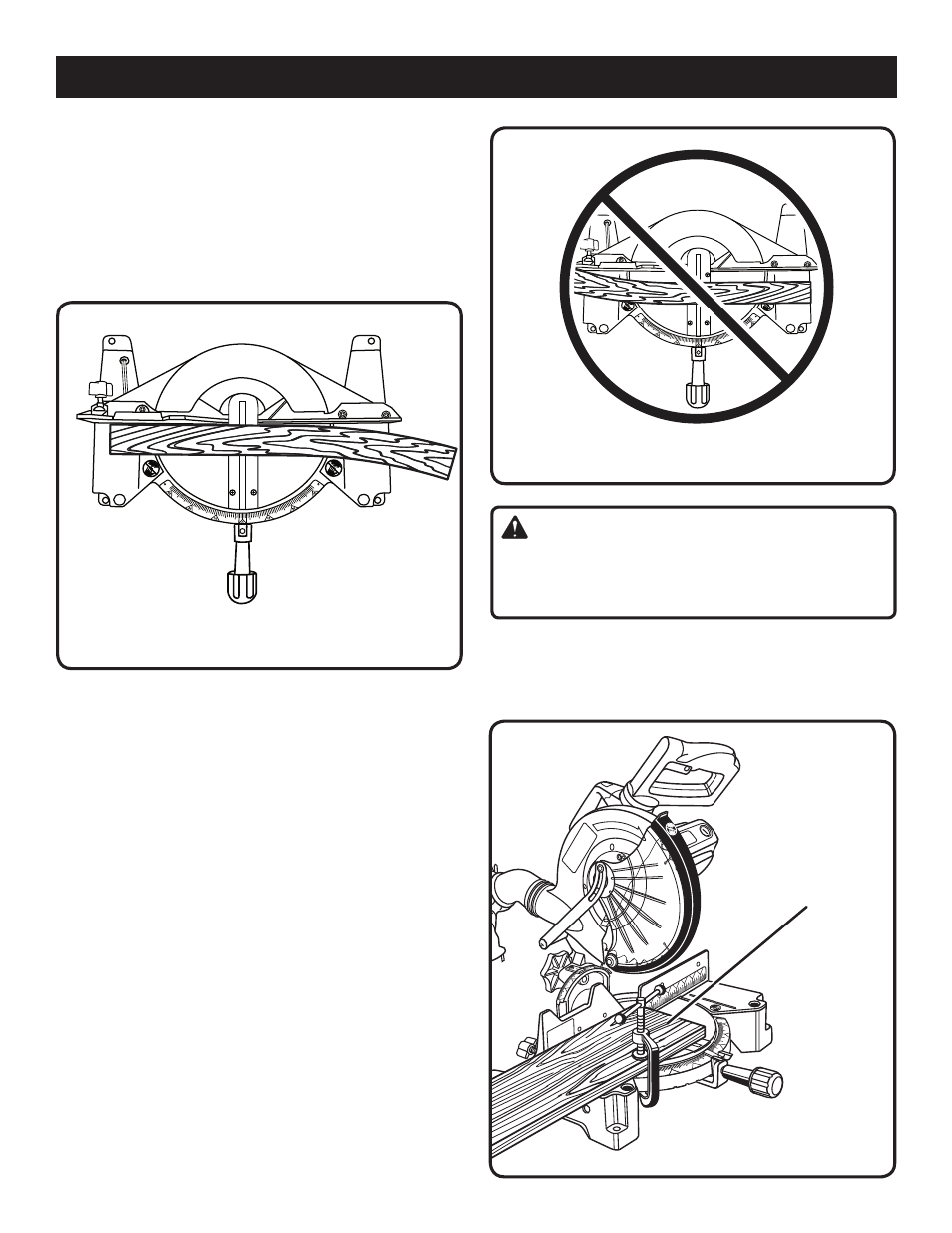

CUTTING WARPED MATERIAL
See Figures 40 - 41.
When cutting warped material, always make sure it is posi-
tioned on the miter table with the convex side against the
fence as shown in figure 40.
If the warped material is positioned the wrong way as shown
in
figure 41, it will pinch the blade near the completion of
the cut.
Fig. 40
RIGHT
