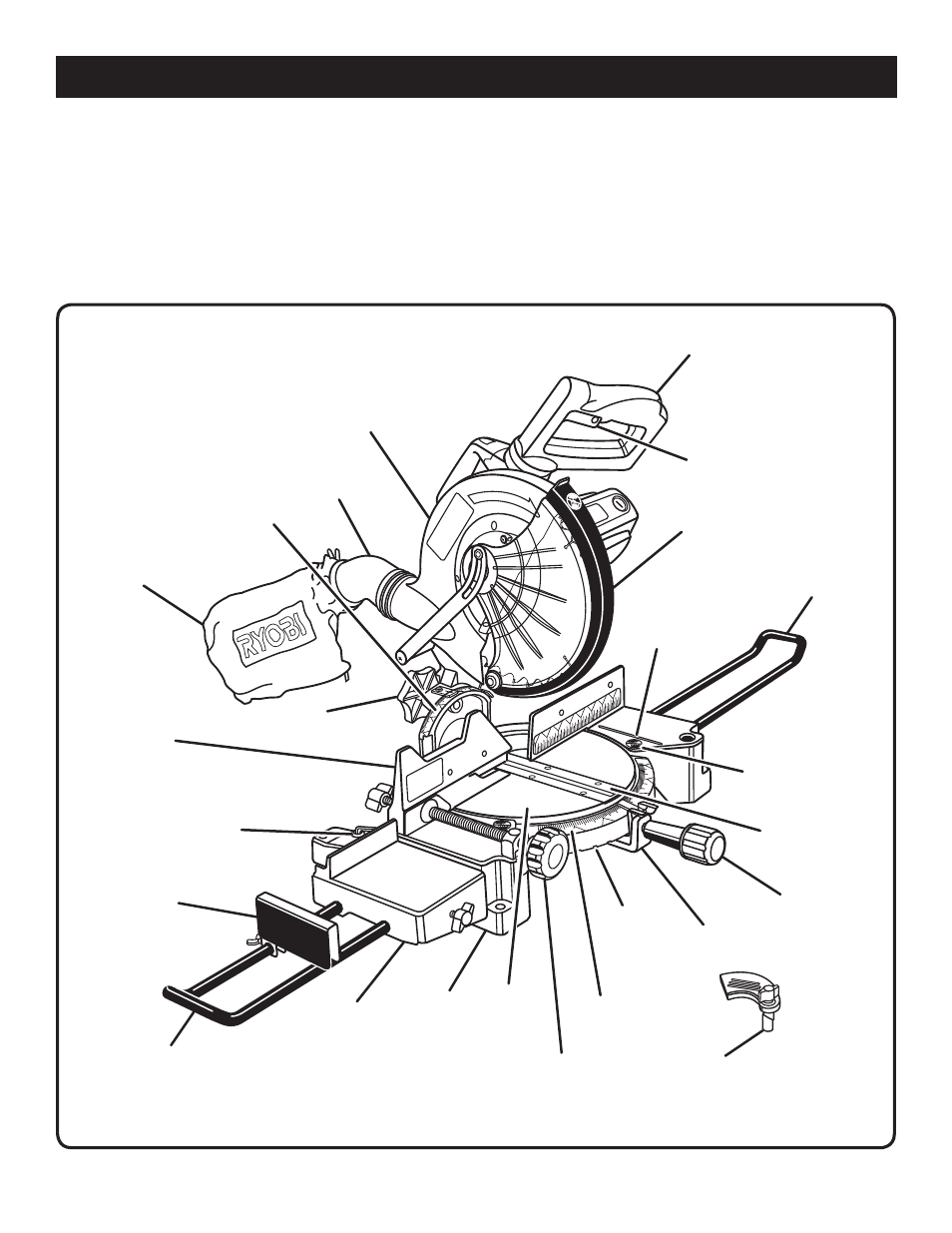

FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Blade Arbor .............................................................. 5/8 in.
Blade Diameter .......................................................... 10 in.
No Load Speed .................................... 5,000 r/min. (RPM)
Input ................................ 10 V, 60 Hz, AC only, 15 Amps
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes: .................... x 6, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes: .............................. x 4
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes: .............................. x 6
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes: .............................. x 4
Switch
trigger
DuSt
guiDe
Bevel
Scale
DuSt
Bag
Bevel
lock
knoB
SliDing
Miter Fence
BlaDe wrench
Storage
StoP
Block
taBle
eXtenSion
BaSe
work
claMP
PoSitive
StoP(S)
Miter
taBle
control
arM
Miter
lock hanDle
throat
Plate
“no hanDS
Zone” laBel
“no hanDS Zone”
BounDarY line
Miter
Scale
uPPer BlaDe
guarD
lower BlaDe
guarD
rotating “D”
hanDle
aDjuStaBle
taBle
crown
MolDing StoP
taBle
eXtenSion
