FEATURES
PRODUCT SPECIFICATIONS
Motor ....................................................................................................................................40 Volt DC
Bar Length ....................................................................................................................................14 in.
Chain oil tank capacity ..................................................................................................................
6 oz.
NOTE: This saw was designed for occasional light duty use and has some limitations as to what it
can cut.

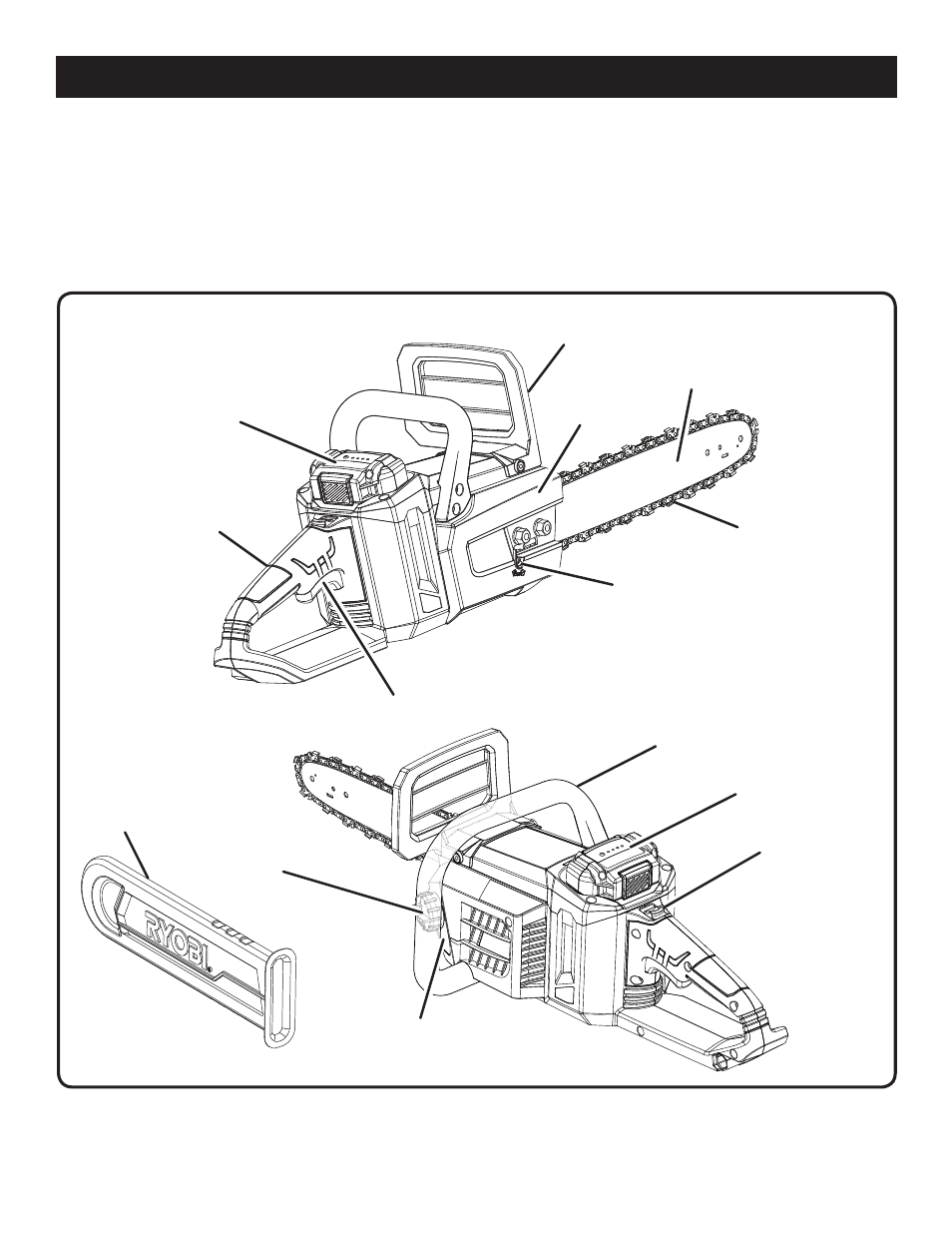

Fig. 4
CHAIN OIL
TANK CAP
REAR
HANDLE
FRONT HANDLE
GUIDE
BAR
LOW KICKBACK
CHAIN
CHAIN
TENSIONING
SCREW
BATTERY PACK
FRONT HAND
GUARD
CHAIN
COVER
SWITCH TRIGGER
SCABBARD
BATTERY PACK
LOCK-OUT
BUTTON
QUICK VIEW OIL
INDICATOR
