KNOW YOUR PLATE JOINER
See Figure 2.
Except for the dust bag, your plate joiner has been shipped
completely assembled and ready for use. An operator's
manual and warranty registration are also included. Inspect
your new plate joiner carefully to make sure no breakage or
damage has occurred during shipping. If any parts are
damaged or missing, contact your local Ryobi factory or
authorized service center to obtain replacement parts before
attempting to operate your plate joiner.
The dust bag is easily installed on the rear of your tool. Its
use will help keep the work area clean. Install dust bag by
inserting the dust bag adaptor inside the blower exhaust on
your plate joiner. For most efficient pick-up of wood particles,
empty dust bag often.
Before attempting to use any tool familiarize yourself with all
operating features and safety requirements.
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict severe injury.

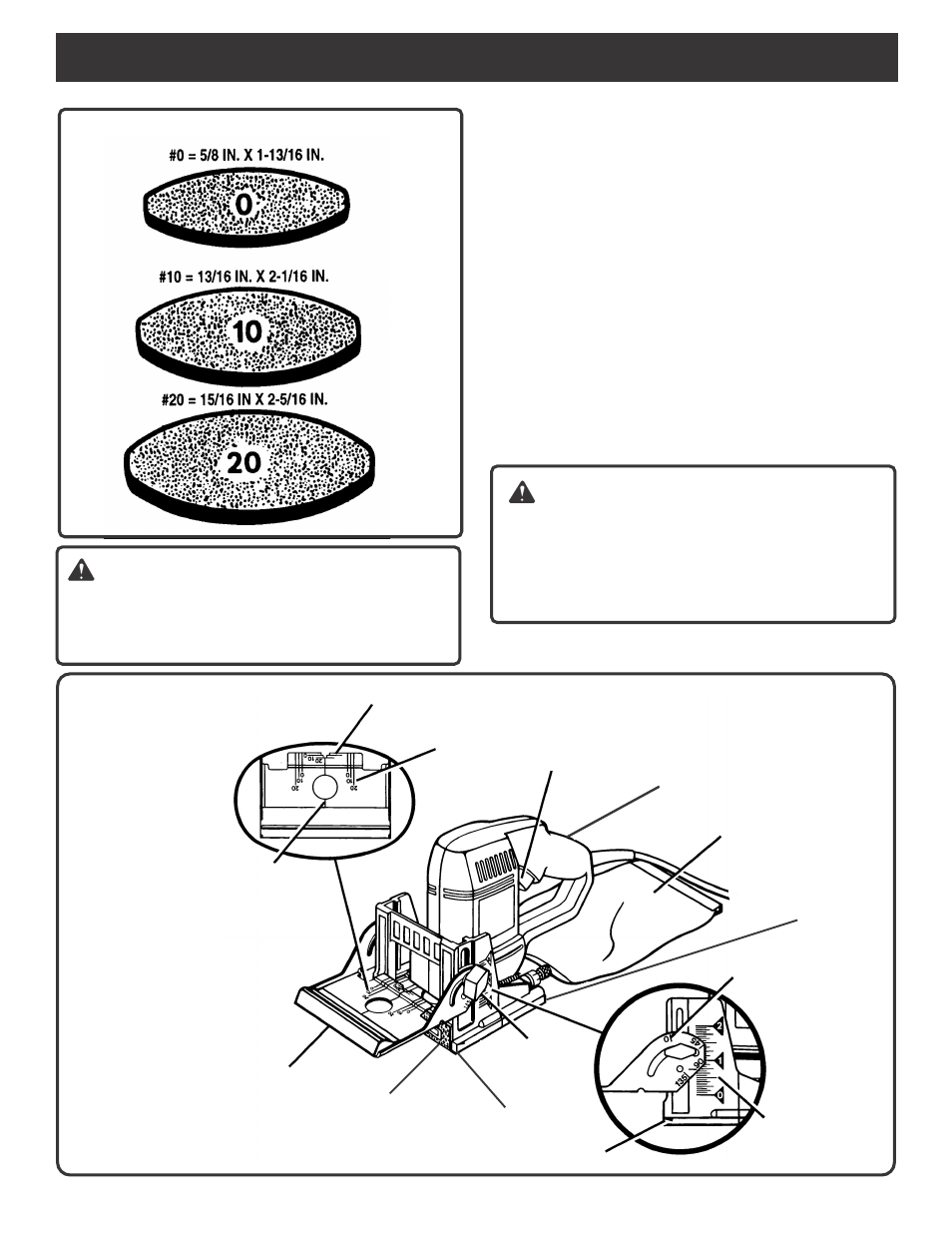

FEATURES
Fig. 1
DEPTH OF CUT SCALE
WIDTH OF
CUT SCALE
CENTERLINE / LINE OF
CUT INDICATOR
MARK (S)
FRONT HANDLE /
ADJUSTABLE
FENCE
NON-SKID
BACKING PAD FRONT BASE
ASSEMBLY
HEIGHT
ADJUSTMENT
KNOB (S)
SWITCH
TRIGGER
REAR HANDLE
DUST BAG
REAR BASE
ASSEMBLY
ANGLE
SETTING SCALE
HEIGHT SETTING
SCALE
HEIGHT INDICATOR MARK
