Caution – Coleman 9995B Series User Manual

Page 7

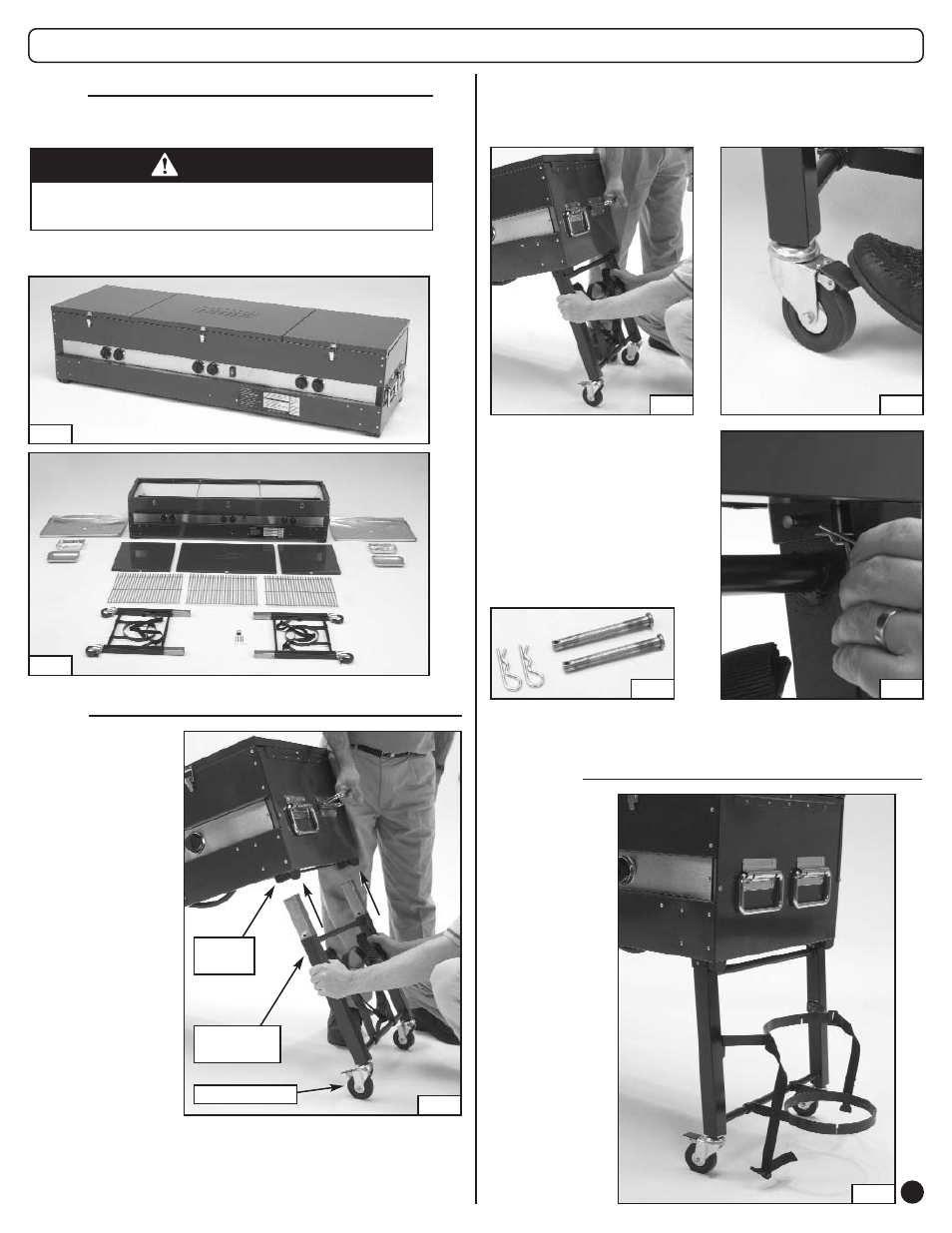

Step 1

■ Remove components from carton. (Fig. 15 & 16)

■ Carefully read and follow the instructions for proper setup & use of
your Coleman

Event Grill.

CAUTION

Because of its size and weight, it is recommended that there are at
least two (2) people available to set up your Coleman

Event Grill.

To Set Up

Fig. 16

■ NOTE: One leg

assembly is marked
“RIGHT FRONT” and
one leg assembly is
marked “LEFT
FRONT”.

■ NOTE: Position

locking caster toward
front of grill.

■ Carefully raise the

right end of grill and
align “RIGHT” leg
assembly with the
receiver tubes on the
bottom of the grill.
(Fig. 17)

Step 2

Locking Caster

“RIGHT” Leg
Assembly

Receiver
Tubes

Fig. 17

■ Lower the grill, allowing the
leg assembly to slide into
position. (Fig. 18)

Fig. 18

Fig. 21

Fig. 20

■ Lower the
tank mount.
(Fig. 22)

Step 3

■ Secure the right leg assembly
with two clevis pins and two
hairpin cotters. Use one set for
the front leg and one set for the
back leg.
(Fig. 20 and 21)
■ Repeat Step 2 to attach the
left leg assembly.

Fig. 22

Fig. 19

■ Use the locking caster to
prevent the grill from rolling.
(Fig. 19)

Fig. 15
