Four-Way Amplified Splitter Crestron SRD-SPL-4
Block Diagram

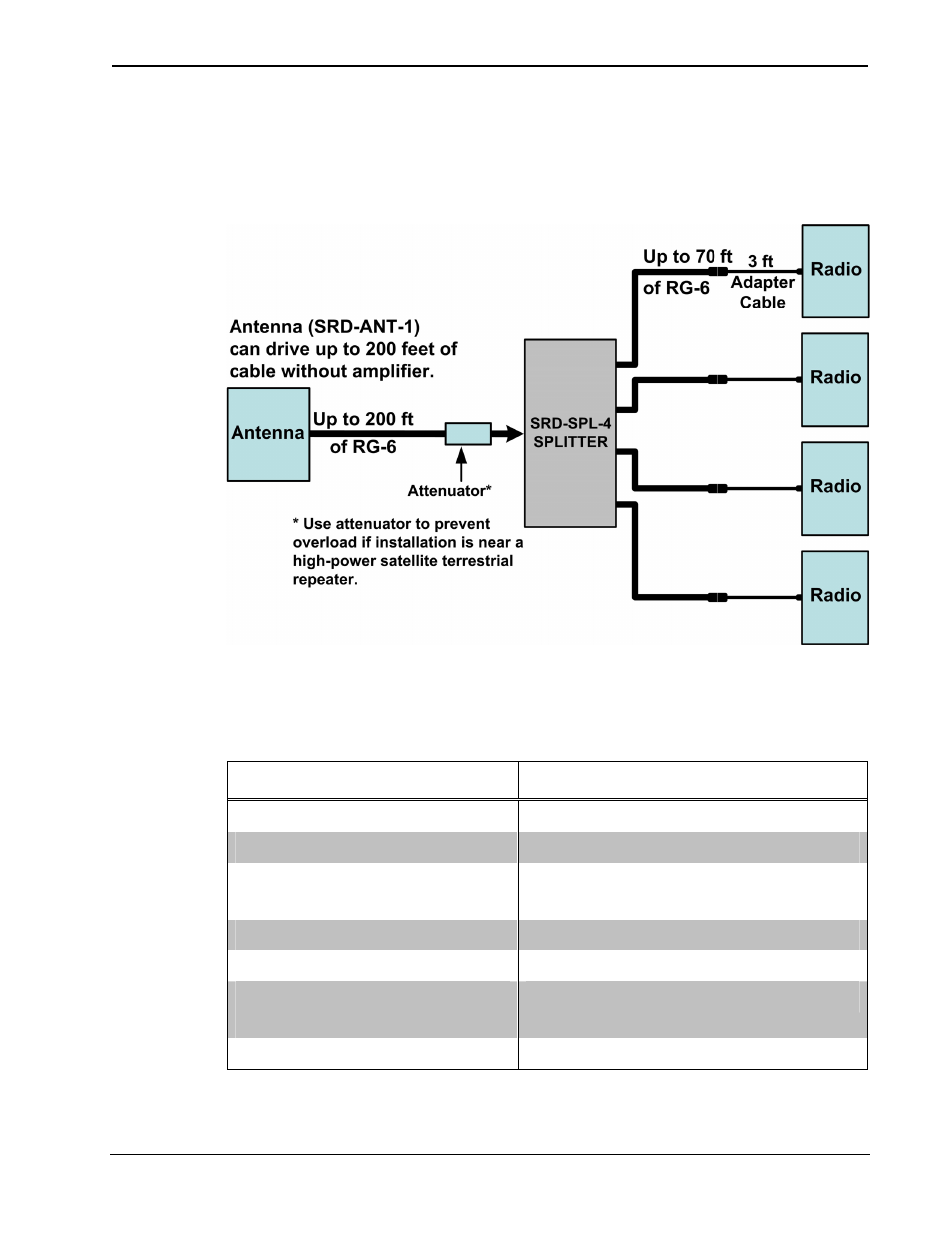

The following diagram illustrates a typical application using the
SRD-SPL-4 splitter.
SRD-SPL-4 Block Diagram
Specifications
Following are specifications for the SRD-SPL-4.
SRD-SPL-4 Specifications
SPECIFICATION DETAILS
Splitter gain @ 2.335 GHz 8 dB minimum
Max noise figure 3 dB
Max input signal -10 dBm (with supplied 20 dB
attenuator)
Current consumption 40 – 100 milliamps
DC power passing All ports diode protected
DC voltage drop (output to
input) 0.5 VDC typical
Environmental temperature -40° to 150°F (-40° to 66°C)
(Continued on following page)
2 • Four-Way Amplified Splitter: SRD-SPL-4 Installation Guide – DOC. 6727A
