LED-RAIN36 User Manual 8 2006-07-14/15:25

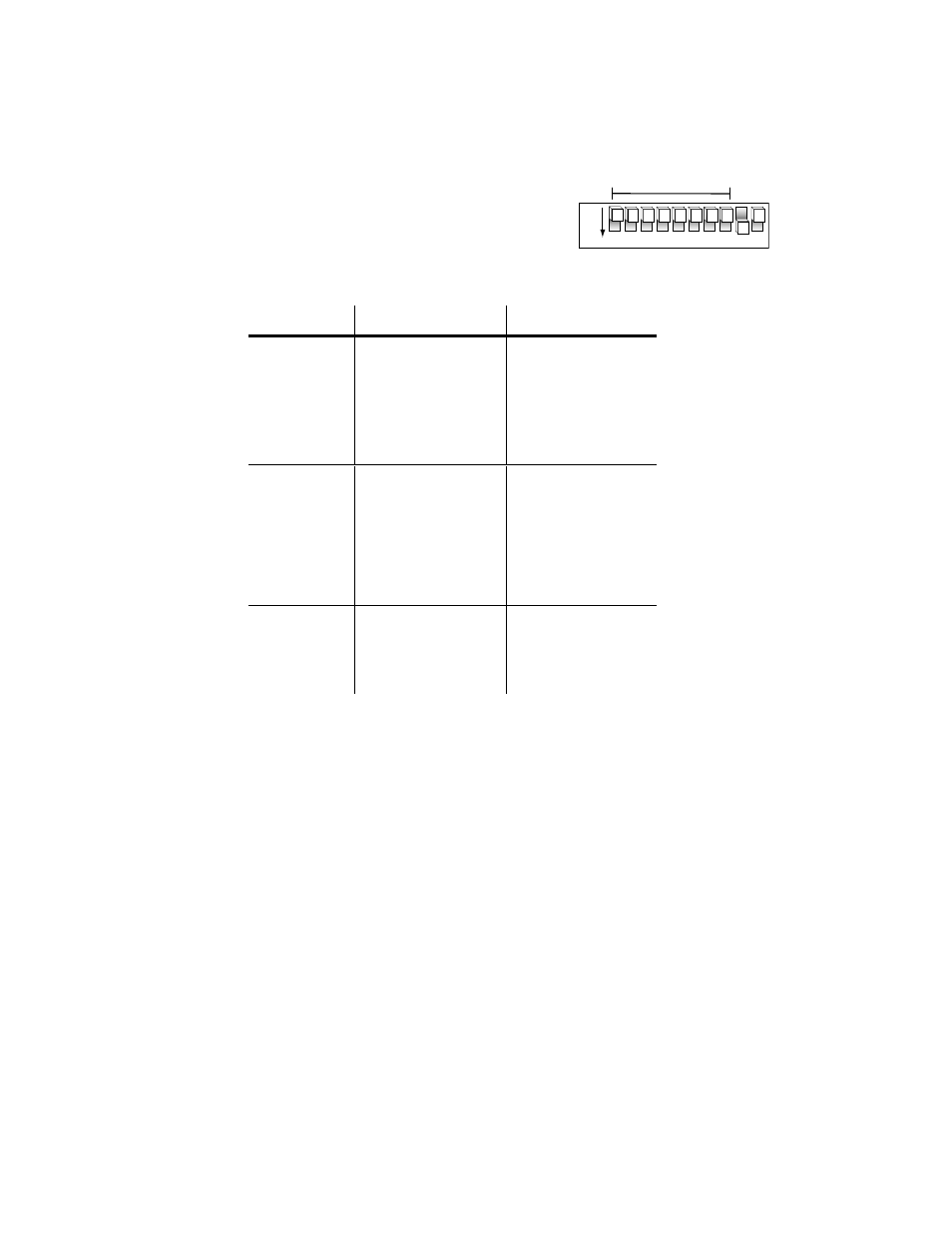

1 2 3 4 5 6 7 8 9 10
ON
Dipswitches 1 ~ 8
(adjusts either speed or intensity)
B u i l t - i n P r o g r a m O p t i o n s
There are 2 main programs that can be adjusted
by turning ON dipswitches 1 through 8 as
illustrated next. Dipswitch # 10 must be set to
OFF.
M a n u a l C o n t r o l O p t i o n s
D IPSWITCHES (ON) A DJUSTMENT P ROGRAM F UNCTION
1
2
3
4
5
6
7
8 Light Intensity
(0%) - - - - - (100%)
>
>>
>>>
>>>>
>>>>>
>>>>>>
>>>>>>>
>>>>>>>>
Solid, very narrow beam
9 & 8
9 & 7
9 & 6
9 & 5
9 & 4
9 & 3
9 & 2
9 & 1
9 Strobe Speed
(Min) - - - - - (Max)
>
>>
>>>
>>>>
>>>>>
>>>>>>
>>>>>>>
>>>>>>>>
>>>>>>>>>
Strobing
Only the number of
the dipswitch listed
in this column is
turned ON all others
remain OFF
