Wine-Mate SSR Series User Manual

Page 28

Text mode
Original mode

background image

- 27 -

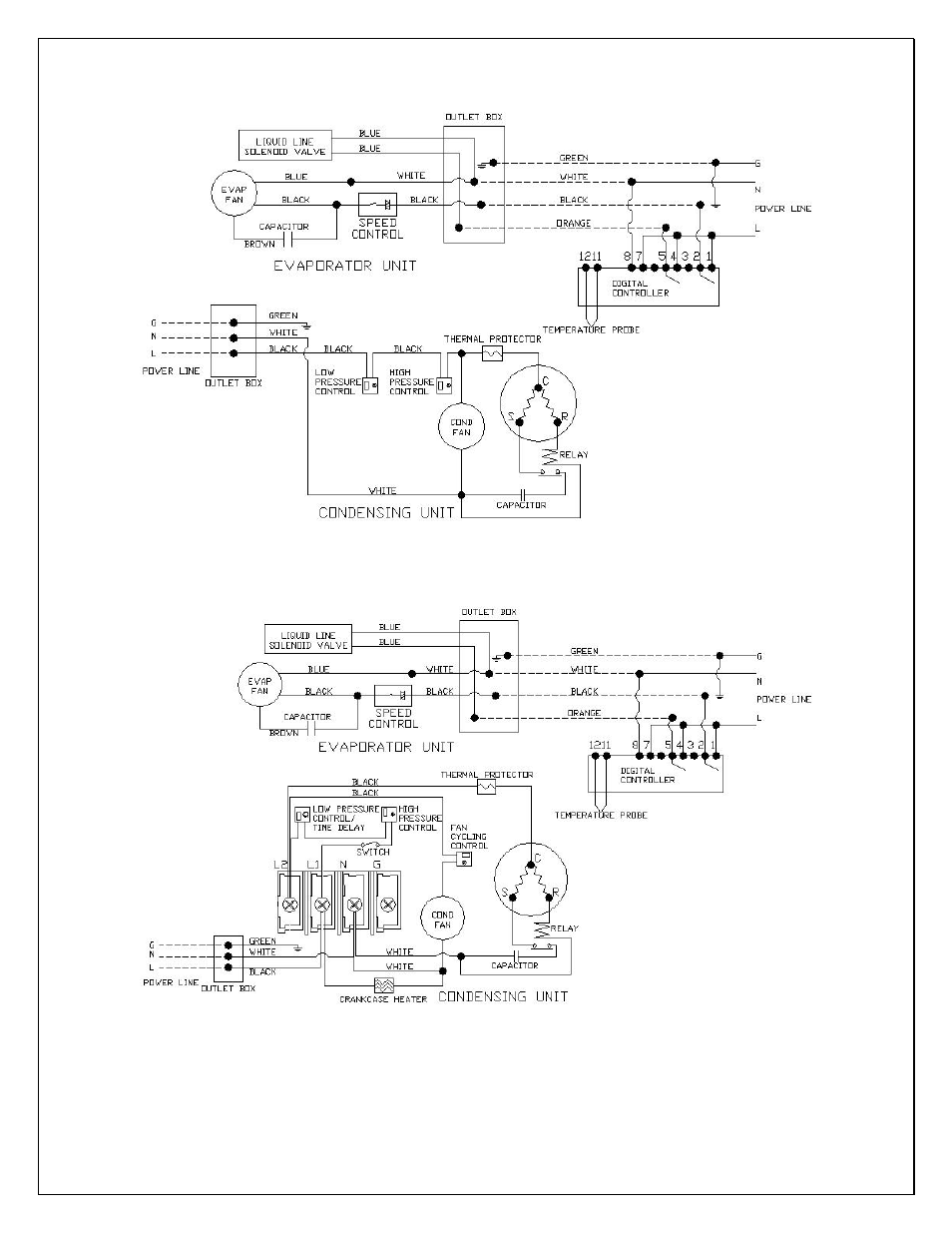

Fig. 17 WM-6500SSR Electrical Wiring Diagram

Fig. 18 Low Ambient Temperature

WM-2500~4500SSR-LA Electrical Wiring Diagram
