- 7 -
• Place the gaskets (1/2” foam tape) on the gasket lips (see Fig. 2.5).
• If top exhaust, place another gaskets along the top exhaust at the top of the
cooling unit (see Fig. 2.6).
• Move the cooling unit towards the mounting sides and push to press the
gaskets.
• Use 2 mounting brackets and 1/4” screws with 7/16” wrench to secure the
cooling unit (see Fig. 2.7).
• Attach the exhaust wall grille with screws from the rear side of the cabinet
(see Fig. 2.8).
• Press and fit the grommet into the hole at the bottom of the cooling unit to
prevent the exhaust air from going into the cabinet (see Fig. 1.1).
• Plug the cooling unit in the cabinet receptacle.
• Plug the wine cabinet.

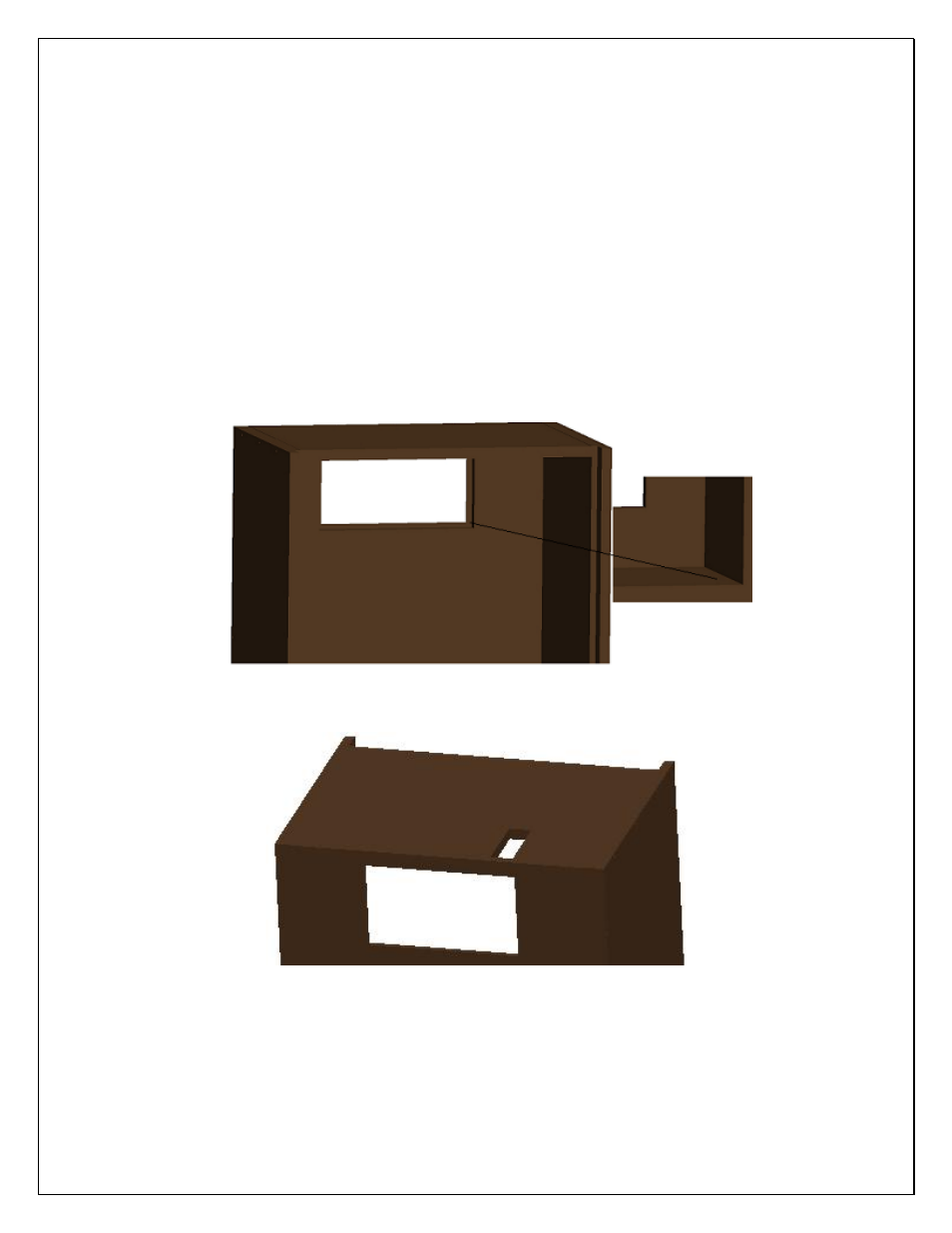

Fig. 2.2 REAR EXHAUST CUTOUT
Fig. 2.3 TOP EXHAUST CUTOUTS
