5.1 Direct in
DVD-A or SACD players etc can be connected to the 340R via its 5.1
Direct inputs allowing multi-channel music playback from these new
sources.
DVD-A and SACD both support 5.1 analog output.
To select the Direct Input press the 5.1 Direct button on the front panel
or remote.
Note: These connections are pure analog for best sound quality and no
DSP processing or Bass and Treble adjustment by the 340R is possible.
FM
75 Ω
AM
Loop 300 Ω
Video 1 Video 2 DVD
Ce
In Out CD/Aux
CD Video 1 Video 2 DVD
CD Video 1 Video 2 DVD
SW
C
SR R
SL L
5.1 Direct In
Cr/Pr Cb/Pb
In 1
Tuner Digital Optical In
Audio In Tape/MD/CDR
L
R
Digital Coax In Coax Out
Optical
Out
TV/Mon Out
In 2
In 1
Out
HDMI
Do not obstruct ventilation. Ne pas obstruer la ventilation. Ventilation nicht verschließen.
(Assignable)
Video In
In 1 (Assignable) In 2
S-Video
Com
posit
e
This device complies
with part 15 of the
FCC Rules.
Operation is subject
to the following two
conditions:
1) This device may
not cause harmful
interference;
2) This device must
accept any
interference,
including
interference that
may cause
undesired operation.
Subwoofer Out
Manufactured in an
ISO9002 approved facility
Serial No. label fitted on underside
RS232C
Updat
e
Normal
In
IR Emitter

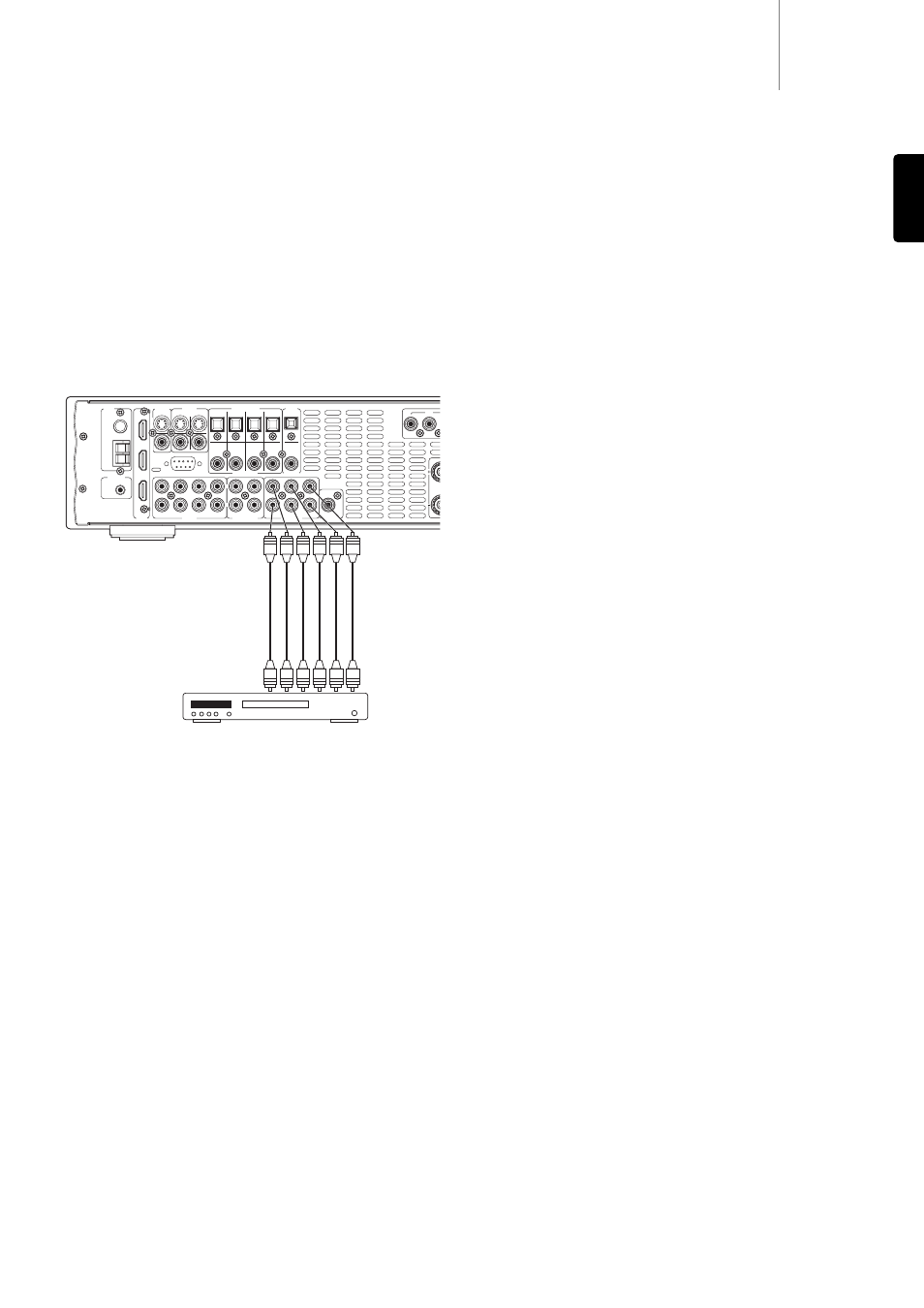

DVD-A player or SACD multi-channel player 5.1 connections
