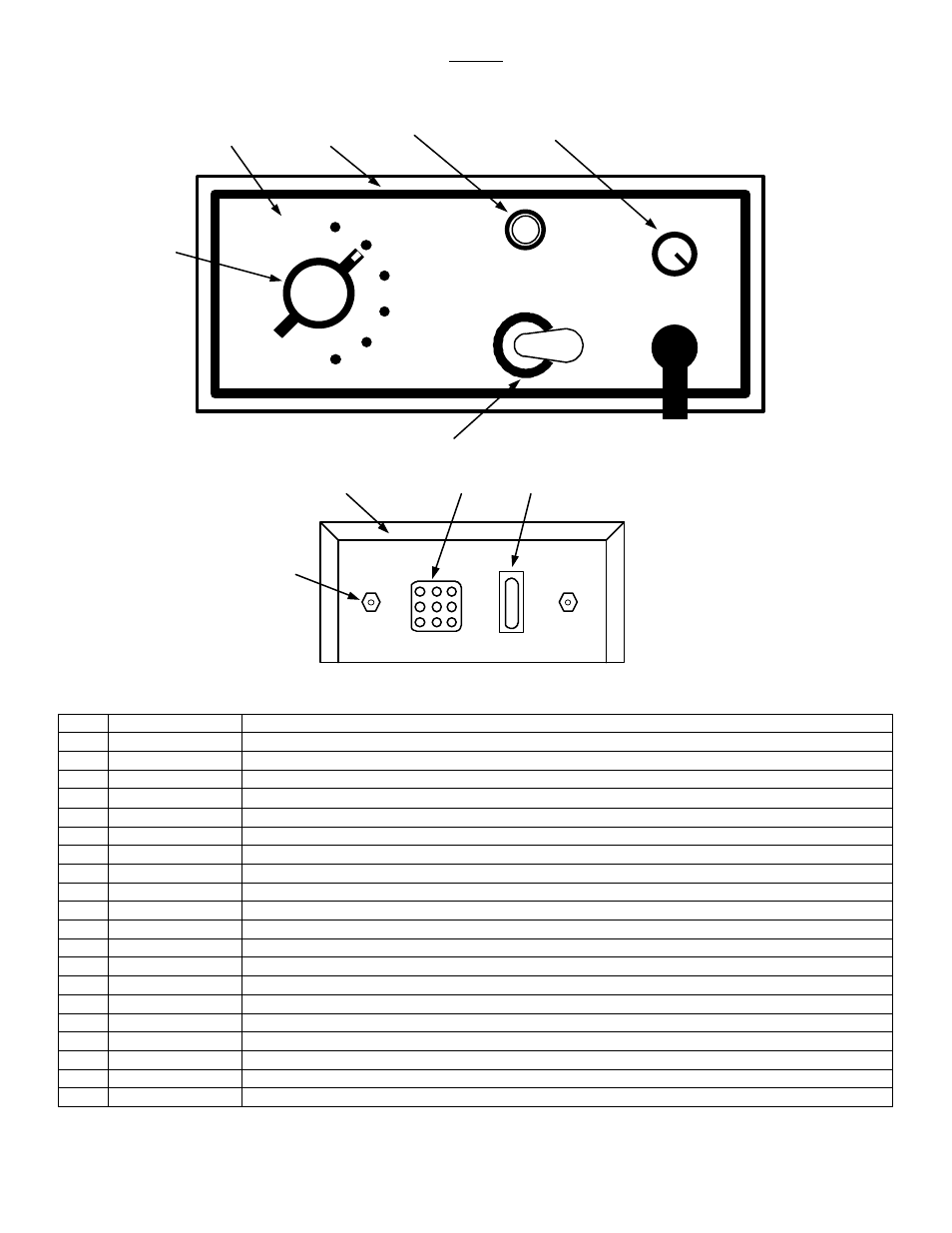

PARTS
RADIO
RADIO
HORN
HORN
MAN
MAN
WAIL
WAIL
YELP
YELP
PHASER
PHASER
SIREN
SIREN
PA
PA
VOL
VOL
SA400
SA400
ON
ON
OFF
OFF
7
12
2
10
4
8
9
1
11
13
5
3
6
Item Part #
Description
1
CP3687
Bezel, front panel for SA-400-73,83
CP3966
Bolt, mounting, 1/4-20 X 3/8 (2 required)
CP3571
Bracket, mounting
2
8025 DRS/CAP
Button, red w/ dress nut (C&K #801803000 Cap, #702501201 Nut) (for pushbutton switch)
3
CP3883
Cable, internal chassis plug wiring harness
CP2560
Cable, external wiring harness
4
CP3547
Control, PA volume (350 ohm)
5
ES00026-03
Cover with stud
6
CP3408
Fuse holder
7
CP4852
Knob, rotary function switch
8
CP4853
Knob, PA volume control
9
CP3688
Label, front panel for SA-400-73,83
#73 LAMP
Lamp, T-1-3/4 14V Mini Wedge Base (JKL #73) (used on SA-400-83 14,PG)
E85 LAMP
Lamp, T-1-1/2 28V Mini Wedge Base (JKL #E85) (used on SA-400-83 28)
CP3570
Microphone
CP3633
Microphone clip with mounting screws
10
CP3692
Switch, pushbutton siren (C&K #8121SD2A2GE, must cut off tabs)
11
2FA53-73
Switch, toggle power (Carling Switch #2FA53-73)
12
CP3548
Switch, rotary function (top tabs folded and soldered)
13
CP4119
Transistor, output (2 required) (Industry standard TIP36C, Not Texas Instruments)
