Install the Grease Pan.
Ц
Ц
Install the Grease Cup.
17-A
17-B

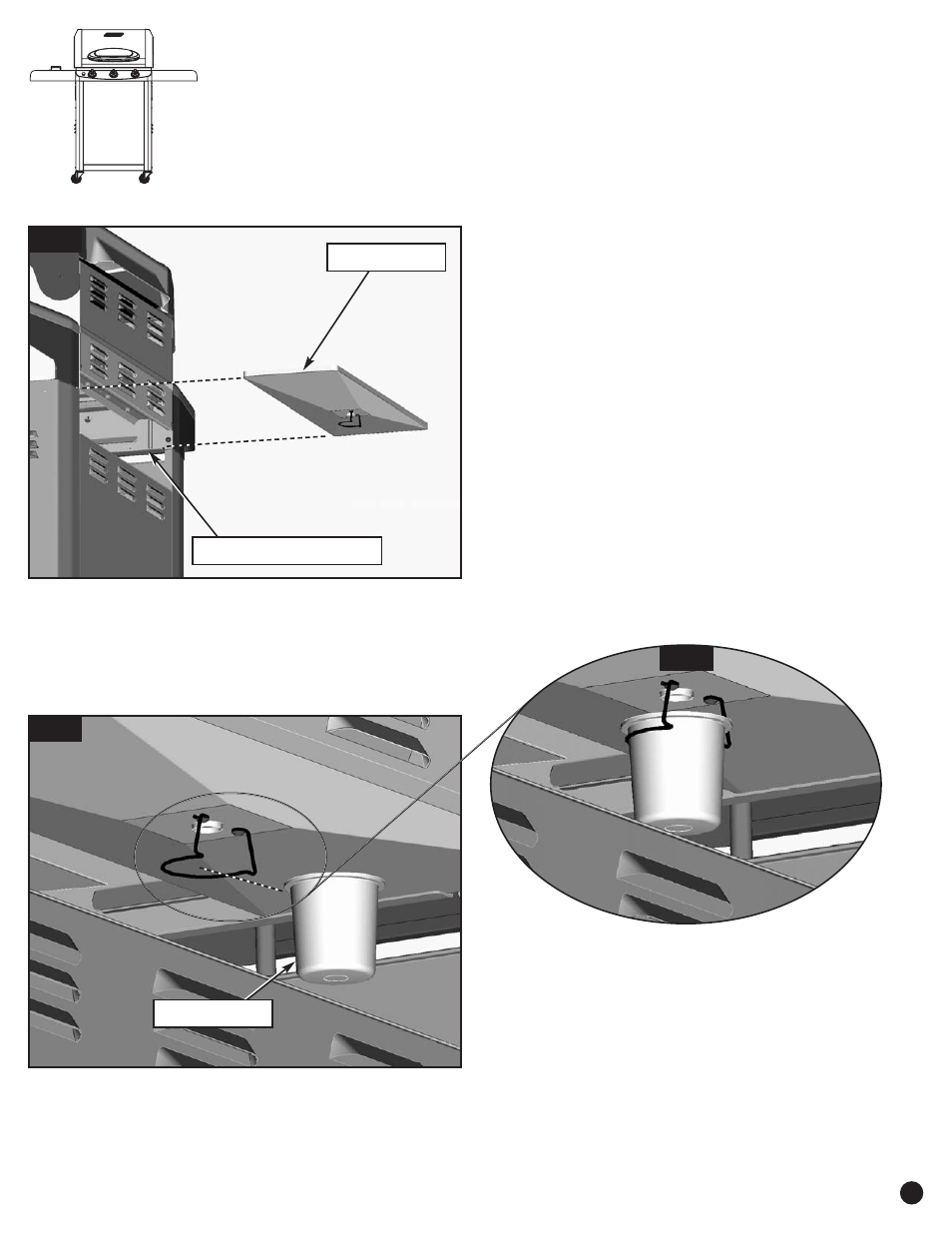

17-A. Slide the Grease Pan Assembly into the back of the grill.
17-B. Place the Grease Cup into the Grease Cup Support.
Note: Pull the Grease Pan outward slightly for easier access
when installing/removing the Grease Cup.
Ц
Ц
After the Grease Cup is installed, push the Grease Pan
forward until it contacts the location stops.
Grease Cup
Grease Pan
Step
17
Grease Pan Support
17-C
25
