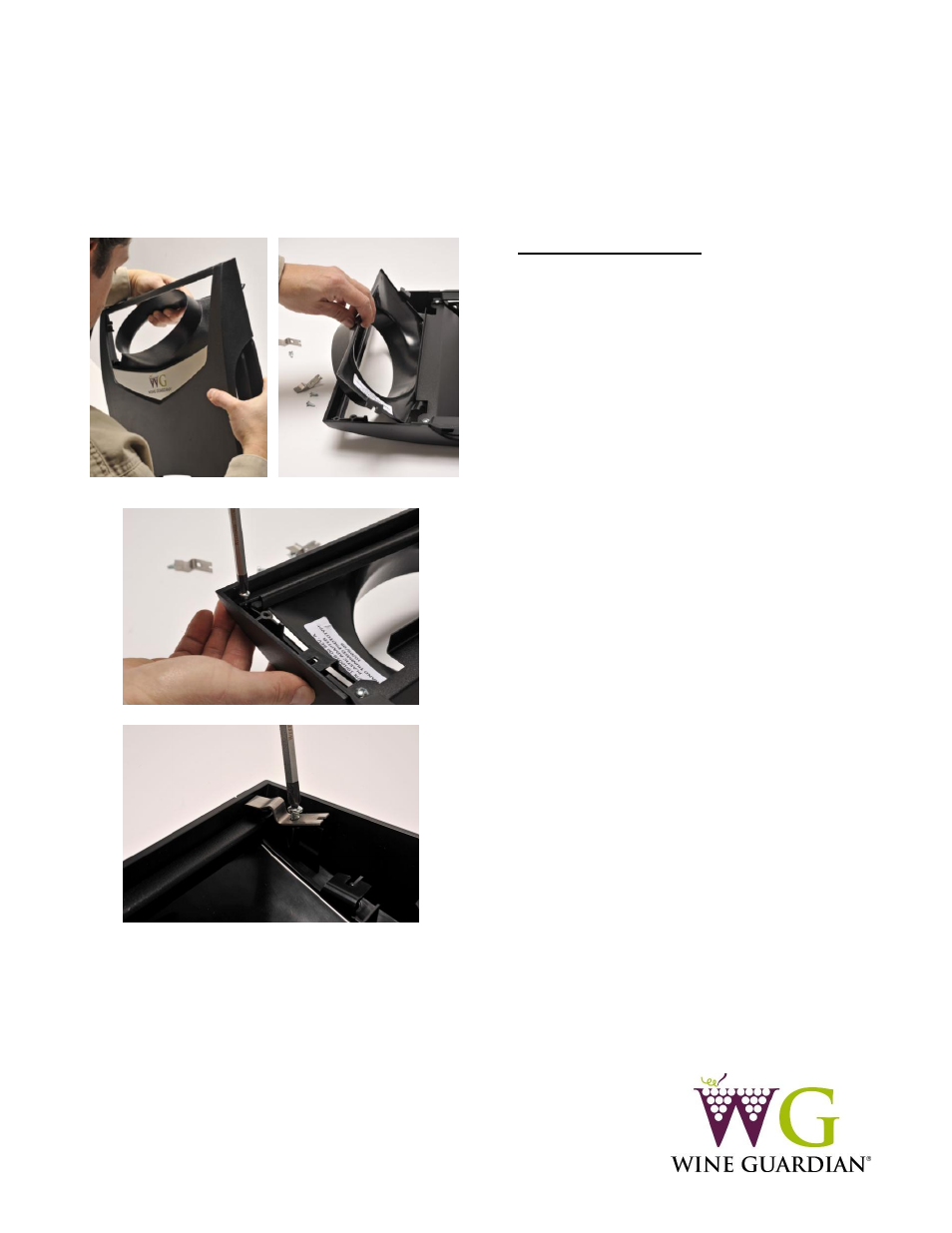

6. Insert the duct collar by carefully
inserting the bottom tabs into the
plastic slots located at the base of the
opening as shown.
7. Slip the oval portion of the duct collar
through the opening until the duct
collar flange site is flush with the
inside of the cover panel.
Please
note, you may need to slightly
squeeze down the oval portion of the
duct collar in order to clear the
opening.
8. Re-install the brackets and clips
removed in step 4 and fasten each
securely using the original
hardware.
9. Re-install the condenser side
cover panel by slipping the top
clips onto the top flange area of
the TTW aluminum frame. Ensure
the metal clips are engaged with
the frame and are secure. Failure
to do so may result in damage to
the cover or improper sealing of
the cover panel.
10. Re-install the two screws at the
base the cover panel.
Wine Guardian® Through-the-Wall
How to Install Optional Duct Collars and Duct Work
Step 1
– Continued
