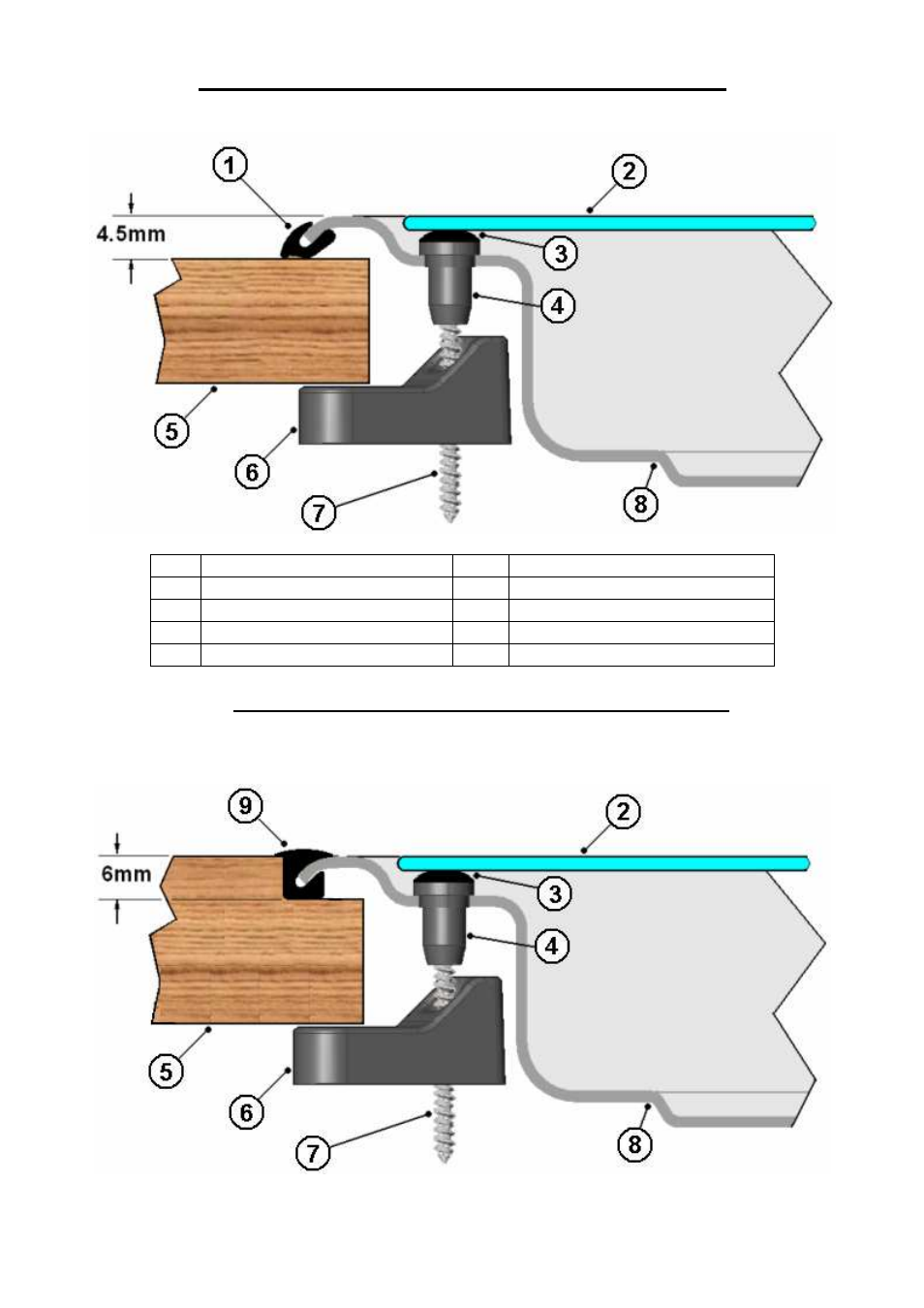

SURFACE MOUNT FIXING – SERIES 330, 340 & 345
FIG. 6
1 Surface mounting bezel 2 Glass Lid
3 Bump stop 4 Clamping bush
5 Worktop 6 Clamping arm
7 Clamping screw 8 Pressing
9 Flush mounting bezel
FIG. 7 FLUSH MOUNT FIXING – SERIES 330, 340 & 345
An additional 6mm deep rebate MUST be cut into the worktop to accept the
‘Flush Mounting Bezel’.
