Operating the Refrigerator Controls
AC Operation 120 volts AC (108 volts min.-132 volts max.)
12 volts DC - control voltage (10.5 volts min. - 15.4 volts max.)
The refrigerator operates on these energy sources. Operation out of these limits can damage the refrigerator electrical components
and will void the warranty.
Control panel:

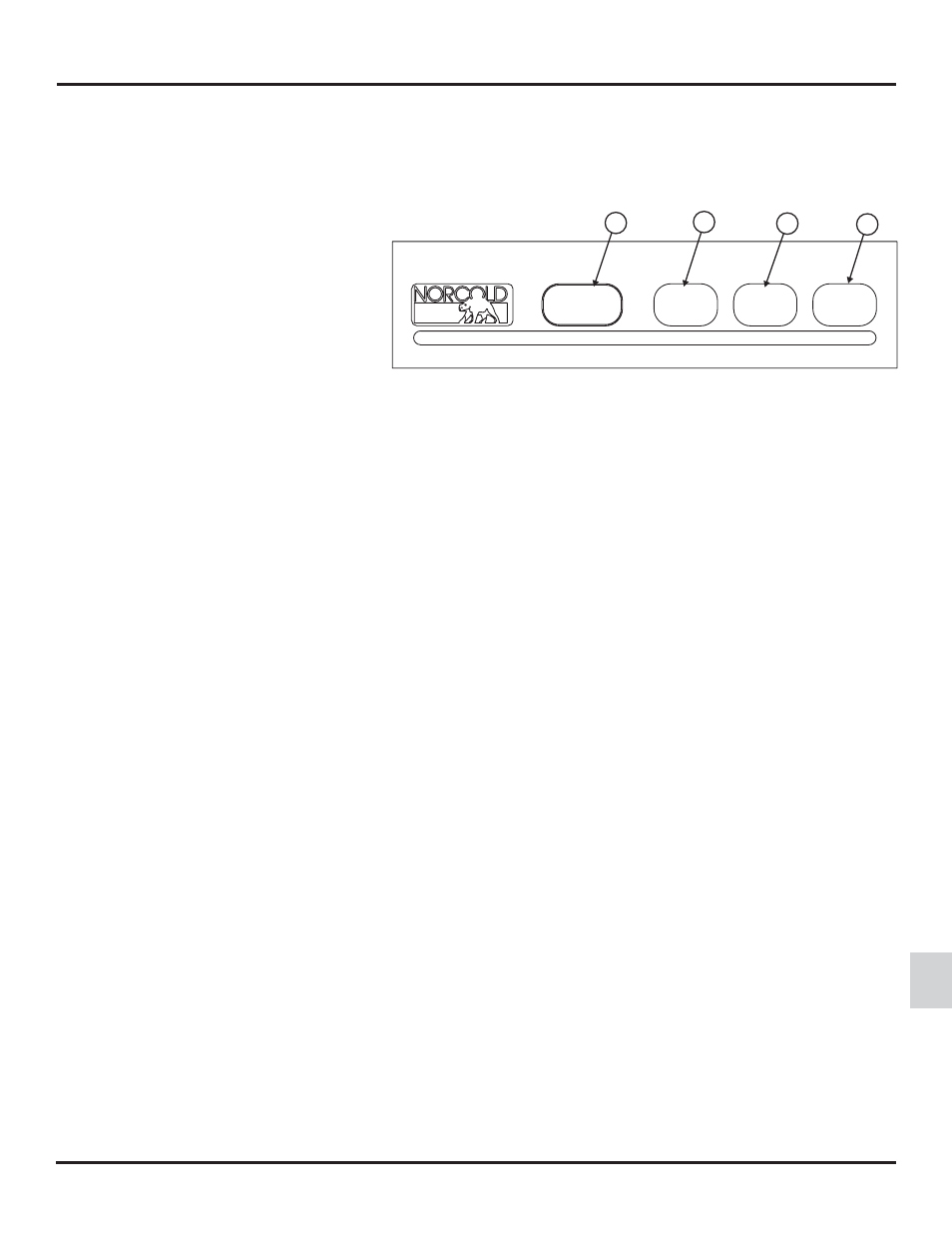

The refrigerator control panel (See Art01333) is
between the freezer compartment and the fresh
food compartment. To maintain the operating
control functions of the refrigerator, a 12 volt DC
power supply is necessary. The refrigerator
receives DC power from the 12 volt system of the
vehicle; either an auxillary battery, a converter, or
the vehicle engine battery.
The ON / OFF button [30] starts and shuts down
the refrigerator:
- To turn on the refrigerator, push and release the ON / OFF button.
- To turn off the refrigerator, push the ON / OFF button for one second and then release.
The SET TEMP button [32] controls the temperature adjustment of the freezer and the fresh food compartment.
- Push the SET TEMP button and the temperature setting (the numbers “1-9”) show in the center display [33].
- The number “9” is the coldest temperature setting.
- Push and hold the SET TEMP button and the temperature setting changes.
- Release the SET TEMP button when the temperature setting that you wish appears.
- After ten seconds, the temperature setting will go out and only a green power ON light remains.
NOTE: Push and release the MODE button [4] to show “AC”, the current mode of operation, in the center display for 10 seconds.
- If 120 volts AC is not available to the refrigerator:
- The fault codes “no” “AC” shows in the center display and an audible alarm sounds.
If 120 volts AC is available to the refrigerator, but is not operating correctly:
- A fault code shows in the center display.
- An audible alarm starts.
- Refer to the “Fault Codes” section of this manual.
- If 120 volts AC is not available to the refrigerator:
- The fault codes “no” “AC” shows in the center display and an audible alarm sounds.
If 120 volts AC is available to the refrigerator, but is not operating correctly:
- A fault code shows in the center display.
- An audible alarm starts.
- Refer to the “Fault Codes” section of this manual.
1 COLD-9 COLDEST SET TEMP MODE ON / OFF
on
30 32 33
Art01333
31
