Installation Manual 14
NOTE: The doors are made to accept decorative panels. The decorative panels must be
3/16 inch or less in thickness. Install the decorative door panels in the refrigera-
tor doors before installing the refrigerator in the vehicle.
1. Make two upper door panels that are 16 13/64 inches wide x 18 3/8 inches high:
- Raised panels must be centered on each door and no larger than 15 11/32 inchs
wide x 17 17/32 inches high.
2. Make two lower door panels that are 16 13/64 inches wide x 41 13/64 inches high:
- Raised panels must be centered on each door and no larger than 15 11/32 inchs
wide x 40 11/32 inches high.
3. Install the decorative door panels:
- Pull the panel retainer [37] off of each door [39] (See Art01797).
- Push a decorative door panel [38] into the slots of each door.
- Make sure that each panel retainer is correctly positioned and push the
curved snap [125] of the panel retainer [37] inside of the curved snap [126] of
the door (See Art01794).
Install Decorative Door Panels (non-metal door models)
Install an Air Deflector (optional)
If the floor plan has the refrigerator on the rear
wall of the vehicle, obey all of the vent installa-
tion as written in the “Install the Lower and
Upper Vents” section of this manual. Install
the roof exhaust vent so that:
- The sloped end of the roof exhaust vent is
toward either side of the vehicle.
- The roof exhaust vent is perpendicular to
the air flow over the vehicle.

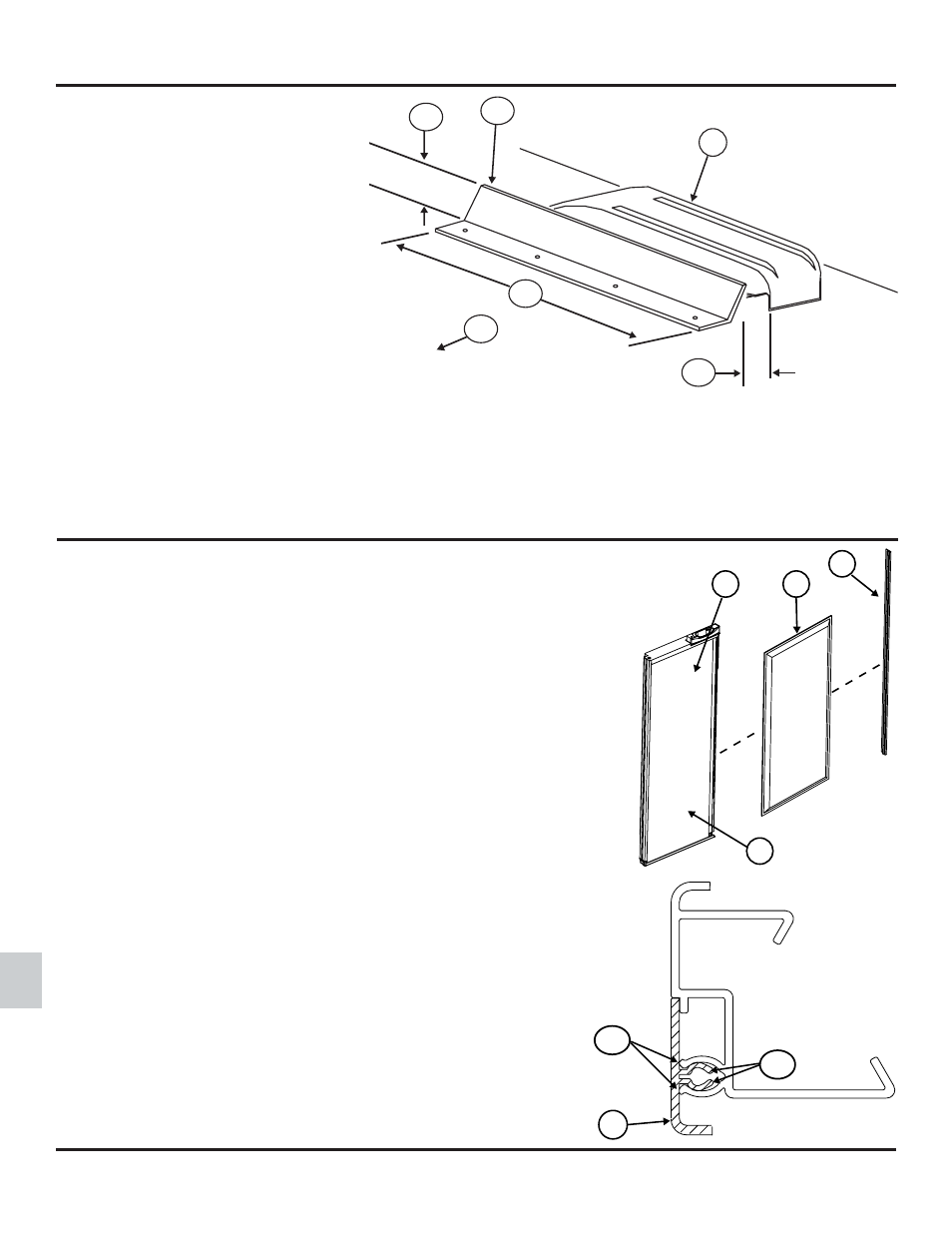

Install an air deflector on the roof of the vehicle
between the roof exhaust vent and the front of
the vehicle (See Art01767).
- Make sure that the air deflector [175] is
between the roof exhaust vent [24] and the
front of the vehicle [179].
- Make sure that the air deflector is at least 3 1/2 inches high [176].
- Make sure that the overall width [177] of the air deflector is 32 7/8
- Make sure that the distance between the air deflector and the roof exhaust vent is between 2 and 3 inches [178].
179
175
24
176
177
178
Art01767
39 38
37
39
Art01797
37
125
126
Art01794
