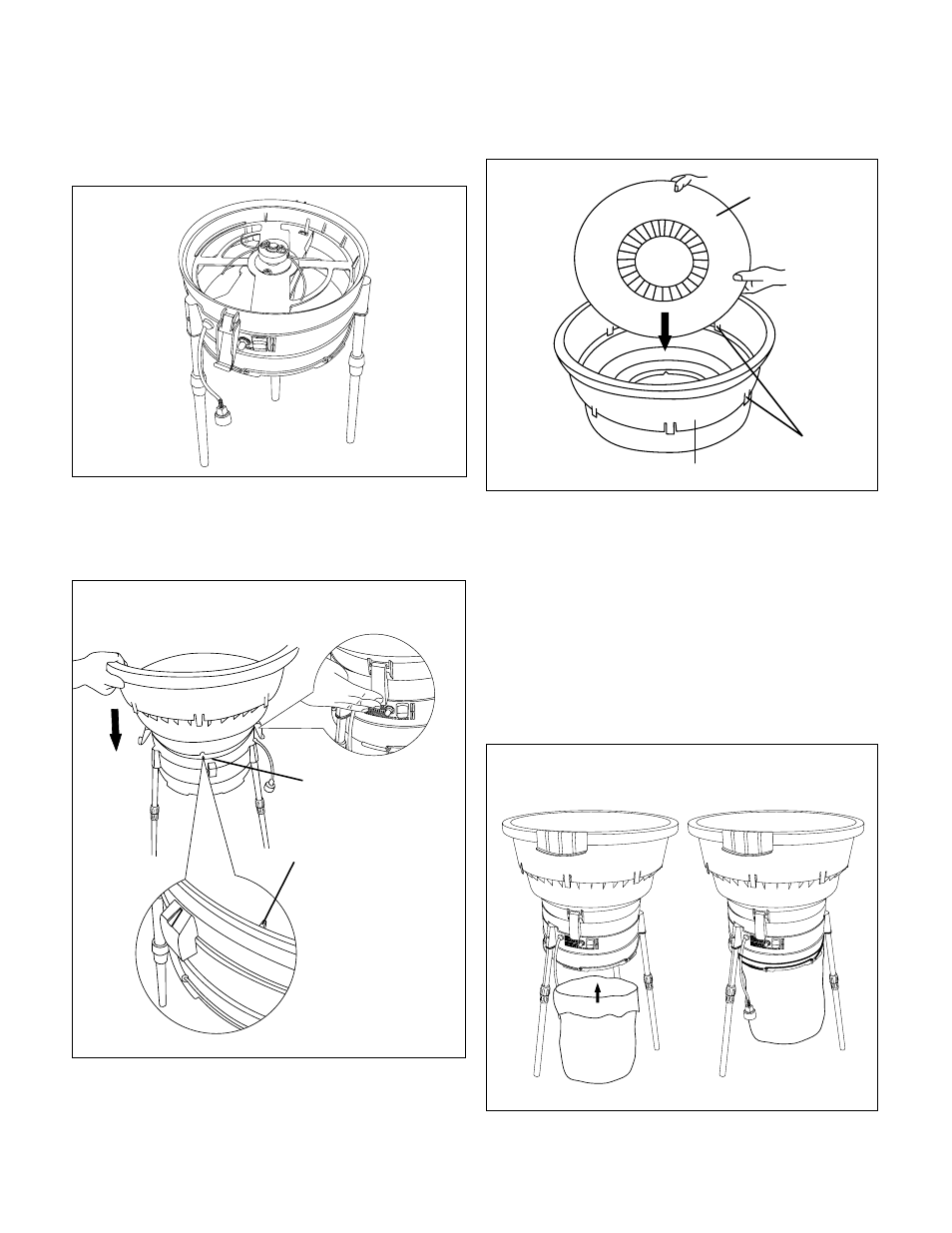

Assembling the Mulching Power Head

1. Make sure the motor housing sits securely on the

three legs (Fig. 7).

2. Fit the funnel onto the motor housing, aligning the

funnel gap with the motor housing rib. Use the clamps

located on the motor housing to secure the funnel in place

(Fig. 8).

3. Fit the funnel cover in the funnel. Use the 8 locking tabs

on the funnel to ensure a secure fit (Fig. 9).

Fitting the Collection Bag

NOTE: This unit does not come with a leaf collection bag.

You must supply your own. (You may use a plastic, paper, or

cloth collection bag depending on your preferred method of

waste disposal.)

1. Open the bag and fit it around the motor housing. Use the

elastic strap located at the base of the unit to secure the

bag in place (Fig. 10).

NOTE: You can remove the mulcher stand and fit the

hopper onto a leaf-bag lined trash container for easy and

convenient disposal of the shredded waste.

Fig. 7

Gap lines up with rib

Motor housing rib guide

Fig. 8

Fig. 9

Funnel cover

Locking tabs

Funnel

Fig. 10
