Arctic Compact models 8/1, 8/2, 8/3, 8/4

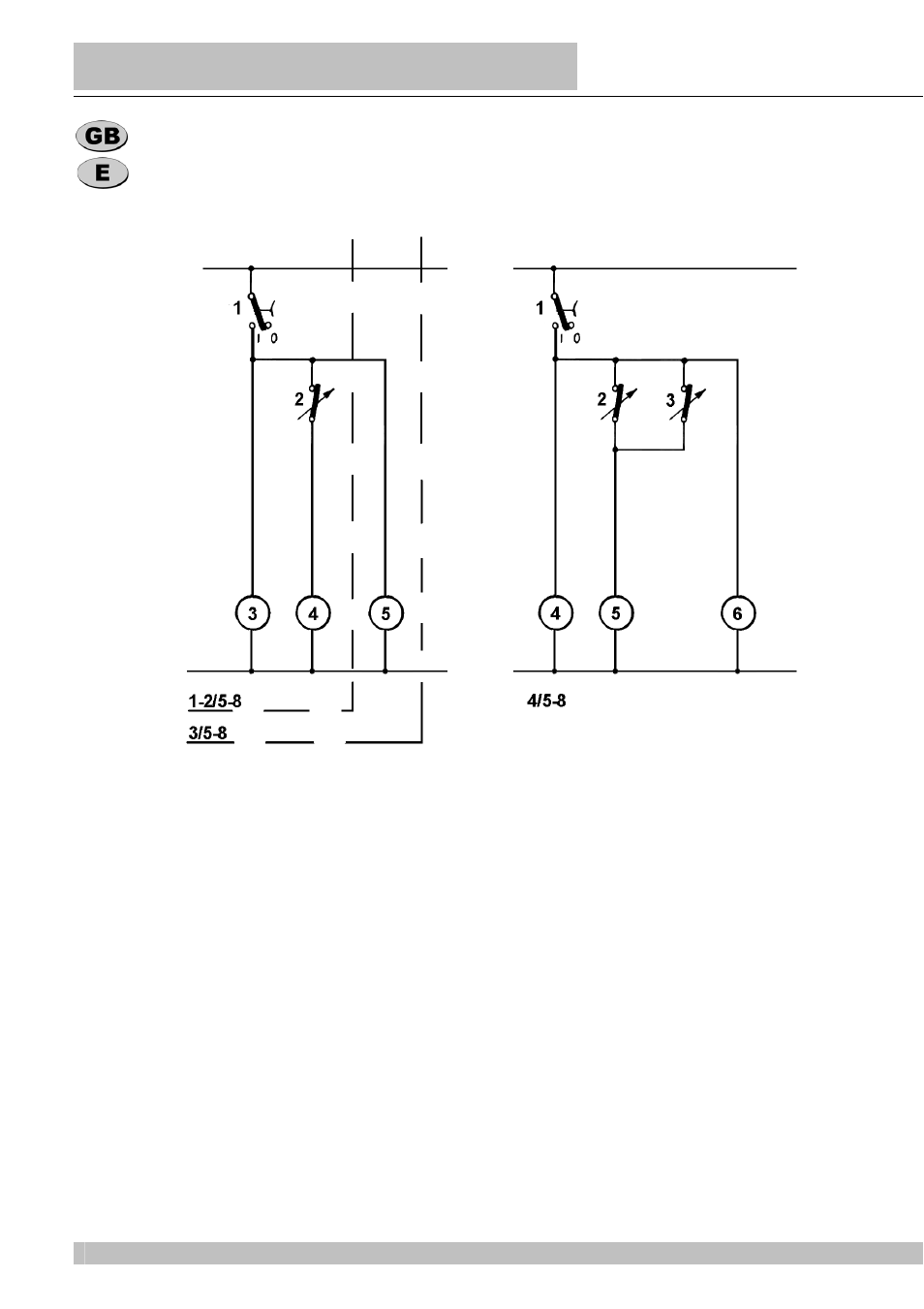

WIRING DIAGRAM
ESQUEMA ELECTRICO
1/5-8 - 2/5-8 - 3/5-8
1
Switch
Interruptor
2
Thermostat
Termostato
3-5
Pump/mixer
Bomba/agitador
4
Compressor
Motocompresor
4/5-8
1
Switch
Interruptor
2-3
Thermostat
Termostato
4-6
Pump/mixer
Bomba/agitador
5
Compressor
Motocompresor
