CyberPower Systems Professional Rack Mount UPS 2200VA User Manual
Page 2
Entire contents copyright ©2004 CyberPower Systems B.V., All rights reserved.
Reproduction in whole or in part without permission is prohibited.
PowerPanel and PowerPanel Plus are trademarks of CyberPower Systems (USA) Inc.

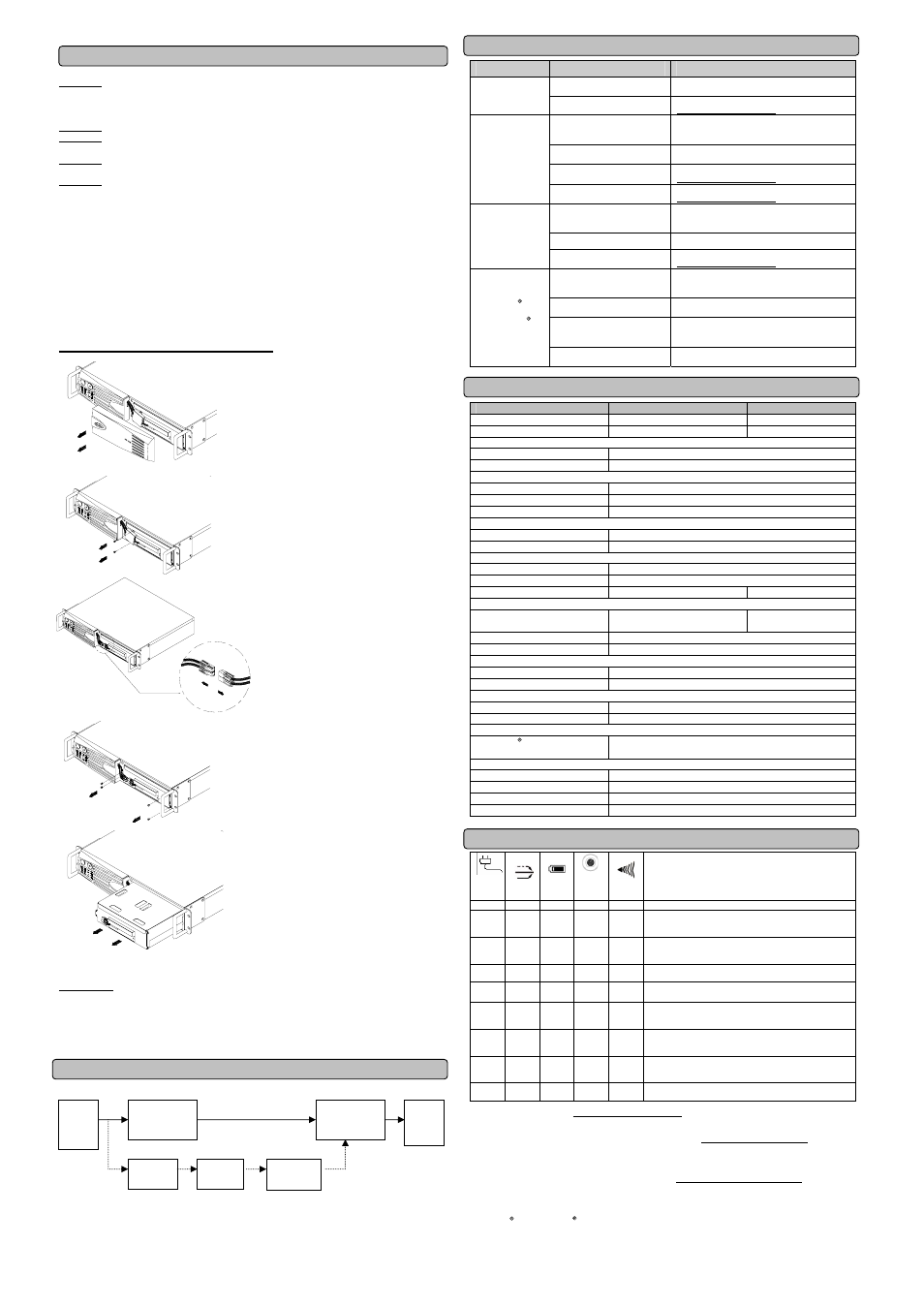

BATTERY REPLACEMENT AND STORAGE
CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery.
Service the battery under the supervision of personnel knowledgeable of batteries and their
precautions. Keep unauthorized personnel away from batteries. If you have questions, contact
your dealer or call the number in this manual for information on battery replacement.
CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.
CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in a
fire, as it may explode. Follow all local ordinances regarding proper disposal of batteries.
CAUTION! Do not open or mutilate the batteries. Release electrolyte is harmful to the skin and eyes
and may be toxic.
CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take the
following precautions before replacing the battery:
1. Remove all watches, rings or other metal objects.
2. Only use tools with insulated handles.
3.
DO NOT lay tools or other metal parts on top of battery or any battery terminals.
4. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of
ground.
CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK!
The likelihood of such shock will be reduced if such grounds are removed during installation
and maintenance (applicable to a UPS and a remote battery supply not having a grounded
circuit).
5. Batteries are consider
HAZARDOUS WASTE and must be disposed of properly. Contact your
local government for more information about proper disposal and recycling of batteries.
6. Turn off and unplug all connected equipment.
7. Turn the UPS off and unplug it from the AC power source.
BATTERY REPLACEMENT PROCEDURE:
STORAGE
First turn off your UPS and disconnect its power cord from the wall outlet. Disconnect all cables
connected to the UPS to avoid battery drain. To store your UPS for an extended period, cover it and
store with the battery fully charged. Recharge the battery every three months to insure battery life. If
the battery remains uncharged for an extended period of time, it may suffer permanent loss of
capacity.
Block Diagram
TROUBLE SHOOTING
Problem
Possible Cause
Solution
Batteries are not fully charged.
Recharge the battery by leaving the UPS plugged
in.
The UPS does not
perform expected
runtime.
Battery is slightly worn out.
Contact Cyber Power Systems at
The on/off switch is designed to
prevent damage by rapidly
turning it off and on.
Turn the UPS off. Wait 10 seconds and then turn
the UPS on.
The unit is not connected to an
AC outlet.
The unit must be connected to a 220-240V
50/60Hz outlet.
The battery is worn out.
Contact Cyber Power Systems at
The UPS will not
turn on.
Mechanical problem.
Contact Cyber Power Systems at
Circuit breaker is tripped due to
overload.
Turn the UPS off and unplug at least one piece of
equipment. Wait 10 seconds, reset the circuit
breaker and then turn the UPS on.
Batteries are discharged
Allow the unit to recharge for at least 4 hours.
Outlets do not
provide power to
equipment
Unit has been damaged by a
surge or spike.
Contact Cyber Power Systems at
The serial/USB cable is not
connected.
Connect the serial/USB cable to the UPS unit and
an open serial port on the back of the computer.
You must use the cable that came with the unit.
The serial/USB cable is
connected to the wrong port.
Try another serial/USB port of your computer.
The unit is not providing battery
power.
Shut down your computer and turn the UPS off.
Wait 10 seconds and turn the UPS back on. This
should reset the unit.
PowerPanel
Business Edition
or PowerPanel is
inactive (all icons
are gray).
The serial cable is not the cable
that was provided with the unit.
You must use the cable included with the unit for
the software.
1. Remove the right side front panel.
2. Remove the two retaining screws of the
cable protection cover then remove the
cover.
3. Disconnect the black and red cable.
4. Remove the four retaining screws.
5. Pull the battery pack out from the unit.
6. Slide a new battery pack into the unit.
Assemble the screws, cover, cable and
front panel in the reverse sequence of
above steps.
REMINDER: Recharge the unit for 4 – 8
hours to ensure the UPS performs expected
runtime.
TECHNICAL SPECIFICATIONS
Model
PR1500E
PR2200E
Capacity (VA)
1500VA
2200VA
Capacity (Watts)
1000W
1600W
Input
Input Voltage Range
220-240Vac
Frequency Range
50/60 Hz
t
u
p
t
u
O
On Battery Output Voltage
Pure Sine Wave at 230Vac +/- 7%
On Battery Output Frequency
50/60 Hz
Overload Protection
On Utility: Circuit Breaker, On Battery: internal current limiting
Surge Protection and Filtering
Lightning / Surge Protection
Yes
Network Protection
RJ45 (One In/One Out)
Physical
Total # of UPS Receptacles
6
Maximum Dimensions
43.3cm*8.8cm*38.8cm
Weight (Kg)
26.4
32.1
Battery
Sealed Maintenance Free Lead Acid
Battery
12V / 7AHx4
12V / 9AHx4
User Replaceable
Yes, Hot Swappable Battery Pack
Typical Recharge Time
8 Hours
Warning Diagnostics
Indicators
Power On, Using Battery, AVR, Load Level, Battery Level
Audible Alarms
On Battery, Low Battery, Overload, Self-test
Environmental
Operating Temperature
+32°F to 95°F ( 0°C to 35°C )
Operating Relative Humidity
0 to 95% NON-CONDENSING
Communication
PowerPanel Business edition
Software
Windows 98/ME/2000/NT/XP, Server 2003
Management
Auto-Charger
Yes
Auto-Restart
Yes
USB
Yes
SNMP/HTTP network function
Optional
DEFINITIONS FOR ILLUMINATED LED INDICATORS
Power
On
AVR Using
Battery
Circuit
Breaker Alarm
Condition
On
Off
Off
Set
Off
Normal
On
Slow
flash
Off
Set
Off
AVR- Max. boost 13% of input voltage for output
regulation while input voltage is from 8% to 15% under
nominal.
On
Rapid
flash
Off
Set
Off
AVR- Max. boost 26% of input voltage for output
regulation while input voltage is from 15% to 26% under
nominal.
ON
On
Off
Set
Off
AVR- Max. buck 11% of input voltage for output regulation
while input voltage is from 8% to 26% over nominal.
Off
Off
On
Set
Two
Beeps
Utility Failure- The UPS is providing battery power to the
outlets.
Off
Off
On
Set
Rapid
Beeps
Utility Failure- The UPS is providing battery power.
Rapid beeps indicate the battery will run out of charge
within a few minutes.
On/Off
On/ Off
/Flash
On/Off
Set
Long
Beep
Overload- Please turn the UPS off and unplug at least one
piece of equipment from the UPS. Wait 5 seconds, reset
the circuit breaker and restart the UPS.
Off
Off
On
Up
Long
Beep
Overload- Please turn the UPS off and unplug at least one
piece of equipment from the UPS. Wait 5 seconds, reset
the circuit breaker and restart the UPS.
Off
Off
Off
Set
Off
Surge Protection Malfunction- Power surge has
damaged the unit. Please contact CyberPower Systems.
AVR Switch
Transformer
Output
Input
Battery
Battery
Charger
Inverter
(DC/AC)
For more information, visit eu.cyberpowersystems.com or contact
CyberPower Systems B.V. Flight Forum 3545,5657DW Eindhoven,The Netherlands
Tel: + 31(0)40 2348170, Fax : + 31(0)40 2340314, E-MAIL: [email protected]
CyberPower Systems Inc. (USA) 4241 12th Avenue East Suite 400 Shakopee, MN 55379 ,
U.S.A.
Tel: +1 952 4039500, Fax: +1 952 4030009, E-MAIL: [email protected]
CyberPower warrants to you, the original purchaser, that CyberPower UPS will be free from defects in design,
assembly, materials and workmanship for two years ( battery is only one year) from the date of original purchase.
Any warranty services, please contact your local dealers or distributors.
