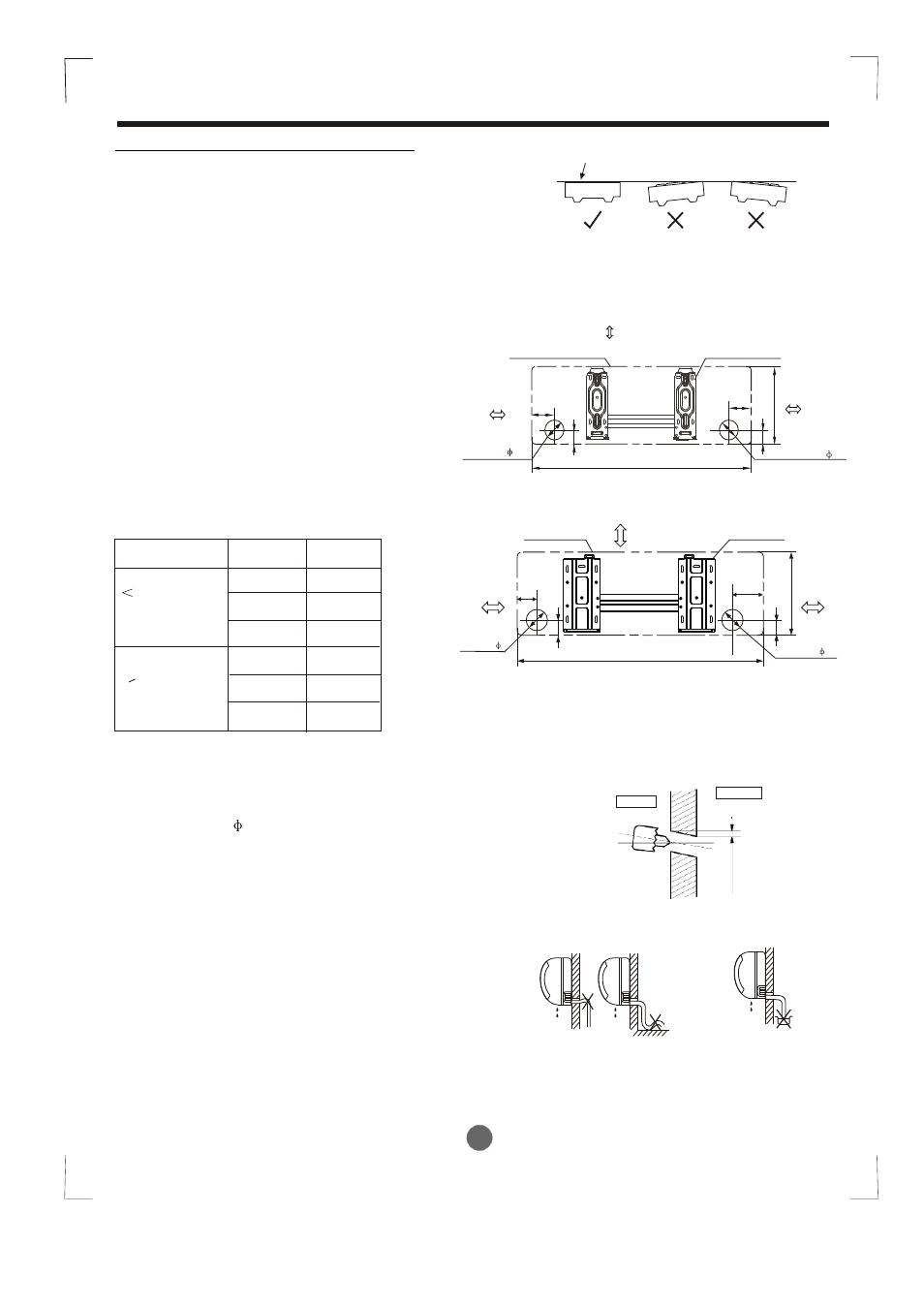

INSTALLATION INSTRUCTIONS
Fig.4
Correct orientation
of Installation Plate
Wall
Indoor
Outdoor
5
-7
m
m
Fig.6
Fig.5
Indoor unit installation(wall-mounted type)
2. Drill a hole in the wall
Note:
1. Fit the Installation Plate
1. Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
2. If the wall is made of brick, concrete
or the like, drill eight (8) 5mm diameter
holes in the wall.Insert Clip anchor for
appropriate mounting screws.
3. Fit the installation plate on the wall
with eight (8) type “A” screws.
Fit the Installation Plate and drill
holes in the wall according to the
wall structure and corresponding
mounting points on the installation
plate. The Installation Plate may be
slightly different according to the
different models of indoor unit.
(Dimensions are in “mm” unless
otherwise stated)
1. Determine hole positions according
to the diagramdetailed in Fig.5. Drill
one (1) hole (
65mm) slanting slightly
to outdoor side.
2. Always use wall hole conduit when
drilling metal grid, metal plate or the like.
3. Connective Pipe and Drainage
Installation
1. Run the drain hose sloping downward.
Do not install the drain hose as
illustrated in Fig.7.
Drainage
Fig.7
Do not block water flow by a rise.
Do not put the end of
drain hose into water.
A
4
0
B
Right rear side
refrigerant
pipe hole 65
Installation plate Indoor unit outline
Left rear side
refrigerant
pipe hole 65
150mm or more to ceiling
120mm or
more to wall 120mm or
more to wall 90
4
0
45
Model A(mm)
710
B(mm)
250
12000Btu/h
790 265
815
280
>12000Btu/h
780 270
780 270
750 250
Indoor unit outline
12cm or
more to wall
12cm or
more to wall
Left refrigerant
pipe hole 65 Right refrigerant
pipe hole 65
Installation plate
A
45
B
15cm or more to ceiling
45 96
45
(1)
(2)
