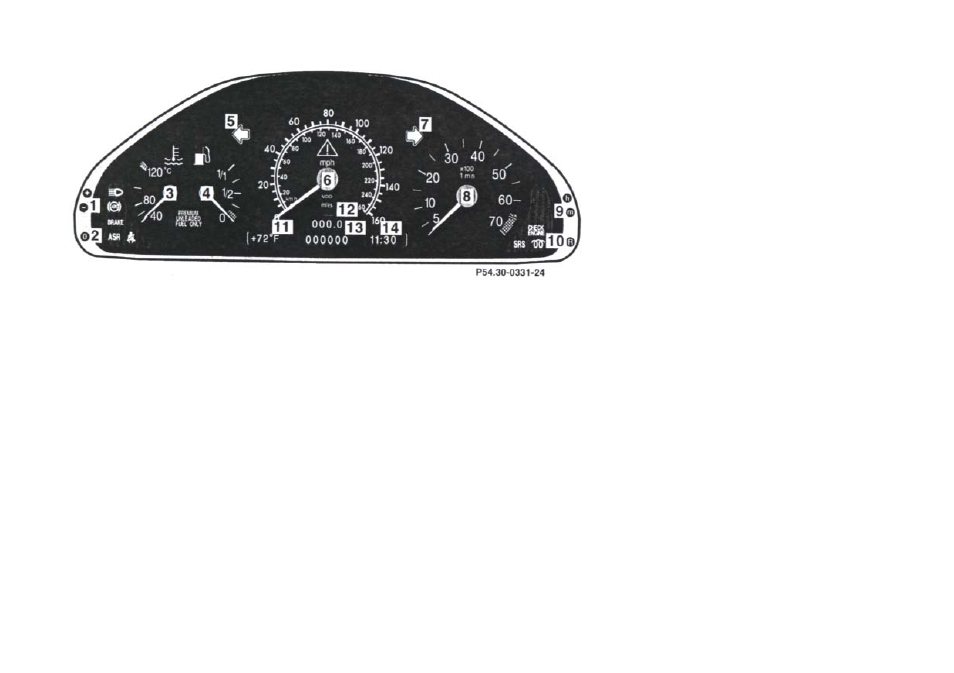

Instrument Cluster

1

Push buttons for intensity of

instrument lamps. See Index

2

Push button for resetting trip

odometer. See Index

3

Coolant temperature gauge.

See Index

4

Fuel gauge with reserve

warning lamp (yellow).

See Index

5

Left turn signal indicator lamp

(green)

6

Speedometer

7

Right turn signal indicator lamp

(green)

8

Tachometer. See Index

9

Push buttons for setting clock.

See Index

10

Push button for resetting

multifunction indicator.

See Index

11

Outside temperature indicator.

See Index

12

Trip odometer. See Index

13

Main odometer. See Index

14

Clock. See Index

or

11-14

Malfunction indicator
