Vermont Casting thru 3379 - Manual (Page 22)

22
Radiance Vent-Free Gas Heater
20004555
PILOT
ON
OFF
PILOT ADJ
LO HI
1a
1b
1c
2
4
6
7
13
3
4555
RUVSOD
PARTS
7/24/01 djt
23
8
16
17 18
5
10a,b
21
19
9
20
24a,b,
c,d
11a
11b
15
25
27 28
29
22
14
12a,b
30
4555
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.

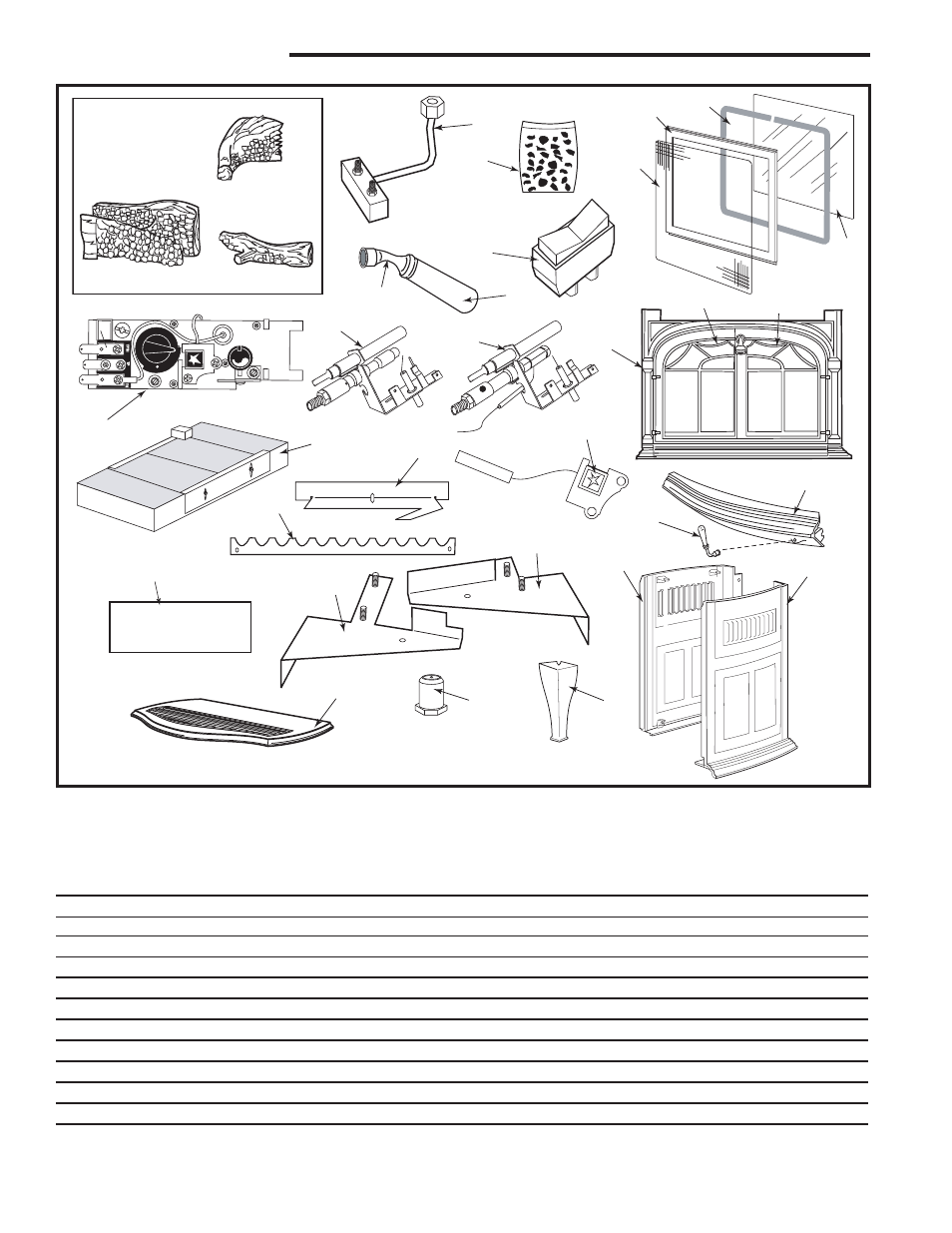

Radiance Vent Free Gas Heater (RUVSOD)
Models 3357, 3358, 3370 thru 3379
Ref. Description RUVSOD
1. Gas Logset - RUVSOD 20004561
1a. Right Rear Log RUVSOD 20004562
1b. Left Rear Log RUVSOD 20004563
1c. Right Log RUVSOD 20004564
2. Manifold Assembly 20003739
3. Lava Rocks Burner 57897
4. Screen, RUVSOD 20004554
5. Frame, Glass - RDV40 1409112
6. Gasket, Glass Med, Knit - RDV40 1203702
7. Trim ON/OFF Switch 53606
