Retractable hardtop
179
X
Open zipper
2
completely while the lug-
gage cover is closed.
X
Open luggage cover
1
.
Closed luggage cover
5

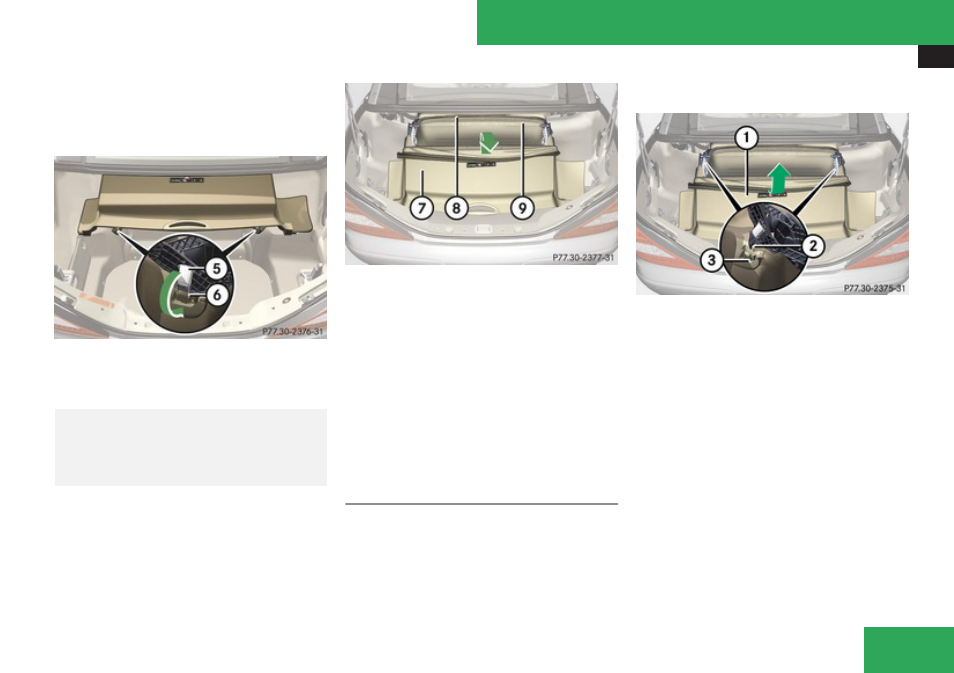

Tensioning clasp
6
Retainer spring
Only open the tensioning clasps when the
luggage cover is opened. You could other-
wise be injured.
X
Open tensioning clasps
5
by pulling them
downward.
X
Unhook retainer springs
6
from holders
and flip retainer springs all the way up.
7
Luggage cover
8
Cloth end
9
Cloth holder
X
Carefully tilt luggage cover
7
in direction
of arrow towards rear of trunk.
X
Roll up front end of cloth
8
in the trunk
towards the front and fasten it in place in
front of cloth holder
9
.
X
Remove luggage cover
7
from the trunk.
Installing
!
Before installing the luggage cover, make
sure that the cloth end is in front of the
cloth holder. Otherwise, it could be dam-
aged.
X
Carefully place luggage cover in trunk.
1
Luggage cover
2
Hook
3
Guide rail
X
Insert luggage cover
1
into guide rails
3
on both sides using hooks
2
.
X
Tilt luggage cover
1
forward in direction
of arrow.
X
Fold retainer springs of tensioning clasps
downward and clip them into holders on
both sides (
X
Close tensioning clasps on both sides by
pressing them upward.
X
Pull handle of luggage cover towards the
rear.
X
Clip eyelets onto side trim panels.
