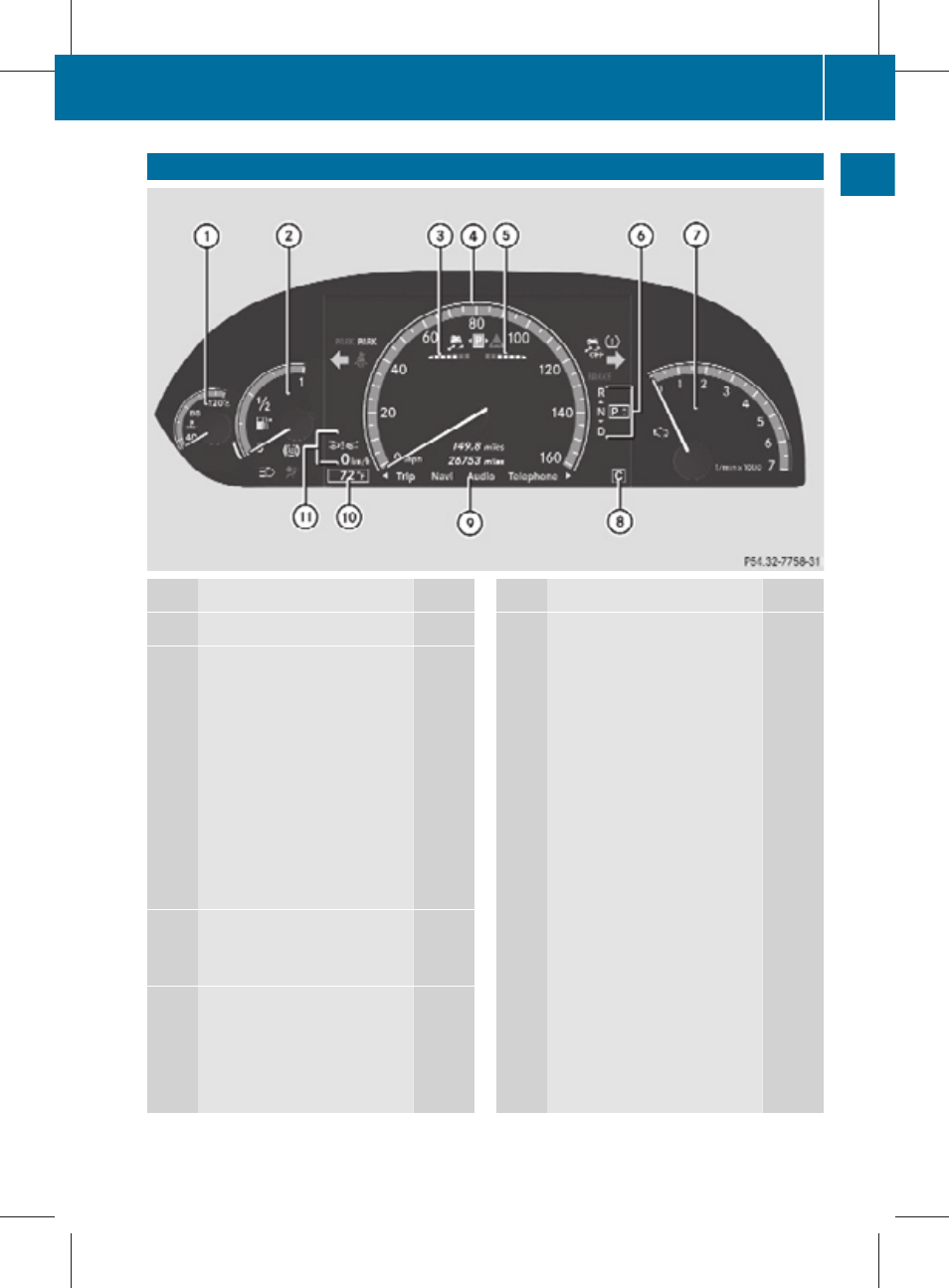

Instrument cluster
Function Page
: Coolant temperature gauge 300
; Fuel gauge with:
Fuel tank reserve warning
lamp
457
K High-beam headlamp
indicator lamp
277
! Antilock Brake
System (ABS) indicator
lamp
451
6 Supplemental
Restraint System (SRS)
indicator lamp
455
= Parktronic/Park Assist
warning indicator for left
front area
323,
326
? Multifunction display with:
Speedometer
F Electronic parking
brake warning or indicator
lamps, USA only
453
Function Page
! Electronic parking
brake warning or indicator
lamps, Canada only
453
$ Brake warning lamp,
USA only 453,
451
J Brake warning lamp,
Canada only 453,
451
7 Seat belt telltale 454
h Combination low tire
pressure/TPMS
malfunction telltale, USA
only
377,
458
h Low tire pressure
telltale, Canada only 377,
458
# Left turn signal
indicator lamp
! Right turn signal
indicator lamp
÷ ESC warning lamp
435
· Distance warning
lamp
1 457
1 Vehicles without DISTRONIC PLUS: Warning lamp without function. It illuminates when the ignition is on. It
should go out when the engine is running.
