X To close: check whether the seal is seated
correctly in cover :.
X
Insert both openings = at the rear of
cover : into the brackets on the fuse box.
The brackets on the fuse box must be com-
pletely visible in the two openings = on the
fuse box.
X Fold down cover :.
X Hook clamps ; into the fuse box and
close.
X
Close the hood.
Fuse box in the rear
i Observe the "Important safety notes" sec-
tion (
Y
page 562).
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.

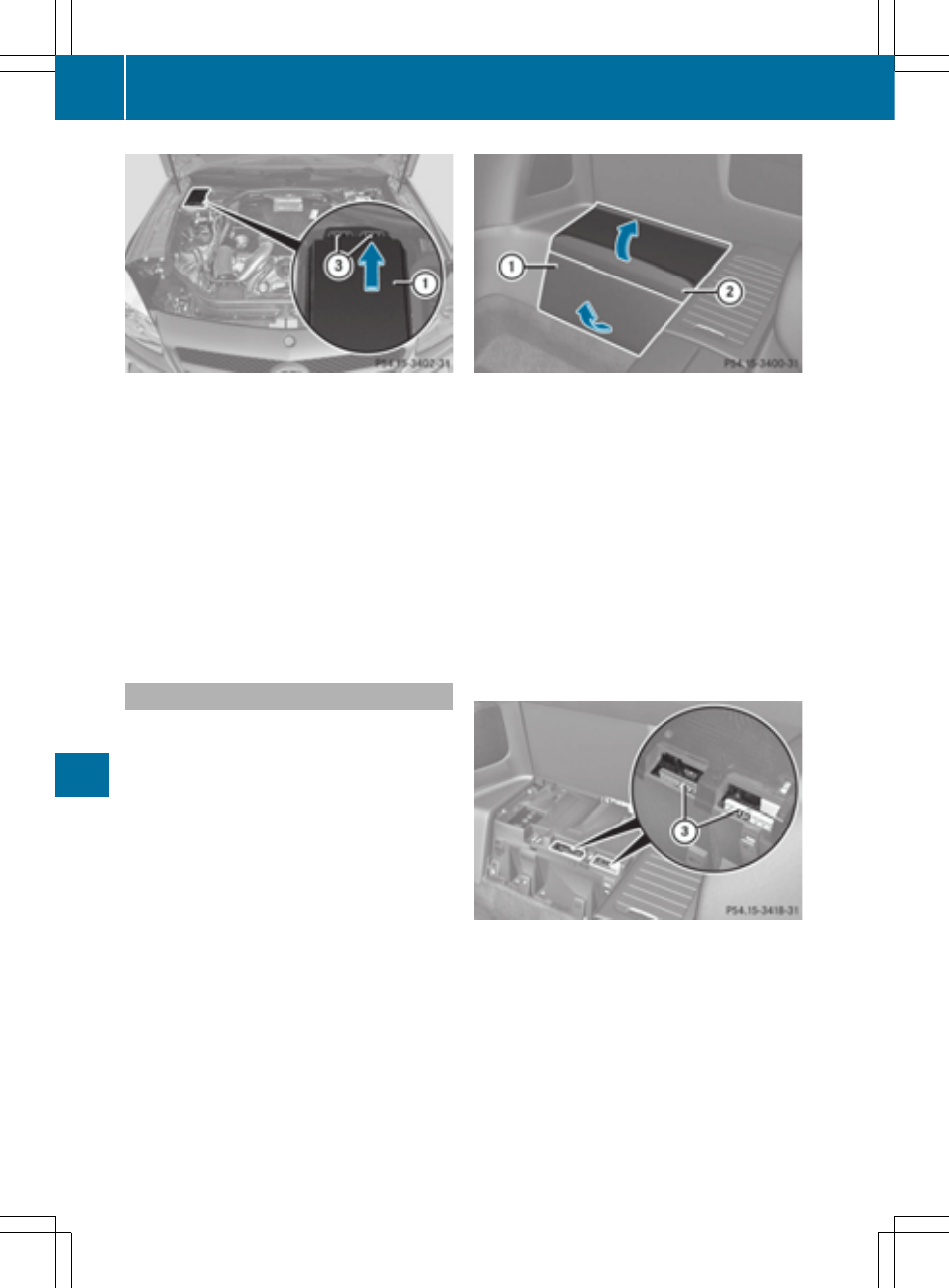

The fuse box in the rear is located on the right-hand
side when viewed in the direction of travel.
X To open: open the seat belt guide on the
right-hand seat and remove the seat belt
(
Y
page 111).
X
Move the right-hand front seat as far
forward as possible (
Y
page 111).
X Insert your fingers at the bottom of front
cover : between the cover and floor cov-
ering.
X Remove front cover : towards the front by
pulling it in the direction of the arrow.
X
Lift off top cover ; by pulling it in the
direction of the arrow.
Fuses = are accessible through the two
openings in the top of the fuse box.
X To close: insert the securing tags under-
neath top cover ; in the recesses at the
top of the fuse box.
X
Fold down top cover ; until it engages
audibly.
X Insert the securing tags underneath top
cover : in the recesses at the front of the
fuse box.
