Step 1.
Remove the station from the shipping container and check for any freight damage.
Identify the best location for installing the baby changing station. Hold the unit in place,
open the bed, and make sure that there is adequate operating clearance.
Step 2.
Select the wall area where the Baby
Changing Station will be installed. Measure
from the floor, at the center of the stud,
and mark the wall at 62
⅝” (1591 mm). Hold
the unit in place to verify alignment. Cut a
hole 22
⅛” (562 mm) wide, 35⅝” (905 mm)
high, and 4” (102 mm) deep in the wall

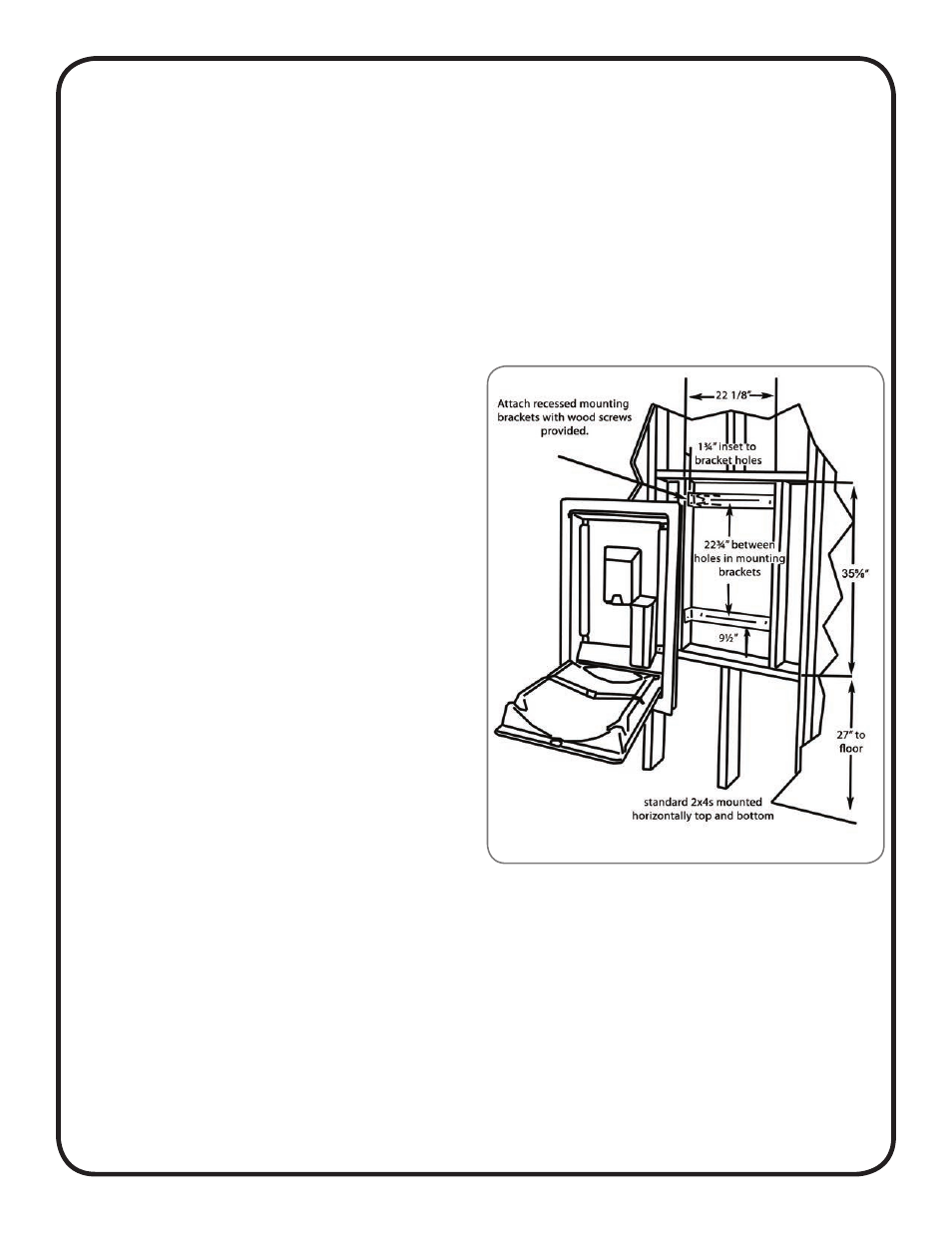

and construct mounting frame as shown in
Fig1.0. If the wall surface is masonry or tile
over wood studs, use caution when cutting
the hole for the unit.
Step 3.
The unit comes with two mounting brackets
that need to be secured to the mounting
frame as shown in drawing.
Step 4.
Use the capped nuts and washers to secure
the Baby Changing Station to the mounting
bracket. It may be necessary to adjust the
door to square by using a shim on the top right or left side of the unit before tightening
securely to the wall.
Step 5.
Clean work area and inspect unit to ensure it opens and closes smoothly. Replacement
parts and additional liners can be purchased from your local distributor or by calling
Koala at 303.539.8300.
Vertical Baby Changing Station Recessed Mounted
Model Numbers KB111-SSRE
INSTALLATION INSTRUCTIONS
