Step 4.

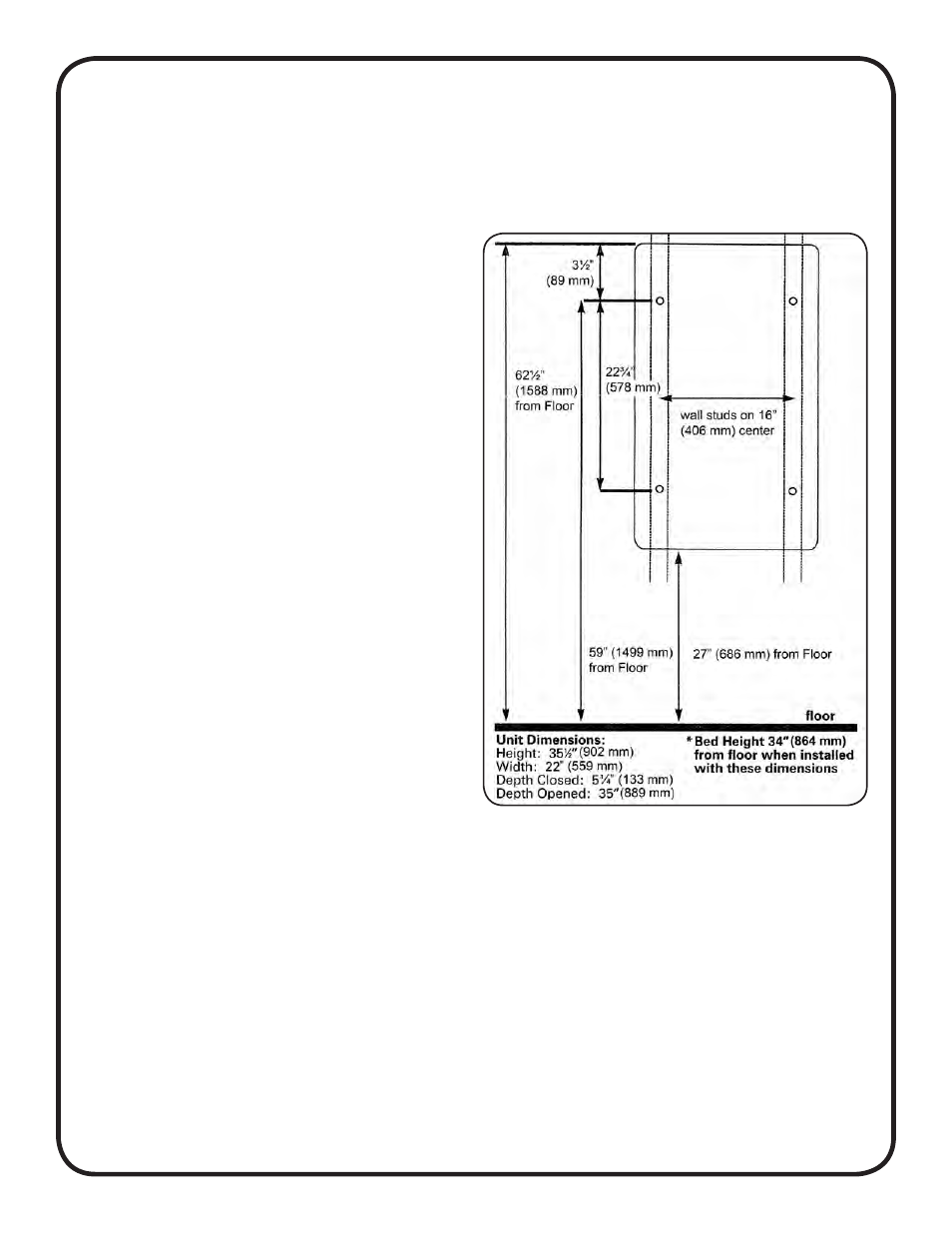

Find the stud where you will be
attaching the left side of the unit to the
wall. Measure up from the floor 59”
(1499 mm), at the center of the stud,
and mark the wall. Mark remaining holes
using a measuring tape to make sure
the holes are precisely positioned. Hold
unit in place to verify. Use four ¼” x 3”
(6 mm x 76 mm) panhead wood screws
with washers (supplied) when wall studs
are available.
If the wall surface is masonry or tile
over studs, use a 7/32” (6 mm) masonry
drill bit for the pilot hole until you hit
the stud. Change bit to 1/8” (3 mm)
regular drill bit. Use four ¼” x 3” (6 mm
x 76 mm) panhead wood screws with
washers (supplied).
If the wall has wood studs that are not
on 16” (406 mm) centers, has metal
studs or an underlying surface of
concrete block, drill with a ½” (13 mm)
masonry bit. (You may have to purchase toggles before installing.) You must
allow a minimum of inside wall space for toggles to turn depending on toggles
used. Insert and tighten toggles.
Step 5.
Position Koala sign (supplied) on the outside of the restroom door. Fill the built-in
dispenser with sanitary bed liners. Replacement parts and additional liners can
be purchased from your local distributor or by calling toll free 888.733.3456 or
303.539.8300 in the U.S.
