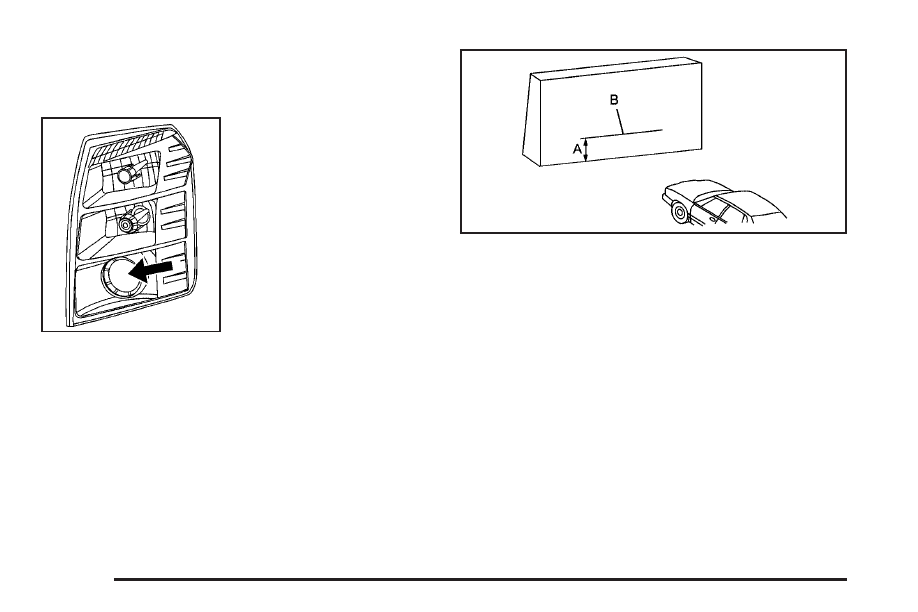

To adjust the vertical aim, do the following:
1. Open the hood. See Hood Release on
page 405 for more information.
2. Locate the center of
the projector lens of
the low-beam
headlamp.
3. Measure the distance from the ground to the
center of the projector lens of the low-beam
headlamp. Record the distance.
4. At the wall measure from the ground
upward (A) to the recorded distance
from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.
Notice: Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. This allows
only the beam of light from the headlamp
being adjusted to be seen on the flat surface.
