2. RELOCATING THE LOWER RADIATOR SUPPORTS

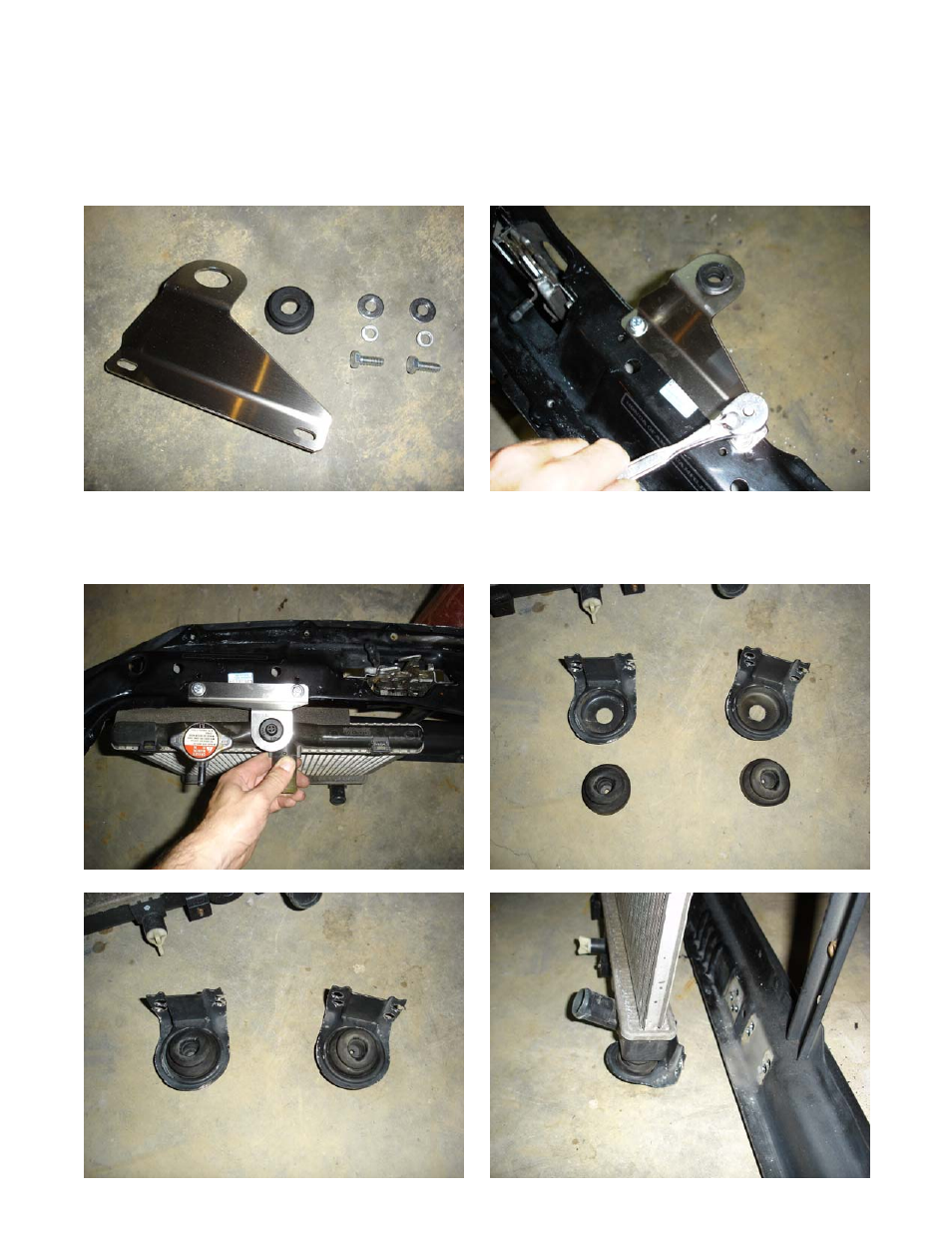

1. Remove the rubber grommet from the factory upper radiator support bracket

and install into the provided Karcepts bracket. Attach the Karcepts upper

radiator support bracket to the driver’s side (in a LHD vehicle) of your 1992-

1995 Civic using two M6 cap screws, M6 lock washers, and M6 flat washers.

2. Position the radiator of choice into the Karcepts upper radiator support bracket

and attach the previously removed lower radiator supports to the radiator with
the factory rubber grommets.
