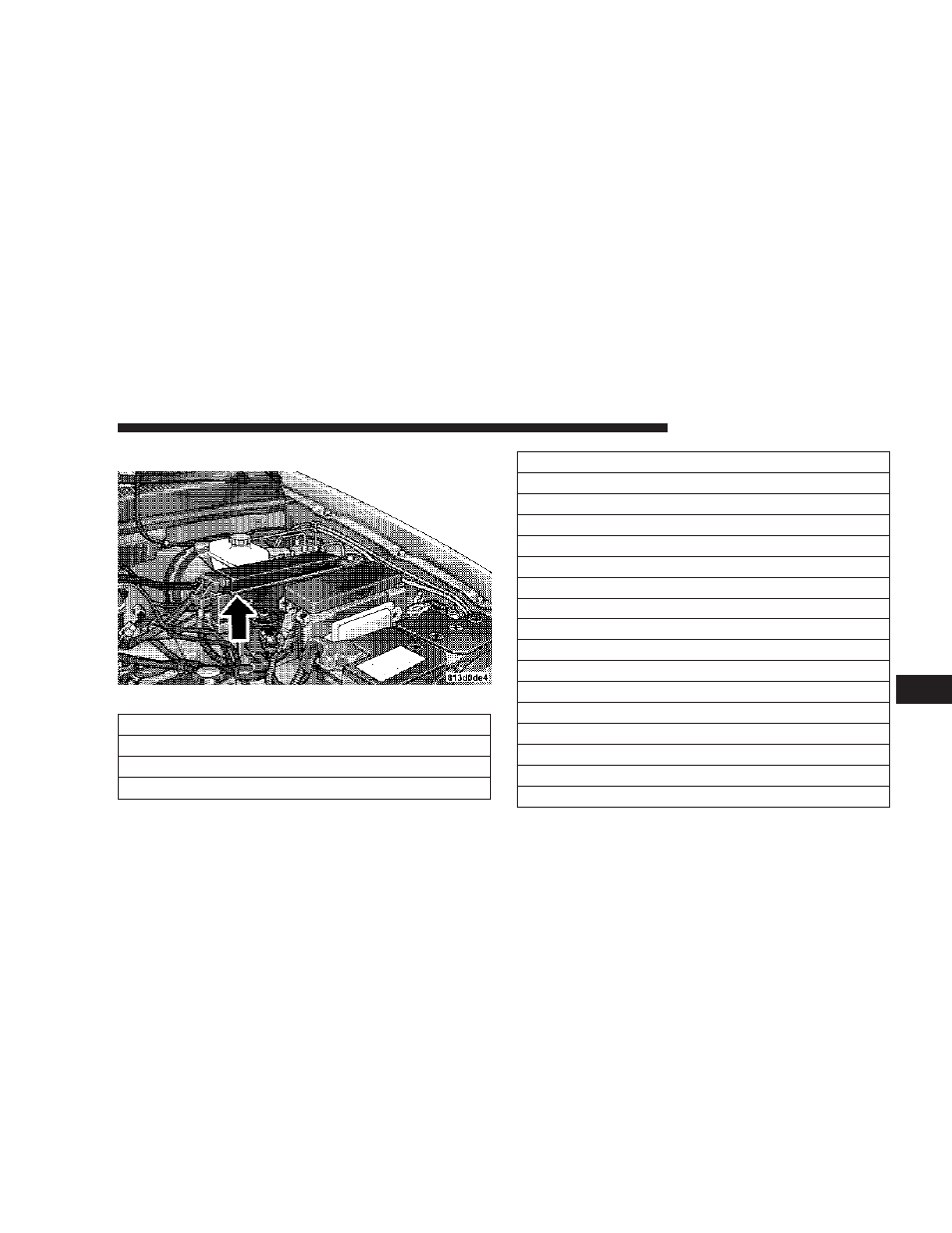

Underhood Fuses (Power Distribution Center)
Cavity Fuse/Color Description
1 40 Amp Green HVAC Blower
2 30 Amp Pink Power Outlets
3 30 Amp Pink Rr Wiper/Ign R/O
Cavity Fuse/Color Description
4 30 Amp Pink ABS Pump
5 50 Amp Red Cabin Htr 1 (Diesel Only)
6 50 Amp Red ASD
7 30 Amp Pink Rr HVAC (XK)
8 40 Amp Green Acc Delay/Seats
9 Spare
10 40 Amp Green Starter/JB Power
11 30 Amp Pink Cig Ltr/T-Tow
12 40 Amp Green EBL/Htd Mirror
13 40 Amp Green JB Power
14 50 Amp Red Cabin Htr 2 (Diesel Only)
15 50 Amp Red Cabin Htr 3 (Diesel Only)
16 25 Amp Natural IPM/Coils
17 Spare
18 20 Amp Yellow TCM/AC Clutch
19 20 Amp Yellow Ign Sw
Power Distribution Center
